Ublox NEO M8N High Precision GPS with Built in Compass for APM2 8 2 52 PIXHAWK
Click to see details
Ublox NEO M8N High Precision GPS with Built in Compass for APM2 8 2 52 PIXHAWK

Ublox NEO M8N High Precision GPS with Built-in Compass for APM2.8/ 2.52 & PIXHAWK Flight Controller

88 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 23.81 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Ublox NEO M8N High Precision GPS with Built-in Compass for APM2.8/ 2.52 & PIXHAWK Flight Control

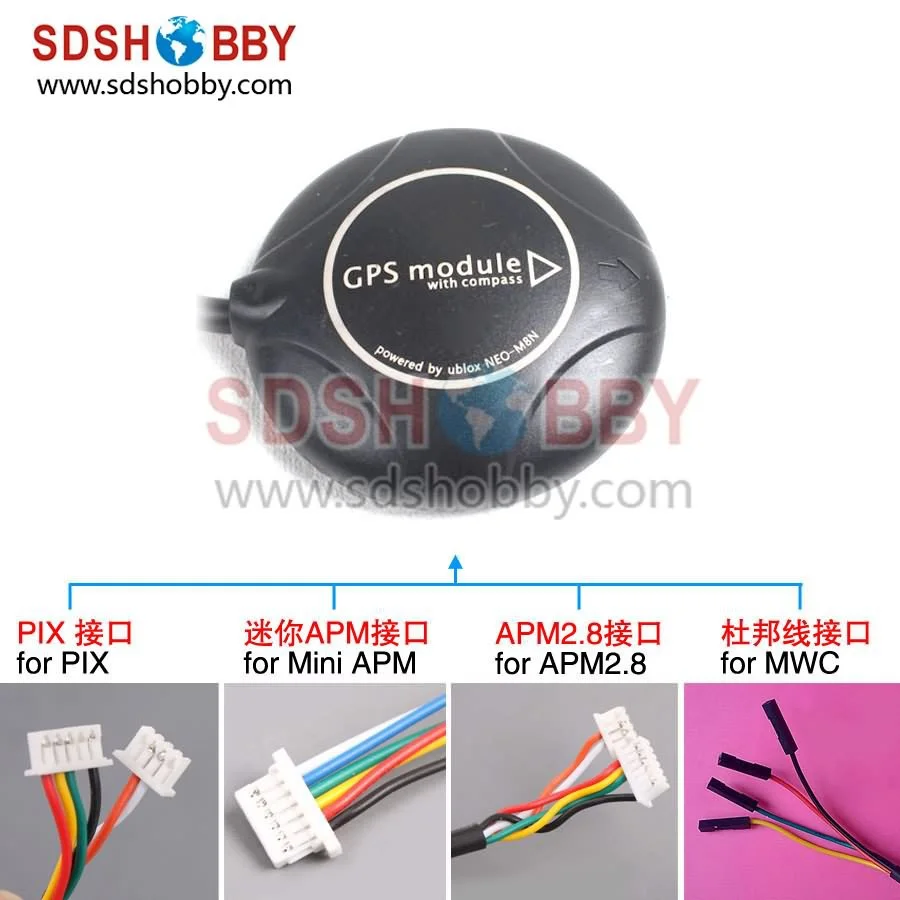

Application:

-APM2.8 ports: suitable for APM2.6 /2.72/ 2.8/3.1 flight controllers

-Mini ports: suitable for mini APM flight controller

-Dupont ports: suitable for MWC/Rabbit/ Pirate flight controllers

-PIX ports: suitable for PIXHAWK flight controllers


Introduction:

A new generation Ublox GPS NEO-M8N, with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.3-1.6 meters accuracy; support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.


Model Features:

– Quick satellite searching, only need 10s to find 6 satellites in open space.

– Built-in compass, refresh rate up to 18GHz.


Specifications:

Receiver type 72-channel u-blox M8 engine

GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1

SBAS L1 C/A: WAAS, EGNOS, MSAS

Galileo-ready E1B/C (NEO-M8N)

Nav. update rate1 Single GNSS: up to 18 HZ

Concurrent GNSS: up to 10 Hz

Position accuracy2 2.0 m CEP

Acquisition2 Cold starts: 26s

Aided starts: 2s

Reacquisition: 1.5s

Sensitivity2 Tracking & Nav.: –167dBm

Cold starts: –148dBm

Hot starts: –156dBm

Assistance AssistNow GNSS Online

AssistNow GNSS Offline (up to 35 days)3

AssistNow Autonomous (up to 6 days)

OMA SUPL & 3GPP compliant

Oscillator TCXO (NEO-M8N/Q),

Crystal (NEO-M8M)

RTC crystal Built-In

Noise figure On-chip LNA (NEO-M8M). Extra LNA forlowest noise figure (NEO-M8N/Q)

Anti jamming Active CW detection and removal. Extra onboard SAW band pass filter (NEO-M8N/Q)

Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)

Supported antennas Active and passive

Odometer Travelled distance

Data-logger for position, velocity, and time (NEO-M8N)
