Item Name: TS835 transmitter Antenna Gain: 2db Frequency: 5.8G Transmitting Power: 600mA Power Input: 7-28V (3S Lipo suggested) Video Format: NTSC / PAL Auto Working Current: 220mA at 12V Audio Bandwidth : 6.5M Video Bandwidth: 8M Weight: about 22g Dimension: 54x 32x 10mm(excluding antenna) Connector: transmitter module side RP-SMA jack, antenna RP-SMA plug Features: 40 channels choice to get the best transmitting quality. Compatible with A,B,E and F frequency bands Smaller size with lighter weight. 40 CH compatible to all FPV 5.8g receivers. 5.8G 600mW 32 Channels AV wireless FPV transmitter Super small 200mA current for 600mW wireless transmitter power. 600mW transmitter power assure 5KM distance in open area, 5-8 KM is available if work with the bigger gain antenna. Item Size: 54*32*8mm Net Weight: 36g Package Weight: 68g
RX RC832 Plus 48ch Specs:
The RC832 plus Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. Powering the receiver at the field is as easy as plugging in a 3 cell lipoly into the included prewired cable with mini JST. It just doesn’t get any simpler than this.
*For best range and video link stability we recommend using the Boscam 5.8GHz Cloud Spirit circular-polarized Antenna Set (SMA-RP) available below in the accessory’s tab
• 48 channels: Cover A, B, E,F,H bands and L bands
• Two switching buttons for the band and channel
• Two digits display for the band and channel
• Power off memory for last channel and band
• dual Independent video and audio signal outputs
Video format supported: NTSC/PAL
Antenna connection: RP-SMA, jack
Power input: 12V
Working current: 200mA max
Antenna impedance: 50Ω
Antenna gain: 2db
Rx sensitivity -90dBm
Video impedance: 75Ω
Video format: NTSC/PAL auto
Dimension: 80x 65 x15mm
FR1: 5865M 5845M 5825M 5805M 5785M 5765M 5745M 5725M FR2: 5733M 5752M 5771M 5790M 5809M 5828M 5847M 5866M FR3: 5705M 5685M 5665M 5645M 5885M 5905M 5925M 5945M FR4: 5740M 5760M 5780M 5800M 5820M 5840M 5860M 5880M FR5: 5658M 5695M 5732M 5769M 5806M 5843M 5880M 5917M FR6: 5362M 5399M 5436M 5473M 5510M 5547M 5584M 5621M

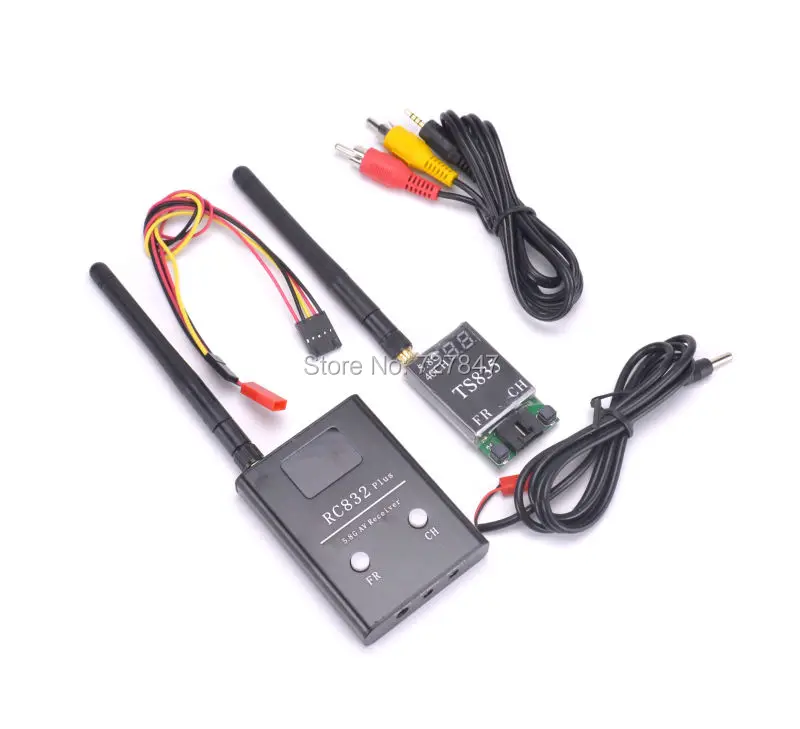

Package Included: 1 x TS835 transmitter 1 x RC832 plus Receiver 1 x Power cable for TS835 1 x power cable for RC832 plus
