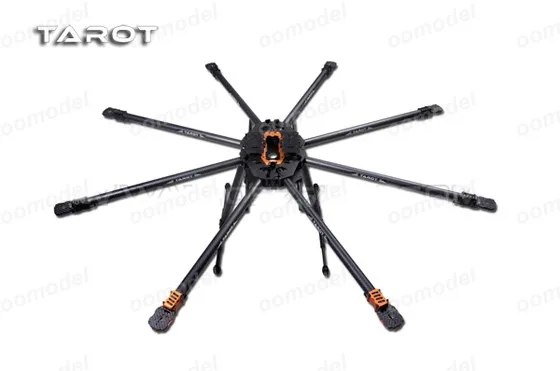

Tarot T15 Folding Full Carbon Fiber 8 axis Quad TL15T00
Tarot T15, the newest Folding Full Carbon Fiber 8 axis Quadcopter , will be released very soon from Tarot Factory, welcome to preorder and we will update this quad in time.
Tarot T15 Features:
- Widely used in UAV aerial photography , remote sensing, mapping, airborne reconnaissance , disaster monitoring, cable transmission line , and other agricultural plant protection for mobile high performance requirements, equipment containing material and requires a longer endurance of blank applications .
- Standard mount rod diameter Dia12MM, applicable to all mount rod center distance 155MM PTZ used. Standard GPS antenna quick folding seat , folding carry more convenient. Eight- standard high-current slip the lock gilded hub. Standard multi-axis folding tripod more convenient to carry .
Tarot T15 Parameter configuration requirements : Tube diameter : 25MM Wheelbase : 1020MM Rack Diameter : 1070MM Total height : 420CM Center Cover Size : 301 x 209 x 2.5MM Motor mounting pitch : 16MM/19MM/25MM/27MM equilateral triangle installation Rotor Size: 15-inch carbon fiber propeller TL2831/TL2813/TL2812 Brushless Motor : 4114/320KV multiaxial brushless motor TL100B08-02/TL100B08-01 Battery Specifications : 6S 22.2V 10000-15000MHA Brushless ESC:35-40A Standard mount rod diameter Dia12MM, applicable to all mount rod center distance 155MM PTZ Use Effective allocation of the whole weight : 8KG Folding 8 axis rack Weight : 1.95KG
Tarot T15 Specifications:
T15/T18 quick release battery holder TL15T01 x 2 T15/T18 seat post quick release aluminum group TL15T02 x 2 T15/T18 metal reinforcing plate TL15T03 x 1 T15 folding frame full carbon tubes TL15T04 x 4 Tarot T15 folding frame full carbon tubes TL15T05 x 4 Tarot T15/T18 eight fold axis bracket TL15T06 x 2 T15 folded eight shaft cover TL15T07 x 1 GPS folding bracket TL15T08 x 1 T810/T960 six-axis folding tripod TL96013 x 1 Multi-axis limit gasket / four loaded TL96021 x 4 T810/T960 head mount kit TL96014 x 1 Eight- hub group TL100B14 x 1 Multiaxial metal locking clip holder TL9605 x 8 New Dia25MM motor mount / Orange TL9602 x 2 New Dia25MM Motor Mount / Black TL9603 x 6 Titanium diamond file x 1 Water sticker group x 8 Colored sticker set point x 2 Magic sticky x 2 Manual x 1 Spare screw pack x 1 Packaged x 1
Tarot T15 Related Part Number: M4 screws TL9606 aluminum butterfly M3 head nut / Gold TL100A02-02 Dia25MM Carbon single battery holder group TL80B04 Dia25MM Carbon dual battery holder group TL80B05 Tarot T810/T960 under -mount dual battery holder TL96018 Tarot battery shockproof paste TL2770 Flight control board spare screws TL2778-01 5-Series multi-rotor brushless motor TL100B08 Hanging next T810/T960 battery holder group TL96015 Side panels, hood edge protector TL2768
