Tarot 2 Axis Brushless Gimbal Camera mount Gyro ZYX22 for Gopro 3 Aerial Photography Multicopter FPV
Click to see details
Tarot 2 Axis Brushless Gimbal Camera mount Gyro ZYX22 for Gopro 3 Aerial Photography Multicopter FPV

Tarot 2-Axis Brushless Gimbal Camera mount Gyro ZYX22 for Gopro 3 Aerial Photography Multicopter FPV F06844

60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 38.95 / piece
Sale Price:  $ 33.50 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Tarot 2-Axis Brushless Gimbal Gyro ZYX22 Gyroscope for Gopro 3 Aerial Photography Quadcopter Multicopter FPV

Descriptions:
– Suitable for GOPRO brushless Camera mount TL68A08 (SKU:25824) brushless gimbal or other similar products, used in entertainment, film and television photography, advertising model aircraft photography and so on many fields

Features:
– Support the GOPRO Hero3 video aux output
– Support the power supply voltage reverse connection protection and voltage compensation
– Support for motor drive side short circuit protection
– Support initial pitch angle
– Support the sensitivity parameters adjustment and the software 3 d posture display
– Support the rocker rate model and location
– Support the receiver: conventional receiver S – BUS receiver, DSM2 DSMJ/DSMX receiver
– Support remote control equipment: PPM/PCM / 2.4 G
– Operating voltage: 7.4 V ~ 14.8 V DC (recommended 12 V, three lithium electricity
– Work current :200 ma – 500 ma (related to the power supply voltage and motor power
– Working environment temperature: 15-65C
– Processor: dual high-speed 32-bit ARM core processor
– Sensors: three MEMS gyroscope rotor and rotor MEMS accelerometer
– Maximum angular rate: 2000 deg/ SEC
– Maximum acceleration: 16 g
– Control frequency: 2000 hz
– Motor drive frequency: 20 KHZ (noiseless smooth drive)
– Accuracy:0.1 deg
– Control range: – 45 ~ 45 (roll), – 135 ~ 90 (pitch)
– Gesture decoding algorithm: dedicated to brushless motor driven yuntai decoupling EKF algorithm
– Applicable filming equipment: GOPRO Hero3

Specification:
– Gimbal tuning parameter interface: a serial port module connected to the computer through the USB, used in gimbal main controller tuning parameters and status monitoring
– Motor drive tuning parameter interface: a serial port module connected to the computer through the USB, is used to adjust the number of motor driver module,power voltage and current monitoring

Receiver steering gear output interface
– R: common receiver roll inputs
– T: common receiver pitch input
– C: common receiver model input (rocker arm Angle mode or speed)
– S: S – BUS receiver channel or photo input channel
– P: take pictures steering gear output (infrared photo module can be attached)
– + 5 v output, – : power supply
– Satellite interface: used to connect to the satellite receiver
– Roll motor and pitch interface: used to connect the motor
– Sensor interface: used to connect to sensor

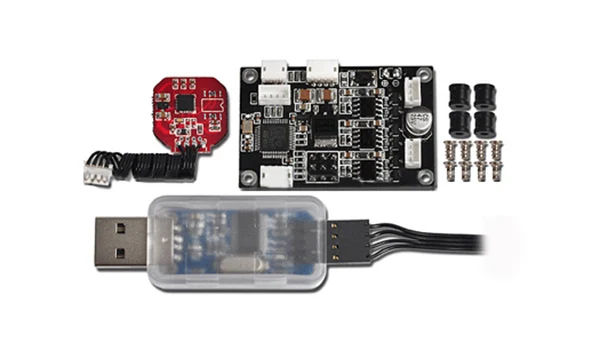

Package including:
– ZYX3 rotor gyroscope quad ZYX07 x 1
– GOPRO two axis gyro sensor x1
– GOPRO gimbal two axis gyroscope main controllerx 1
– 4.5x 4.5 MM insulation spacer x 4
– 2×3 mm round head cross screw x8
