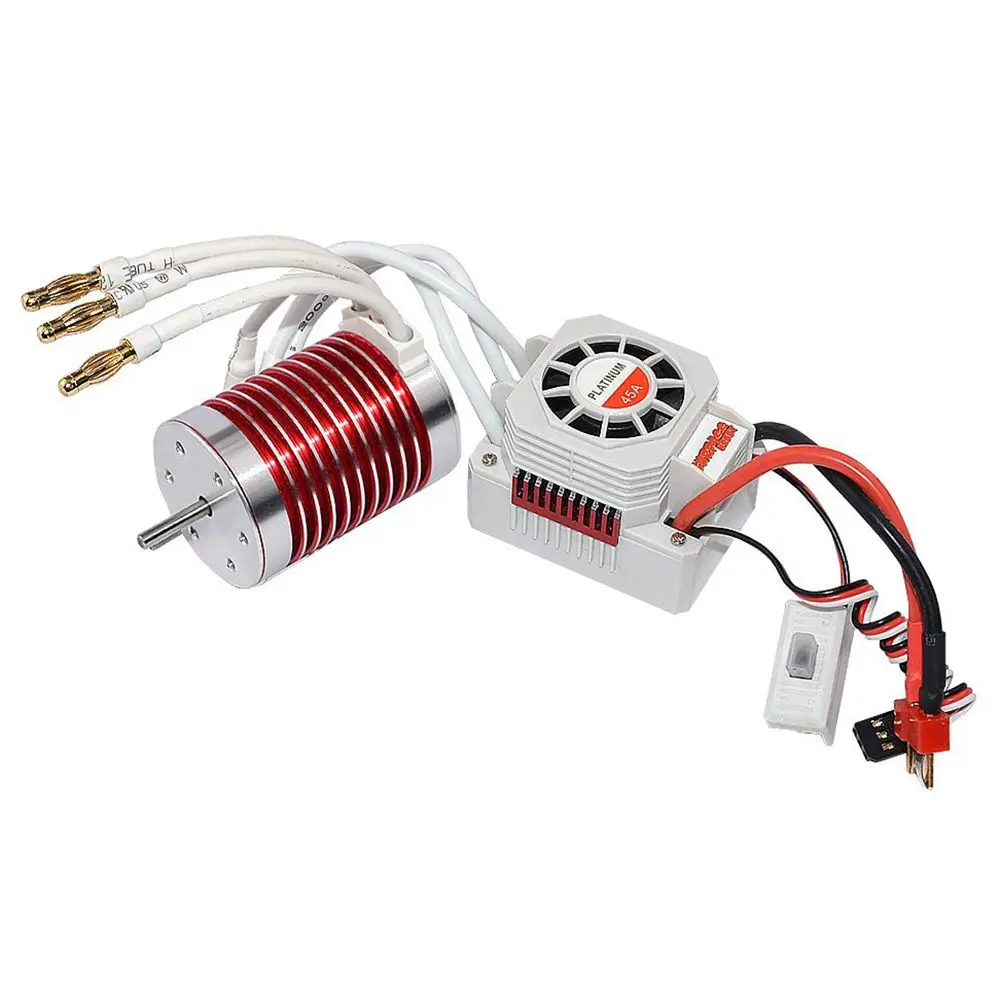

The ESC is built-in 5.8V/3A BEC which can power receiver or other suitable equipment;The set supports 2-3s LiPo battery or 4-9 cells NiMH battery;There is no need to set throttle range before usage; A good choice for your RC car;Waterproof, suitable for various condition races;Specially designed for 1/10 1/12 RC car.
4 pole 12 slot High-torque motor design;CNC Machined 6061 T6 billet aluminum heatsink can;High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings;Precision balanced rotor, smoothness for best reliability and maximum RPM;Stator – super thin (0.35mm) Laminations
Removable/replaceable rotor;Multiple protection features of the ESC: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throttle signal loss protection / motor blocked protection.
The ESC is easily programmed and compatible with specified pocket-sized program card.
Brand name: SURPASS HOBBY
Material: Aluminum & PC
Max voltage: Less than13V
Max Amps: 60A
Max RPM: 50000
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
Mounting Hole: M3
Electronic Speed Controller Specifications:
Cont. Current: 45A
Burst Current: 240A
Battery: 2-3 Cells Lipo / 4-9 Cells NiMh
BEC Output: 5.8V/3A (Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
For 2s Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with the KV Less Than 5600
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV Less Than 3900
For 3s Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV Less Than 3800
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV Less Than 2700
Size: 50.8 x 38.5 x 3
