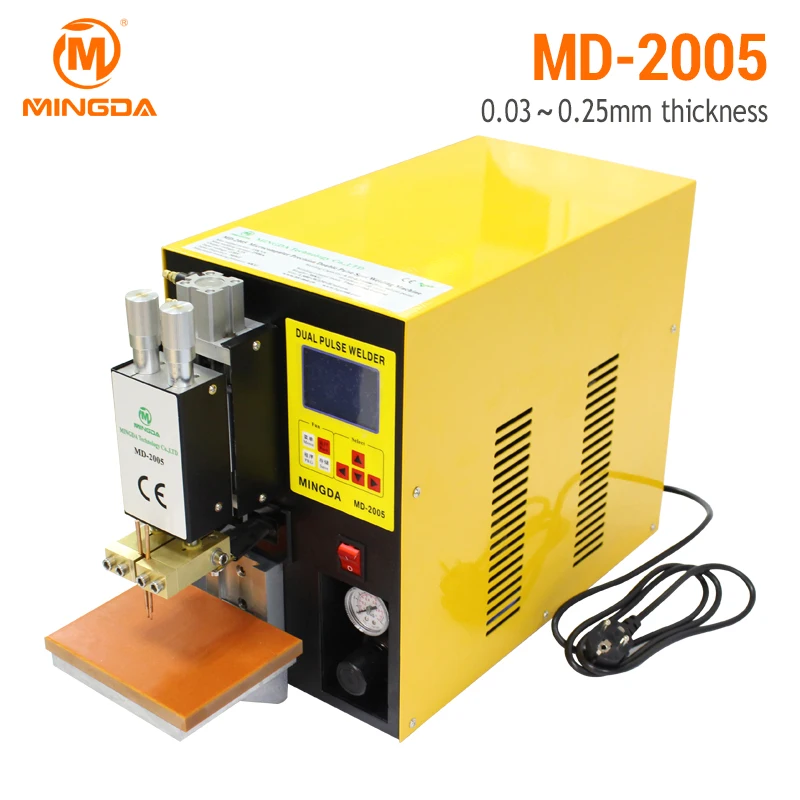

Spot Welder Machine High Quality DC 110/220V Battery Welding Machine MINGDA MD-2005 MAX 25KVA Spot Welding Machine

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 1380.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Welcome to MINGDA Professional Store

We can provide:

  • 100% brand new
  • Original Patent High Quality Battery Welding Machine
  • Manufacture Direct Sale No need to pay extra agent price gap

Attention Detail From Us:

  • One year warranty for machine, this is our promise to machine quality.
  • ONE-TO-ONE Oversea technical support available

The Youtube working video link:

Technical parameters of Batery Spot Welder

Number

Item

Specification

1

Welding current

MD-2005

2

Control mode

IGBT control (polarity switch)

3

Secondary welding current

2500A/3000A

4

Welding energy

0-100% adjustable

5

Pulse control accuracy

0.1ms

6

Preweld pulse width

0-2ms

7

Welding pulse width

0-4ms

8

Max output power

25KVA/30KVA

9

Input voltage

AC 220V±10% 50Hz±2Hz

10

Wooden packing Weight

50Kg

11

Out dimension

L400mm X W210mm X H300mm

Detail Photos of MD-2005 Battery Spot Welder ( this is the new vision for this machine )

Featurer of Battery Spot Welder

1. High speed and high precision micro processor (MCU) control, provide highly stable repeat welding.

2. High speed welding: quick start with high speed polarity switch reduces the temperature effect so that keep the welding surface clean and beauty.

3. Polarity switching: inhibition asymmetric effect makes the two point weld strength uniform and extend the electrode life.

4. DC output: welding current is pulsating direct current (waveness is small), no AC zero discontinuous heating workpiece shortcomings, heat concentration and improve the welding thermal efficiency, it is especially suitable for welding the non-ferrous metal materials and some difficult welding materials, welding process is stable, welding quality improved significantly. At the same time, the electrode life get extended.

5. Fast response. Power on time control cycle is 1 ms , 20 times than 20ms of common AC battery welder

6. Blue 19264 LCD screen display, graphical display the current working status, friendly working interface, welding pulse graphic display function to improve the convenience debugging observation.

7. Compatible with mechanical and pneumatic welding head.

8. Double pulse reduce welding spatter, effectively improve the welding quality.

9. Two different welding methods (1) general spot welding; (2) continuous welding.

10. The built-in welding counter, can do all its solder joints.

11. Data storage using EEPROM, no battery life problem, each operation all returned to welding procedure of the last use.

12. Compatible have welding pressure switch of the welding head and no welding pressure switch of the welding head.

Preloading time and holding pressure time from 0 to 2.55 seconds continuous adjustable.

Discharge switch can use mechanical or photoelectric switch.

Frankly Speaking, all we want is spend the same cost and get high quality and perfect service experience, thats why we insist in supply top quality product to our clients and also pay more attention to our clients using experience. If you have any interest Please just to try and give us a chance to contact! The service experience decide by your side and to decision your order. Thank you!

The detail structure show

Product application: high-end mobile phone batteries, power battery, digital battery, mobile power battery, nickel metal hydride, nickel cadmium battery, battery cap welding etc.

Suitable Battery (18650 battery , Lithium Ion ) And Nickel Plate

( If you need nickel plate , Pls kindly tell the width and thickness of nickel plate , then we also can provide this for you , Thank you )

Package of MD-2005 Battery Spot Welder ( Professional Wooden Standard Export Package )

1: One set machine

2: English Manual of this machine

3: 3 pairs welding needles

4: Foot pedal

5: Tool kits (connect air compressor tube , the welding desk and so on )

Packing show: International standard wooden box package, do not worry to broken.
