Skyzone SKY02S V 3D 5 8G 40CH FPV Goggles With Transmitter Camera Head Tracking HDMI DVR
Click to see details
Skyzone SKY02S V 3D 5 8G 40CH FPV Goggles With Transmitter Camera Head Tracking HDMI DVR

Skyzone SKY02S V+ 3D 5.8G 40CH FPV Goggles With Transmitter Camera Head Tracking HDMI DVR

60 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 485.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller


SKY02S 3D FPV Goggles Binocular Display: FOV: 30 degree(Diagonal) Resolution: 854×480(WVGA).1,229,760 color sub-pixels Brightness: 350cd/㎡ Interpupillary Distance(IPD): 59-69MM Adjustable Sensitivity: -90dBm±1dBm Antenna: SMA 50ohm Front Camera:FOV: 60 degree(Diagonal) Resolution:640×480(VGA) Focal Length: f=4.0mm F/NO:=2.8 Head Tracker: Sensor: Magnetic,Inertial and gyro Output: PPM 8CH, Optional 5‐6CH,5‐7CH,5‐8CH,6‐7CH,6‐8CH,7‐8CH Micro SD:Support to 32GB Compression:MJPEG, 30fps, AVI Picture: JPEG Record Rate:6Mbps Video Standard: NTSC/PAL Video output level:1.0Vp‐p Typ. / 75ohm Audio output level:1.0Vp‐p Typ. / 10Kohm Div. AV OUT(3.5mm4P): Diversity Video, Audio output EAR OUT(3.5mm3P):Stereo 16Ω/150mW AV IN(3.5mm4P):Video ,Audio input HDMI IN(Micro HDMI/D‐Type): HDMI 1.4 specification 1920x1080p60, 1920x1080p50, 1920x1080i60, 1920x1080i50, 1280x720p60, 1280x720p50, 576p, 576i, 480p, 480i, PC Format(Not all) DC IN:DC 7~26V/ 1A Power Consumption:12V input, 5.4W Dimensions:168(L)X92.5(W)X41(H)MM Operating Temperature:0 °~+60 SCAM302 Camera: FOV:120 degree(Diagonal) F/NO:=2.3 Interpupillary Distance(IPD):40mm Resolution:720×576 Video Standard: PAL Video Output Level:1.0Vp-p Typ./75ohm Power Supply:DC5V/0.5A Power Consumption:1.6W Dimension:56.5x 17.8x14mm Weight:12g Operating Temp.: 0°~+60° STX202 Transmitter: Wideband FM Modulate Video Standard:NTSC/PAL RF Output Impedance:50ohm RF Output Power:22-24dBm(Typ.23dBm) Video Input Level:1.0Vp-p Typ./75ohm Video Band Width:8.0MHz Audio Input Level:2.0Vp-p Typ./10Kohm Audio Carrier Frequency: 6.5MHz Power Consumption:5V input 5.5W Dimension:38x 32×8.9mm Weight:14g Operating Temp.: 0°~+70° Preset Frequency: CH1 5733M/5771M, CH2 5752M/5790M, CH3 5809M/5847M, CH4 5828M/5866M
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725

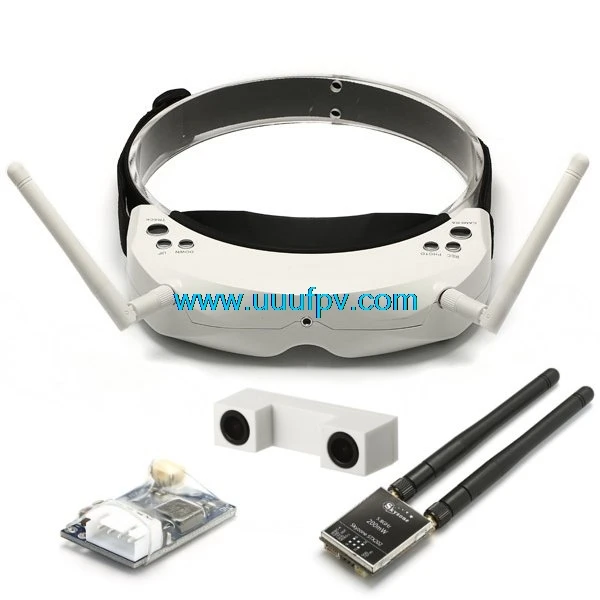

Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866 Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945 Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880 Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917 RF Mode: 3D Mode, only available under the RF mode. 2D Mode Features: Front Camera, more convenience Image Adjustment, can set the brightness, contrast, hue, sharpness etc. With Head Tracking, pan and tilt With DVR function, suggest to format the SD card the first time you use Playback function HDMI Input AV Output/Input Package Included: 1 x Goggles 1 x SCAM302 Camera 1 x STX202 Transmitter 1 x Futaba Data Cable 1 x JR Data Cable 1 x WFLY Data Cable 4 x 5.8G 2dBi Antenna 1 x 5P Camera Cable 1 x 3P TX Remote Control Cable 1 x AV Cable 1 x Power Cable 1 x 2P TX Power Cable

Average Star Rating:
0 out of 5 (0 Ratings)
Name Rating Feedback
Shipping Company Shipping Cost Estimated Delivery Time
DHL 3 - 7 days
UPS Expedited 3 - 7 days
EMS 5 - 14 days
Post Air Mail Free Shipping 15 - 45 days
Return Policy If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.

N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
