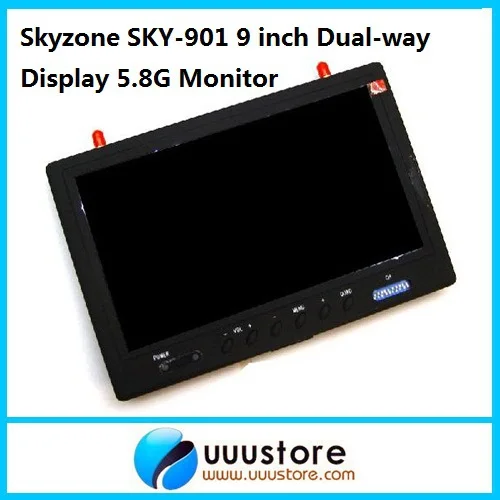

SkyZone Sky-901 Boscam RC901 9″ FPV PIP 2CH QUAD LCD Screen Monitor Build-in 5.8g 32CH Receiver
1. Screen size:9”
2. Screen type: TFT LCD Screen/long life, LED backlight
3. Resolution: 800*480
4. Brightness: 450cd/m2
5. Contrast: 500:1
6. View Angle: 140/120degree (Horizontal/Vertical)
7. Working Voltage: DV 12V(center positive) or 11.1V Li-battery
8. Power Consumption: < 8w
9. Size: 180mm x 120mm x 23mm
10. Antenna Connection: SMA
11. Built-in 5.8Ghz Dual receiver and with Dual split display and PIP
12. Built-in 2CH AV input and 1CH AV output
13. Support 9 languages menu selection
14. Working temperature: -10~+ 65
1. Built-in Dual 5.8GhzReceiver that can receive 2 Channels at the same time
2. AV Monitor with Dual AV inputs
3. Dual split display, it can support PIP (picture-in-picture) feature
4. Not affect by 2.4GHz R/C Radios
5. Small, light weight, durable
6. 4 Bands and total 32 Channels
Band Selection and Resulting Frequencies
· CH1: 5705MHz CH1: 5733MHz CH1: 5865MHz CH1: 5740MHz
· CH2: 5685MHz CH2: 5752MHz CH2: 5845MHz CH2: 5760MHz
· CH3: 5665MHz CH3: 5771MHz CH3: 5825MHz CH3: 5780MHz
· CH4: 5645MHz CH4: 5790MHz CH4: 5805MHz CH4: 5800MHz
· CH5: 5885MHz CH5: 5809MHz CH5: 5785MHz CH5: 5820MHz
· CH6: 5905MHz CH6: 5828MHz CH6: 5765MHz CH6: 5840MHz
· CH7: 5925MHz CH7: 5847MHz CH7: 5745MHz CH7: 5860MHz
· CH8: 5945MHz CH8: 5866MHz CH8: 5725MHz CH8: 5860MHz
1. Screw the antennas and then power the LCD screen. Power LED is on and signals from RX1 and RX2 are dual split displayed. (See Figure1).
2. Plug AV cable to AV IN1, signals from RF1 will be closed and the external AV signals will be displayed on the screen. So does the AV IN2.
3. Plug AV cable to AV OUT and the other end to a monitor that the signals will be be displayed on this monitor at the same time.
4. Buttons (See Figure1)
VOL-: Turn down Volume
VOL+: Turn down Volume
MENU: Setup-Brightness, Contrast, Color
-DownMove down after enter menu setup, +Plus, Move up.
QUAD: Press QUAD once, Switch to PIP, CH1 is Big picture and CH2 is small. Press twice, CH2 Big and CH1 small. Press 3 times, CH1 is Full Screen, 4times,CH2 is Full Screen.
1 x SkyZone SKY-901 monitor
1 x Sunshade
1 x Video connection cable
1 x Power input cable
1 x 2db Antenna
