Hitec 645MG HS645 645 MG HS 645 HS-645MG Steering Servo

Products Description:

FEATURES:

  • Three metal gears.
  • Dual ball bearings.
  • Metal 1st Gear.
  • Four adjustable splined horns.
  • For use with .60 size helicopters, glow or electric cars and boats.

    INCLUDES:

  • One ultra torque servo with 11.5″ connector wire.
  • One white small X-shaped servo horn.
  • One red Large X-shaped servo horn.
  • One white adjustable servo horn.
  • One white offset straight servo horn.
  • Four 2 x 14mm mounting screws
  • Four brass eyelets
  • Four black rubber vibration isolators.

SPECS:

Speed: 0.24 sec/60° at 4.8V
0.20 sec/60° at 6.0V
Torque: 106.93 oz-in at 4.8V (7.7 kg-cm)
133.31 oz-in at 6.0V (9.6 kg-cm)

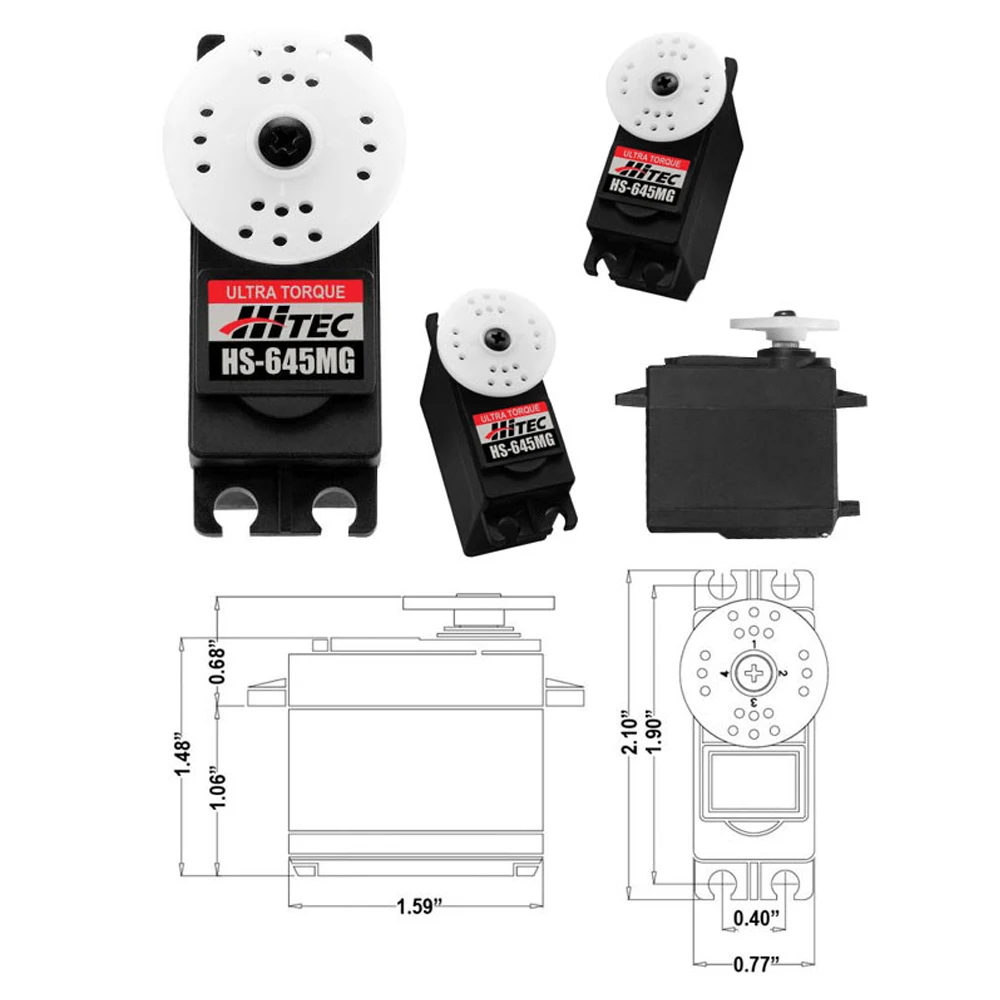

Length: 1.59″ (40.6mm)
Width: 0.77″ (19.8mm)
Height: 1.48″ (37.8mm)
Weight: 2.11oz (60g)

Control System:+Pulse Width Control 1500usec Neutral
Required Pulse:3-5 Volt Peak to Peak Square Wave
Operating Voltage:4.8-6.0 Volts
Operating Temperature Range:-20 to +60 Degree C
Operating Speed (4.8V):0.24sec/60° at no load
Operating Speed (6.0V):0.20sec/60° at no load
Stall Torque (4.8V):106.93 oz/in. (7.7kg.cm)
Stall Torque (6.0V):133.31 oz/in. (9.6kg.cm)
Operating Angle:45 Deg. one side pulse traveling 400usec
360 Modifiable:Yes
Direction:Clockwise/Pulse Traveling 1500 to 1900usec
Current Drain (4.8V):8.8mA/idle and 350mA no load operating
Current Drain (6.0V):9.1mA/idle and 450mA no load operating
Dead Band Width:8usec
Motor Type:3 Pole Ferrite
Potentiometer Drive:Indirect Drive
Bearing Type:Dual Ball Bearing
Gear Type:3 Metal Gears and 1 Resin Metal Gear
Connector Wire Length:11.81″ (300mm)
Dimensions:1.59″ x 0.77″x 1.48″ (40.6 x 19.8 x 37.8mm)
Weight:1.94oz. (55.2g)
