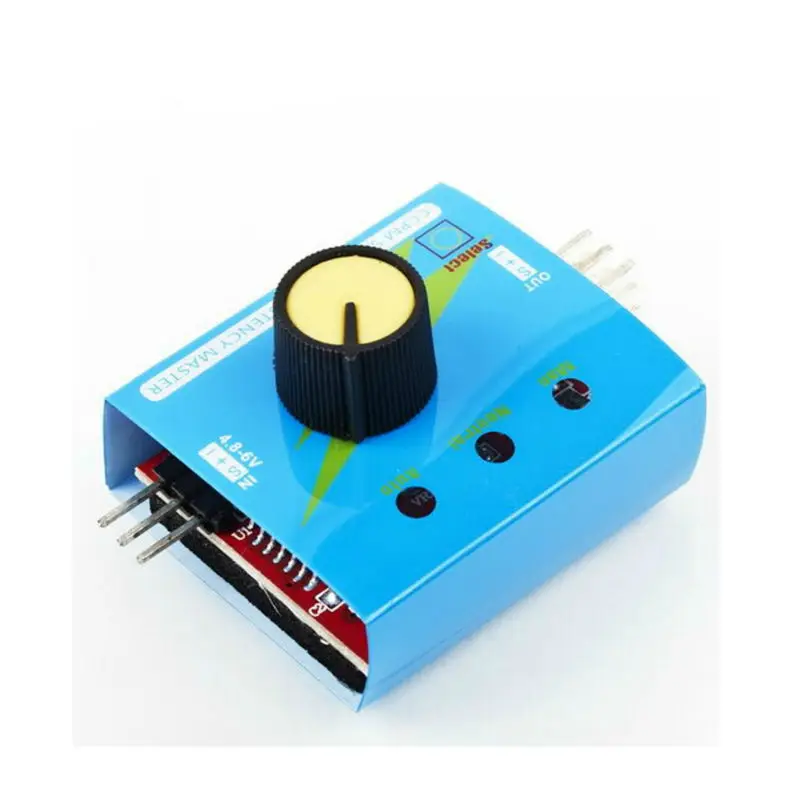

RCmall 3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker FS90R Servo
Click to see details
RCmall 3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker FS90R Servo

RCmall 3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker FS90R Servo 9g Servo FZ0011

96 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 1.49 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

RCmall 3CH Digital Multi Servo Tester ECS RC Consistency CCMP Master Speed Controler Checker FS90R Servo 9G Servo FZ0011

Description of Servo Tester

Output: ≤15mA (5.0)

Input: DC 4.2-6.0v Output signal: 1.5ms ± 0.5ms Size: 46 * 32 * 17MM Weight: 8g Adjustment modes: manual, automatic, and the median. Features: can be easily detected and set the dummy bit server, jitter and median. Can be connected to two servos or ESC; MCU control, good stability, high accuracy. Turn the knob, steering can be detected. If you connect the electronic governor (brush or brushless available), you can get rid of the remote control device for manual control, for testing tone Speed ​​or motor performance is very practical, no longer cumbersome connecting the remote control and the receiver. It is equivalent to a “hand Dynamic Receiver “feature, playing rudder knob analog transmitters Note: This tester can test more than 55 grams of servos Description of FR90S Servo: Feetech FS90R 360 Degree Continuous Rotation Micro RC Servo 6V 1.5KG Dimensions:23.2 × 12.5 × 22 mm Weight:9 g Operating Speed : 110RPM (4.8V) 130RPM (6V) Stall Torque : 1.3kg.cm/18.09oz.in(4.8V) 1.5kg.cm/20.86oz.in(6V) Operating Voltage: 4.8V~6V Control System: Analog Direction: CCW Operating Angle: 360degree Required Pulse: 900us-2100us Bearing Type: None Gear Type: Plastic Motor Type: Metal Connector Wire Length: 20 cm Description of 9G Servo: It is a high quality,low-cost servo for all your mechatronic needs. It comes with a 3-pin power and control cable, mounting hardware. Speed: Standard speed is 120 degrees, the maximum speed is 180 degrees Operating Voltage : 4.8~6.0V Currenct: [email protected][email protected] Operating Speed : 0.12sec/60 degree(4.8V)~0.1sec/60 degree(6.0V) Torque : 1.6kg/cm(4.8V) Dead Band Width : 5usec Temperature Range : -30~+60℃ Cable Length : 25cm Servo Type : Analog Servo Brand Model : Tower Pro SG90 size:23X12.2X29MM Package Including: 1 X Servo Tester OR 1 X Servo Tester 1 X Feetech FS90R Servo OR 1 X Servo Tester 1 X SG90 Servo

Average Star Rating:
0 out of 5 (0 Ratings)
Name Rating Feedback
Shipping Company Shipping Cost Estimated Delivery Time
DHL 3 - 7 days
UPS Expedited 3 - 7 days
EMS 5 - 14 days
Post Air Mail Free Shipping 15 - 45 days
Return Policy If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.

N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
