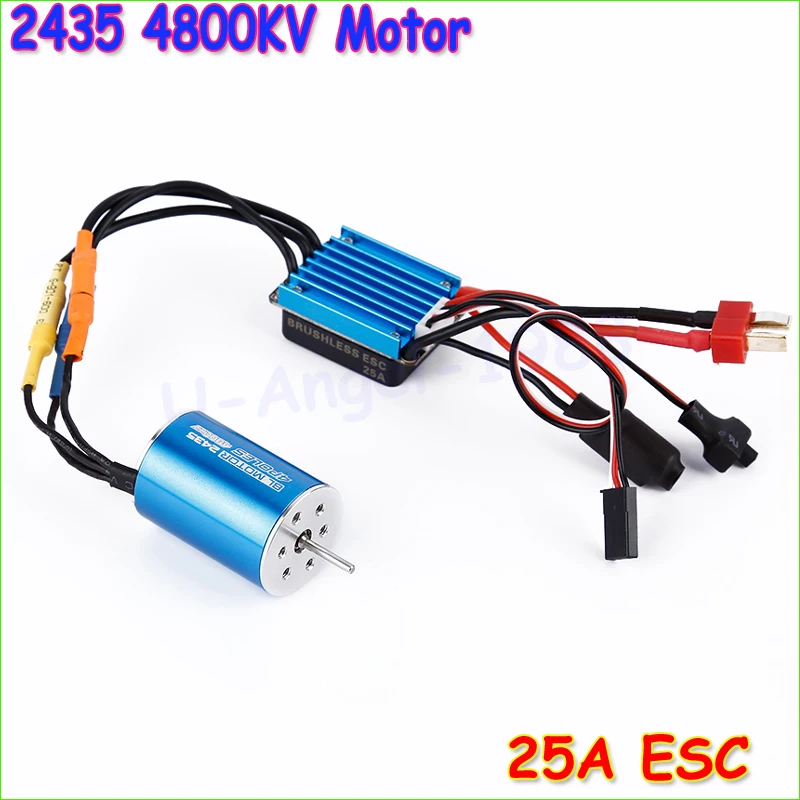

2435 4800KV 4P Sensorless Brushless Motor+25A Brushless ESC for RC Car
4 poles 12 slot Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fits 1/16 brushless cars-multi-mounting system for M2.5 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator – Super Thin (0.35mm) laminations.
Precision engineered for maximum energy conversion.
Electric Speed Controller
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Max Current: 24A
Max Watts: 300W
Can Size: 2435
Shaft Diameter: 2mm
Shaft Length: 12mm
Bullet Connector: 3.5mm
Max voltage: 7.4V(2S)-11.1V(3S)
Electric Speed Controller
Cont. Current: 25A
Burst Current: 90A/10sec
Battery: 2 Cell Lipo / 4-6 Cell NiMh
BEC Output: 5V/1A
Power Supply Plugs: T Male
Motor Plugs: Female 3.5mm Bullet Connector
Motor Size: 46 x 24mm/ 1.8 x 0.9inch(Height x diameter)
ESC Size: 37 x 26 x 15mm/1.5 x 1 x 0.6 inch
Package size:80 x 65 x 50mm/3.1 x 2.6 x 2 inch
Net weight: 89g
Package weight: 111g
1 * 2435 4800KV 4P Sensorless Brushless Motor
1 * 25A Brushless Electric Speed Controller
1 * manual
