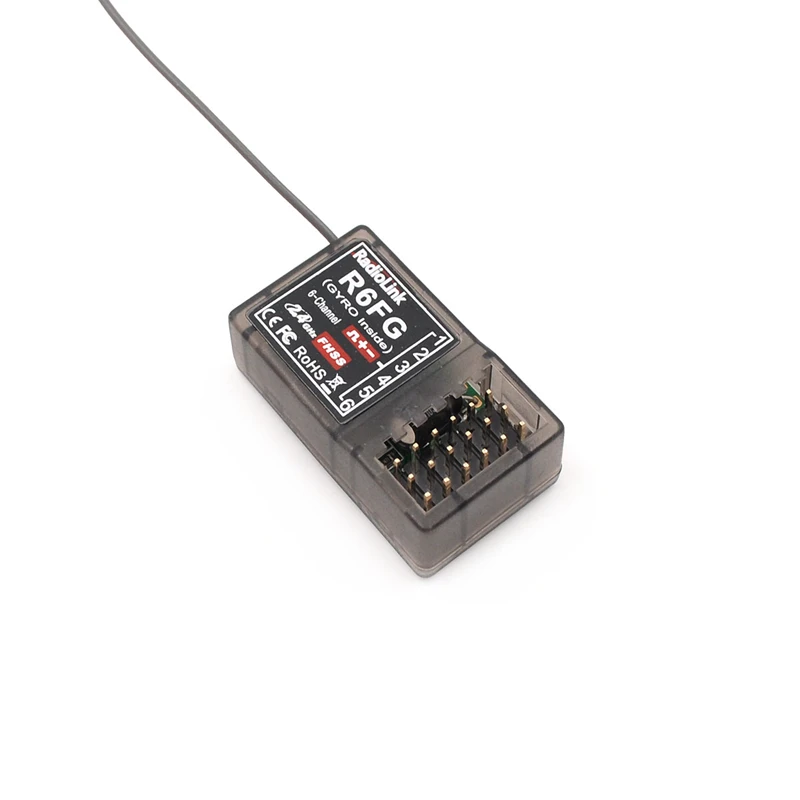

Radiolink R6FG 2.4GHz 4 Channels FHSS Receiver RX For RC4GS RC3S,RC4G T8FB Transmitter
Package include :
1 x R6FG 2.4GHz 4 Channels FHSS Receiver
. Technical Parameters 1)Size: 35*20*13mm 2)Channel: 4 3)Model: cars, boats 4)Modulation mode: GFSK 5)Spread spectrum: FHSS 6)10 modes memory storage 7)Antenna length: 106mm 8)Control distance: more than 400 meters 9)LCD screen: 128*64 resolution, LCD back light 10)Power supply: 4.8~15.0V DC, 4*1.5AA or 2S-4S Lithium battery 11)RF power: <10dbm 12)Low voltage alert: Yes (lower than 4.6V), can be set when using 2S-4S Li-Po battery 13)Frequency: 2.4GHz ISM band(2400MHz~2483.5MHz) 14)Channel resolution: 4096 15)Work current: 80~120mA 16)Compatible with transmitters: RC4GS, RC3S, RC4G, T8FB
Radiolink R4FG, 2.4GHz 4 channels receiver, TI CC2500 communication chip, gyro integrated and HV servo supported. Compatible with Radiolink 4 channels pistol grip radio RC3S, RC4G and 8 channels transmitter T8FB. How to Match Code With Transmitter: 1. Put the transmitter and the receiver close to each other within 50 centimeters. 2. Turn on the transmitter, then power on the R4FG. 3. There is a black button on the R4FG, press the binding button twice in two seconds and release, receiver light start blinking, after about blinking 8 times, match code success then receiver signal LED always on! Attention: R4FG default have not turn on the gyro function. Make sure the R4FG keep motionless when power on it, because the R4FG will do the self-test. R4FG with two indicate LED, green LED on indicate normal working mode while both green and red LED on indicate gyro function working mode. Working Mode R4FG has two working modesnormal working mode and gyro function working mode. (1) Normal Working Mode Green LED, gyro will not working. (2) Gyro Function Working Mode Both green and red LED on. Receiver with gyro integrated to hold the vehicle in a straight line during aggressive acceleration and braking or get bumped around by rough terrain. Receiver with gyro integrated to keep the uni-direction and anti-slip. How to Turn On Gyro Function Quick press the ID SET switch two times within 1 second, the LED change from green to red means gyro function has turn on. Gyro Function Setup Integrated Gyro, is used to assure the stability of cars on turning status; and keep on straight running even the cars get some mechanical phantom. Gyro function can be enabled or disabled. A. Gyro enabled Gyro preset disabled, and it enters post indication status. There are two indicators on the receiver. The green one shows the receiver status and the red one is for gyro. When the led turns on, the gyro is enabled , and the led turns off, gyro disabled. B. Gyro enabled forward Cars can be drove forward and backward, gyro is enabled forward or backward correspondingly. Like the EP cars, different connection will make different direction, the gyro is ensured to be enable forward. C. Gyro reverse Same like a plane has reverse, car kit gyro has reverse as well. Only right set reverse gyro can act to correct. Set 1. Enable gyro Press binding key three time (interval less than 1 second), the red LED will flash three time, indicating whether gyro is enabled. 2. Gyro sensitivity Gyro sensitivity is predefined to adjust by channel three (factory set VR function), turning the VR switch clockwise to raise sensitivity and anti-clockwise to decrease. 3. Gyro forward When the gyro is enabled, pull the throttle trigger and then release (make sure the car stops running), turn the car right or left without changing steering wheel, if the servo will not follow with, it shows gyro is set backward. Press the binding switch one time less than 1 second, the LED flashes red once, gyro is changed to act forward. 4. Gyro reverse Set the gyro forward, turn the car right or left to see whether gyro functions. The wheel will turn left when the car is turned right and the wheel turns right when the car is turned left. If the gyro acts counter, press the binding switch two time, the LED flashes two time red, the gyro reverse is corrected. Installment of receiver antenna 1.The antenna must be kept as straight as possible. Otherwise it will reduce the effective range. 2.Large model aircraft may of some metal part interfering signal; in this case the antennas should be placed at both sides of the model. Then the best RF signal condition is obtained at any flying attitude. 3.The antennas must be kept away from conductive materials, such as metal and carbon by at least a half inch. The coaxial part of the antennas does not need to follow these guidelines, but do not bend it in a small radius. 4.Keep the antennas away from the motor, ESC, and other noise sources as much as possible. 5.Press and hold the Easy Link (ID SET) one second, now the receiver starts work. 6.After all of the above steps finished, the LED indicator will turn and keep in red/green. 7.The receiver can be packed by sponge or foam for shocking proof when it is installed to the model. After all of the above steps finished, turn off the transmitter and then power it on, now the program functions to assure it under control of transmitter with a right connection
0 out of 5 (0 Ratings)
5 Stars (0)
4 Stars (0)
3 Stars (0)
2 Stars (0)
1 Star (0)
|Shipping Company||Shipping Cost||Estimated Delivery Time|
|3 - 7 days|
|3 - 7 days|
|5 - 14 days|
|Post Air Mail||Free Shipping||15 - 45 days|
|Return Policy||If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
|Seller Service||On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).|
