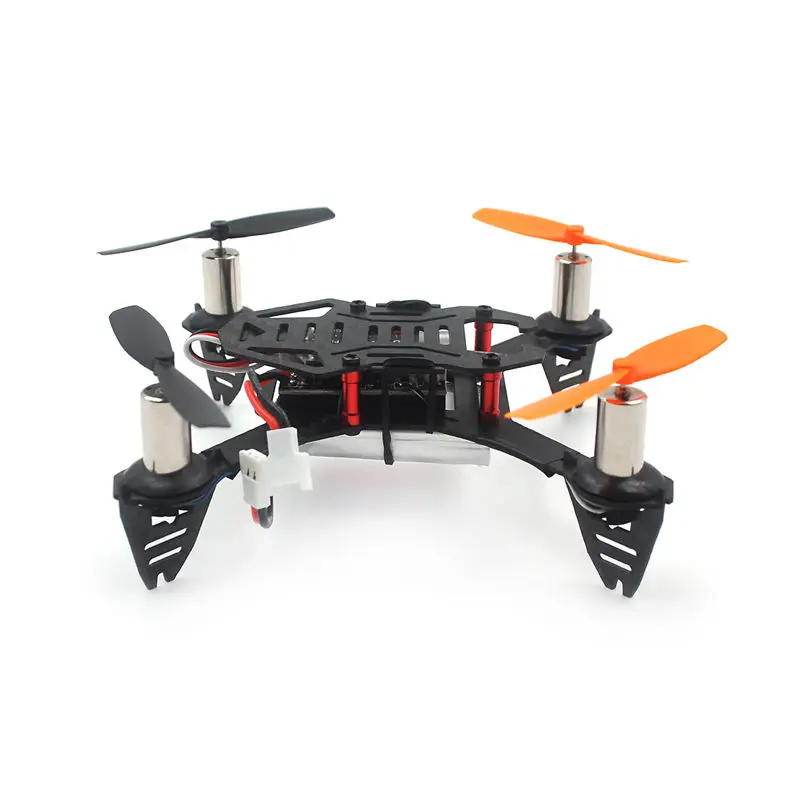

Radiolink F110 Mini Drone Quadcopter CS360 FC R6DSM RX BNF Headless 360° Throw Fly PID Auto Parameter Tune
Radiolink F110 Mini Drone 360 Degrees Throw Fly Quadcopter with R6DSM Receiver 2 Versions is optional, Please ready the Remote Transmitter for both versions.
(For AT9, AT9S,AT10 and AT10II TX)
One is standard model without Remote Transmitter and FPV Deice.
One is Upgrade model with FPV Camera, No Remote Transmitter. Features Highlights:
(1)Can Throw and Start to Fly in Any Angle
(2)Cycle Mode Just Controlled by Rudder Stick
(3)Head Front Forward Point Without Compass: Drone head always towards the same direction if not move rudder stick, otherwise the head direction will change according to rudder stick move.
(4)PID Parameter Tune Automatically: F110, controlled by Radiolink brand new mini racing drone flight controller CS360, different from other flight controllers that need to set PID tuning before use, gets the perfect parameters and flight angle automatically. Compatible with Remote Controllers
F110 compatible with RadioLink remote controllers AT10, AT10II, AT9, AT9S and T8FB. F110 will sell with receiver R6DSM or R8FM (you can buy F110 with R6DSM or F110 with R8FM from our dealer).
R6DSM compatible with RadioLink remote controllers AT10, AT10II, AT9, AT9S. R8FM compatible with RadioLink remote controller T8FB. Specification:
1.Weight (include packing box): 170g
2.F110 Size (without propeller): 110mm*44mm
3.Packing Box Size: 225*125*55mm
4.Flight Controller CS360 size: 32.5*21.5mm
5.R6DSM Size: 15*13mm
6.Propeller diameter: 55mm
7.Flight Time : 6 to 8 min(1S 600mA, 25C Li-Po battery)
8.Operating Temperature : depends on your battery
9.Control distance: 600 meters air(with R6DSM)
10.Support Transmitters: all transmitters that support S-BUS receiver
11.Coreless Motor: 8520
12.O-ring for Motor Size: 8*15*6mm, rubber Package Included:
1 X F110 Drone
1 X CS360 Flight Controller
1 X 1s Lipo Battery
1 X R6DSM Receiver
1 Sets X Blades
1 X 1S Lipo Battery Charger Cable
1 X 5.8G 40ch AIO FPV Camera with Video Transmitter (Only Upgraded Version included) The included Receiver is R6DSM, The lowest and lightest receiver, Mini size 15*13mm,1.5g light Weight, 10 Channel Receiver with Radiolink R6DSM, 2.4G 10 channels receiver, S-Bus and PPM Dual signal hybrid Dual spread spectrum working synchronously, 1.5 gram weight, use for Radiolink transmitters AT9, AT9S,AT10 and AT10II Two signal working mode:
Blue/purple LED, SBUS signal , 10 channels totally.
Red LED always, PPM signal, 10 channels totally.
SBUS and PPM signal change:
Short press the ID SET switch two times within 1 second, the signal is changed from SBUS to PPM. The red LED indicates the PPM and blue/purple indicates SBUS. How to match code with transmitter:
1. Place the transmitter and the receiver close to each other within 1 meters.
2. Turn on the transmitter, then power on the R6DSM.
3. Connect CH3 of R6DSM to ESC. 4. There is a black button on the R6DSM, press the binding button twice in two seconds and release, receiver light start blinking, after about 8 times blinking, match code success when receiver signal LED always on!
