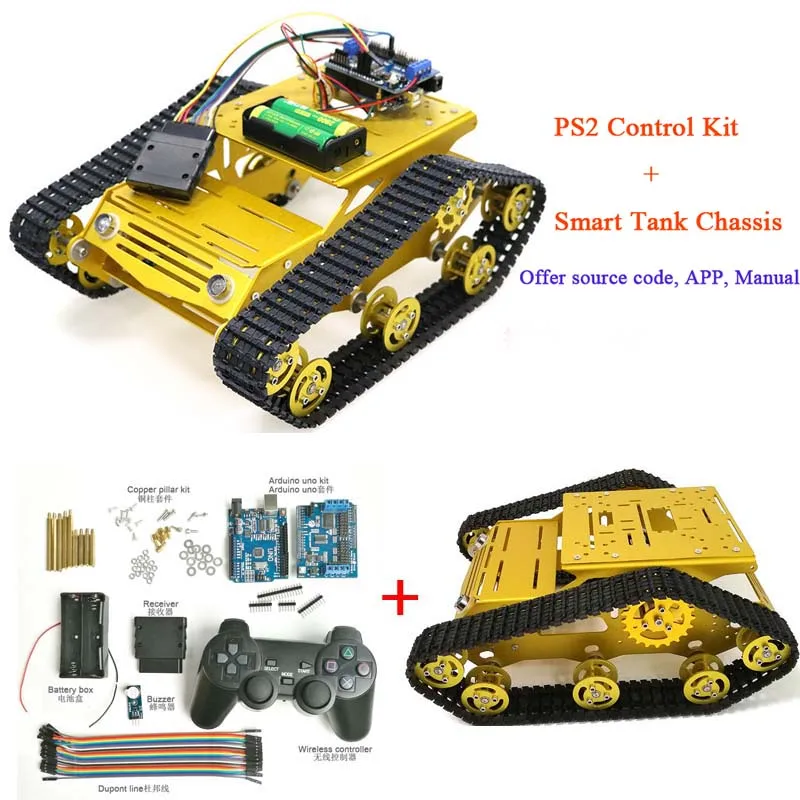

PS2 Joystick Control Smart Robot Tank Chassis with Dual DC 12V Motor+UNO Board+Motor Driver Board for DIY Project Y100

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in : 04:36:18
Price :  $ 30.50 / piece
Sale Price :  $ 28.98 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share :

Introduction:

  • This Arduino uno development kit, is designed based on the Arduino uno board, together with 2-channel & 16-channel servo shield board to drive the tank and 2WD car. In addition, There has wireless contoller and receiver, you can control the tank car via wireless control.
  • Provide source code, App and user manual.
  • More documents, pls see wiki: wiki.doit.am
  • Name: Y100 tank car chassis
  • Car body: metal (Aluminum alloy)
  • Color: Black/Silver/Golden/Blue
  • Wheel: metal(Aluminum alloy)
  • Weight: 1.16kg
  • Tracks: plastic
  • Size: 300* 240 *122mm (length * width * height)
  • Working voltage: 7~12V
  • Voltage: 12V DC

  • RPM: 320RPM

  • Current: 0.55A

  • Diameter: 25mm

  • Height (excl. shaft): 68mm

  • Shaft length: 9.5mm

  • Shaft diameter: 4mm

  • Weight: 180g

  • Brand new and unused

  • Torque: 13kg.cm

  • max effective point: load 4.0kg.cm/235rpm/2.5W/0.58A

  • Max power: load 7kg.cm/215rpm/3.1w/0.65A

  • Stall current: 4.8A

Shipping list:
Only tank chassis:(The color as the picture showed )

  • Y100 robot chassis: 1set(Motor: 12V motor)

Free send:

  • Battery box
  • Hexagon wrench

Only Control kit:

  • 2-channel motor&16-channel servo shield board: 1pcs
  • UNO board: 1pcs
  • USB Cable: 1pcs
  • Wireless controller: 1pcs
  • Receiver: 1pcs
  • Active buzzer: 1pcs
  • Copper pillar kit: 1set
  • Battery box: 1pcs
  • Dupont line: 1pcs

Full set:

  • Tank chassis: 1 set
  • Control kit: 1 set

Note:

  • For the convenience of transport, the tank chassis is unassembled.
  • NOT INClUDED THE BATTERY.
