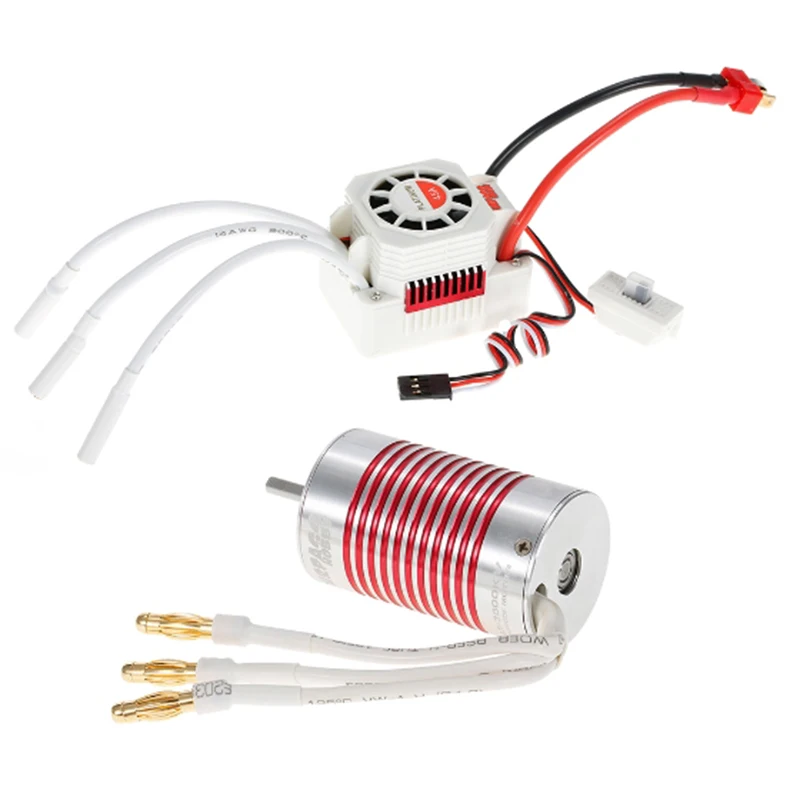

Waterproof, suitable for various condition races. Specially designed for 1/14 1/12 RC car.
4 pole 12 slot High-torque motor design. CNC Machined 6061 T6 billet aluminum heatsink can. High purity copper windings maximizes efficiency. High RPM ABEC5 oversized bearings.
Precision balanced rotor, smoothness for best reliability and maximum RPM; Stator – super thin (0.35mm) Laminations; Removable/replaceable rotor.
Multiple protection features of the ESC: low voltage cut-off protection for lithium or nickel battery / over-heat protection / throttle signal loss protection / motor blocked protection.
The ESC is easily programmed and compatible with pocket-sized program card.
Max voltage: Less Than 14V
Max Amps: 57A
Max RPM: 50000
Shaft length: 15mm
Shaft diameter: 3.175mm
Plug type: 4mm golden banana plug
Mounting Hole: M3
Electronic Speed Controller Specifications:
Cont. Current: 45A
Burst Current: 240A
Battery: 2-3 Cells Lipo / 4-9 Cells NiMh
BEC Output: 5.8V/3A (Switch Mode)
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
For 2s Lipo or 6 cells NiMH:
On-road: 3656-size or smaller motor with the KV Less Than 5600
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV Less Than 3900
For 3s Lipo or 9 cells NiMH:
On-road: 3656-size or smaller motor with the KV Less Than 3800
Off-road / Buggy / Monster: 3656-size or smaller motor with the KV Less Than 2700
Size: 50.8 * 38.5 * 36.5mm
Weight: 91g / 3.2oz
1 Although this combo suitable for most 1/14 1/12 RC car/truck, please check the size especially the mounting holes of the motor before purchase.
2 The ESC is waterproof for slight water. Don’t put the ESC into water for a long time
