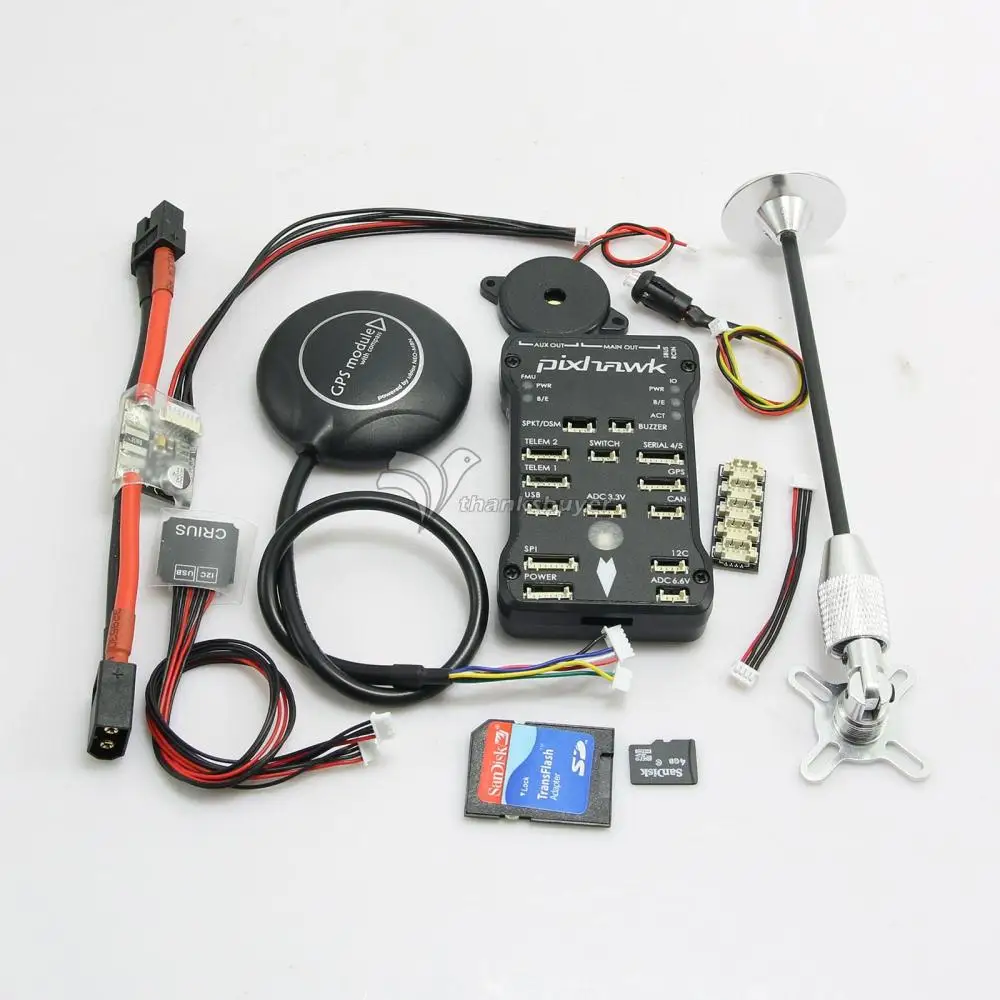

Pixhawk PX4 2.4.7 32 bit ARM Flight Controller & M8N GPS/8G TF Card/Led External/Power Module/I2C for RC Multicopter
Pixhawk 2.4.7 Description:
Compare to the old version 2.4.6, this newest version make several improvements.
– SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
– The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
– NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
– The same matte black gold plate as the original version, high quality
– PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high
– with external LED -Dual Size full angle LED
– Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
– 14 PWM/ Servo Output
– Bus interface(UART,I2C,SPI,CAN)
– Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
– Providing automatic and manual mode
– Providing redundant power supply input and failover
– Multicolor LED light
– Providing multi sound buzzer interface
– Micro SD records flying data
– 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
– Main frequency: 168MHZ,256K RAM
– 32 bit STM32F103 back up processor
– L3GD20 3 axis digital 16 bit gyroscope
– LSM303D 3 axis 14 acceleration/magnetometer
– MPU6000 6 axis acceleration/magnetometer
– MS5611 high precision barometer
– 5 UART, one compatible high voltage, two have hardware flow control
– Two CAN
– Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input
– Futaba SBUS compatible input and output
– PPM signal input
– RSSI(PWM or voltage) output
– 3.3 and 6.6VADC input
– External MICRO USB interface
NEO-M8N GPS Specification: ()
– NEO-M8N has low consumption high precision, limiting precision 0.6m, most are about 0.9m according to tests
– Compared to NEO-7N 1.4-1.6m, the precision has been greatly improved, and support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
– X 1pcs
– Original shell X 1pcs
– Buzzer X 1pcs
– Safety button X 1pcs
– 8G TF Card (IO firmware has written) X 1pcs
– GPS Folding Holder
