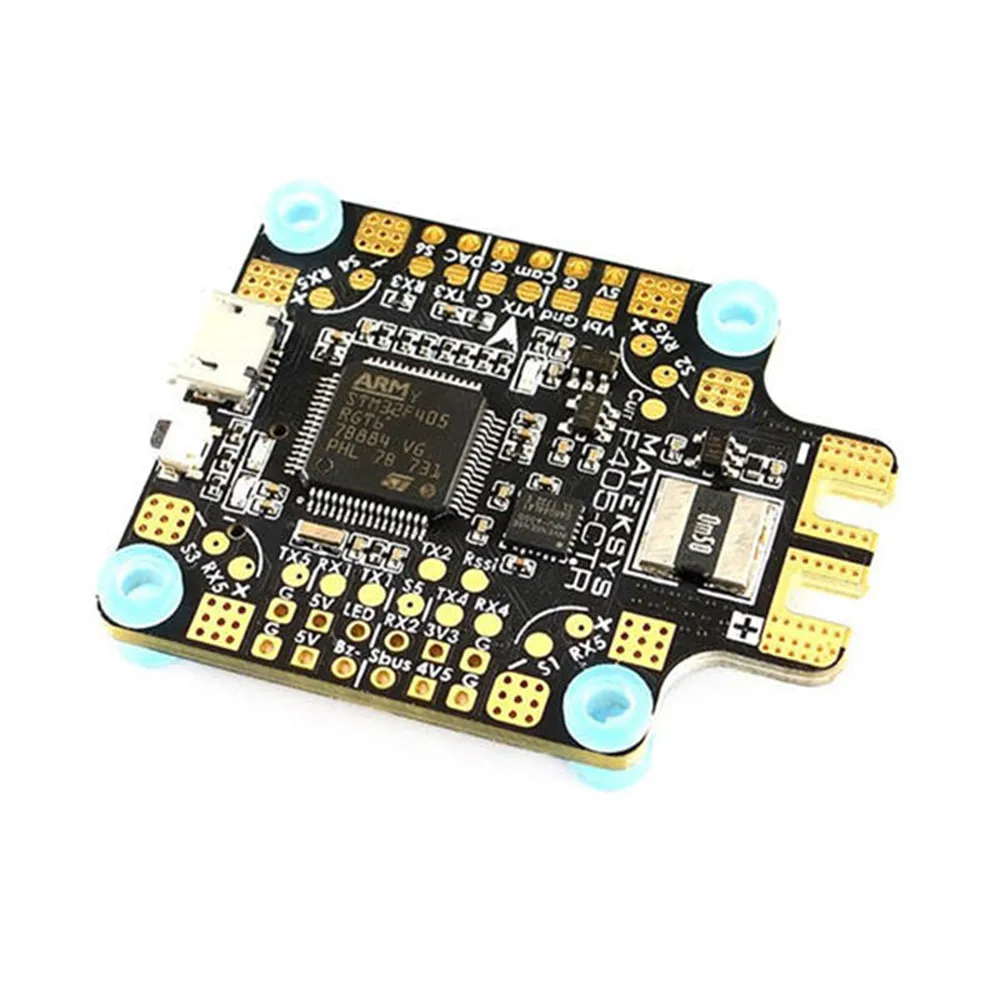

New Matek Systems F405 AIO BetaFlight F405-CTR STM32F405 Flight Controller Built-in PDB 5V/2A BEC Current Sensor for RC Drone

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 38.75 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Matek Systems BetaFlight F405-CTR Flight Controller Built-in PDB OSD 5V/2A BEC Current Sensor for RC Drone

Specifications:
Brand name: Matek Systems
Item name: BetaFlight F405-CTR
Size: 36x46mm PCB with 30.5mm mounting holes
Weight: 10g

FC Specifications: MCU: 168MHz STM32F405 IMU: MPU6000 accelerometer/gyro (SPI) Baro: BMP280 (I2C) OSD: BetaFlight OSD w/ AT7456E chip Blackbox: MicroSD card slot (SD/SDHC) VCP, UART1, UART2, UART3, UART4, UART5 Built in inverter for SBUS input (UART2-RX) PPM/UART Shared: UART2-RX SoftSerial on TX2, S5 or S6 optional Camera control on S6 or DAC optional Smartaudio & Tramp VTX protocol supported WS2812 Led Strip : Yes Beeper : Yes RSSI: Yes PDB Specifications: Input: 6~30V (3~6S LiPo) w/TVS protection PDB: 4x30A (Max.4x46A), 6 layers*2oz copper PCB BEC: 5V 2A cont. (Max.3A) LDO 3.3V: Max.300mA for Spektrum RX Current Sensor 184A (Scale 179) Battery Voltage Sensor: 1:10 (Scale 110)
Features: 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red) 6x PWM / DShot outputs without conflict 5x UARTs 1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND 4x pairs of corner pads for ESC Signal/GND connections (DSHOT compatible) 1x pair I2C1 pads 1x Side-press button for BOOT(DFU) mode
package included:
1x Matek Systems BetaFlight F405-CTR
4x Rubycon ZLH 35V/470uF (Low ESR)
6x silicon grommets M4 to M3
1x FR4 PCB Plate 36*36*1mm
