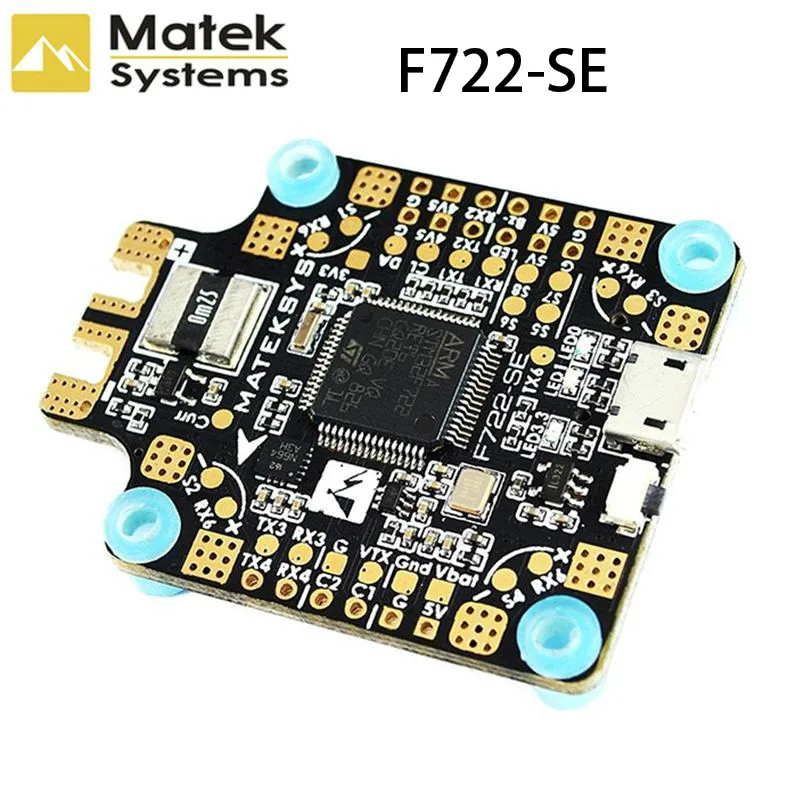

New Arrival Matek System F722-SE F7 Dual Gryo Flight Controller AIO OSD BEC Current Sensor Black For RC Drone Part Accs

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 42.99 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

8867423839291067

Flight ControllerUS $ 39.99 /pieceUS $ 32.99 /pieceUS $ 51.00 /pieceUS $ 29.89 /pieceUS $ 41.80 /pieceUS $ 40.00 /pieceUS $ 75.00 /pieceUS $ 58.00 /pieceUS $ 35.99 /piece

Specification: ( )
Brand Name: Matek System
Model: F722-SE
Item Name: F7 Dual Gyro / ACC Flight Controller Board
MCU: STM32F722RET6 216MHz
IMU: MPU6000 & ICM20602, Dual Gyros built-in (SPI)
Baro: BMP280 (I2C)
OSD: AT7456E (SPI)
Blackbox: MicroSD card slot (SPI)
Firemware: BetaFlight / INAV
Target: MATEKF722SE
Size: 36x46mm
Mounting Hole: 30.5×30.5mm
Weight: 10g

PDB Specifications
Input: 6~36V (3~8S LiPo) w/TVS protection
PDB: 4x35A (Max.4x46A)
BEC: 5V 2A cont. (Max.3A)
LDO 3.3V: Max.200mA
Current Sensor 184A (Scale 179)
Battery Voltage Sensor: 1:10 (Scale 110)

Features:
5x Uarts (1,2,3,4,6) with build-in inversion
1x Softserial supported
8x Dshot/Proshot/oneshot outputs
1x I2C
4x RX6 pad(one per cornet) for BLheli32 ESC telemetry
4x individual ESC power/signal pads
1x Group of G/S1/S2/S3/S4 pads for 4in1 ESC Signal/GND
3x LEDs for STATUS (Blue, Green) and 3.3V indicator(Red)
– Vbat filtered output power for VTX, Switchable via AUX (modes tab-user1)
– Dual Camera image switchable via AUX (modes tab-user2)
Camera control: Yes
Smartaudio & Tramp VTX protocol: Yes
WS2812 Led Strip : Yes
Beeper : Yes
RSSI: Yes
Additional ADC for INAV analog airspeed

Package Included:
1x F722-SE F7 Flight Controller
1x FR4 PCB Plate 36*36*1mm
1x Rubycon ZLH 35V/470uF (Low ESR)
