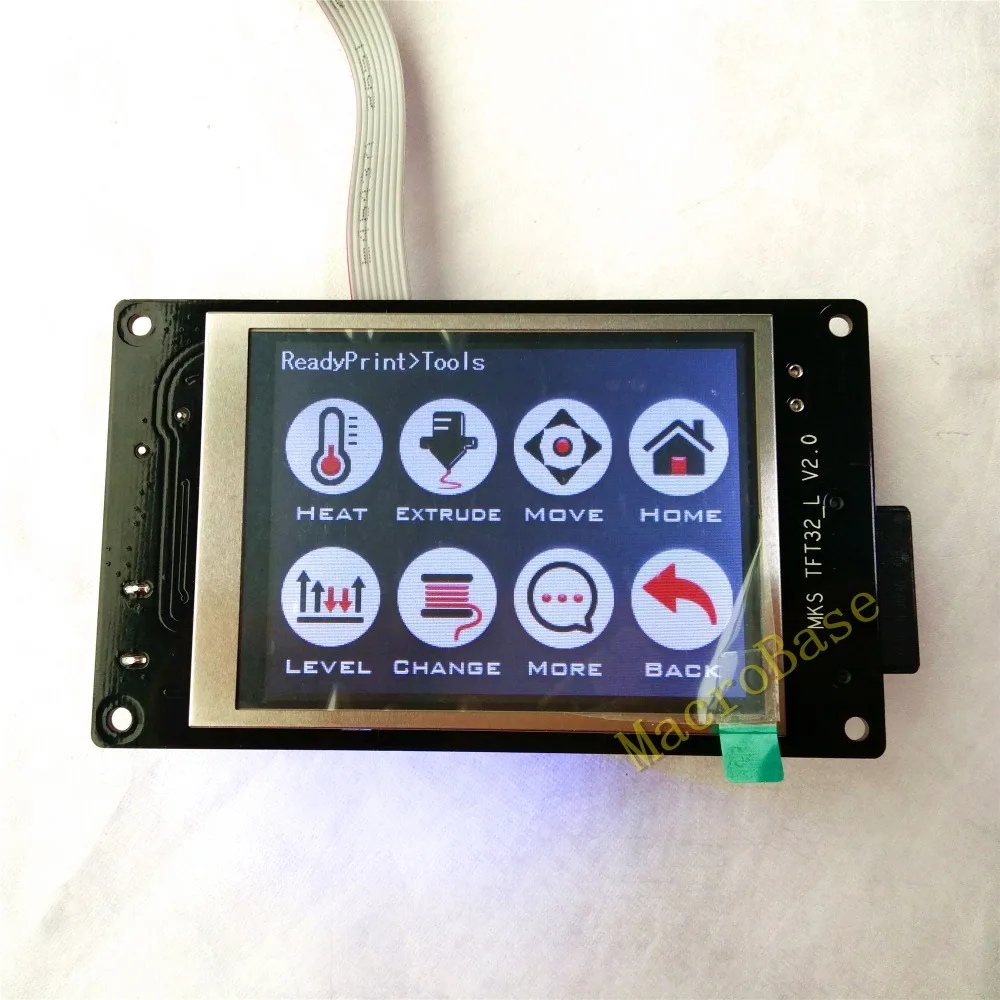

Name:MKS TFT32 V2.0 Touch Screen
MKS TFT32 is a colorful touch screen which is used independently on 3d printer.
This display is no need to set mainboard firmware and work together directly.
And it is easy to replace into your logo and edit your local language.
Also, it is available to self-define some commands .
Attention: MKS TFT32 can’t work with Ramps1.4.
More features as follows:
1*MKS TFT32 Touch Screen
How to assemble with mainboard.
Set the baud rate, ensure both TFT and controller board are the same.
1.MKS Series mainboards
Such as, MKS SBASE,MKS MINI,MKS GEN,MKS BASE, MKS GEN L,etc.
Flash firmware to mainboard .( TFT display has updated latest config inside already).
Connect TFT display to AUX-1 of the board.
No need to configure on board firmware,they will work together directly after wire.
The boards need a external 12V power supply.
Please copy following documents to the root of SD card.
(Please don’t edit the documents name.)
mks_pic mks_config mkstft28
Then, plug the SD card to the TFT and power on. It will update automatically.
After the machine assembles with a bed leveling controller, then run leveling on TFT interface.
#The command of auto leveling (G29 is available for Marlin.
While G32 is for Repetier and Smoothieware)
Manual leveling is good for MB,i3 etc machines. It is available to set 3,4,5 point .
#The point number of manual leveling:(3,4,5 point available)
It is easy to replace the filament when it runs out.
You are able to set temperature and the speed of filament in-out on config.
#the speed of filament replacing(mm/min)
#the length of filament replacing(mm)
#the min temperature of filament replacing
6.Print from Breakpoint
TFT has a one of the excellent features is able to print from Breakpoint.
Below is the way to do it.
Firstly, set target temperature of extruder and heated bed, and then preheat.
Secondly, when preheat ready, go home .(Notice: if power off happens during operating printing from breakpoint, please must home .)
Thirdly, move extruder to the breakpoint which is available to set allowable error.
#Breakpoints continued playing Z-axis error setting
Fourth, click set, and then click Continue(Means Print from Breakpoint).
After that, choose the file you want.
(If you pause the printing, and turn the printer off,
then it will resume to print from the pause point after power on.)
7.Filament Outage Detecting
Connect detecting switch to PB1 of TFT.
Set configuration to trigger low level or high level available.
#the level signal of outage detection module PB1(low level:0; high level:1)
8. Auto off after Print Finishes
Enable this function on config,and take concerted with PWC switch.
#whether set machine auto-off after print finishes(auto-off:1; NO:0)
9. MKS WIFI
MKS TFT supports WIFI remote control. Please set configurations.
#wifi mode(AP:1; STA:2)
#wifi name and password
#Dynamic access IP
10.WiFi Wiring on TFT
