LHI RC X220mm Quadcopter Frame 2204 2300KV Motor and 12A ESC with FS-T6 of dron qav zmr drone CC3D Flight Control 250 for drone
– Wheelbase: 220MM
– Frame Material: pure carbon fiber
– Arm thickness: 4MM
For 12A Simonk ESC
Features: 1.1 Based on Simon K firmware, further optimized to the perfect drive performance. 1.2 Low-voltage protection, over-heat protection and self-check functions. 1.3 Separate power supply for MCU and BEC, enhancing the ESC’s ability of eliminating magnetic interference. 1.4 Parameters of the ESC can be set via program card or transmitter. 1.5 Throttle range can be set to be compatible with different receivers. 1.6 Equipped with built-in linear BEC or switch BEC. 1.7 Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole. Specifications: 2.1 Continuous Current: 12A 2.2 Burst current (10S): 15A 2.3 Li-xx Battery (cell): 2-3 2.4 Dimension (L*W*H): 25mm x 20mm x 7mm 2.5 Weight wires Included: 9 2.6 BEC Mode: Linear 2.7 BEC Output: 1A/5V 2.8 Programmable: Yes For LHI MT2204 2300KV motor Specification KV : 2300 MAX Thrust : 440G No. of Cell : 2-3S Framework : 12N14P Propeller : 5″~6″ Length : 32.2mm Weight : 25G Shaft : 3mm Diameter : 27.9mm

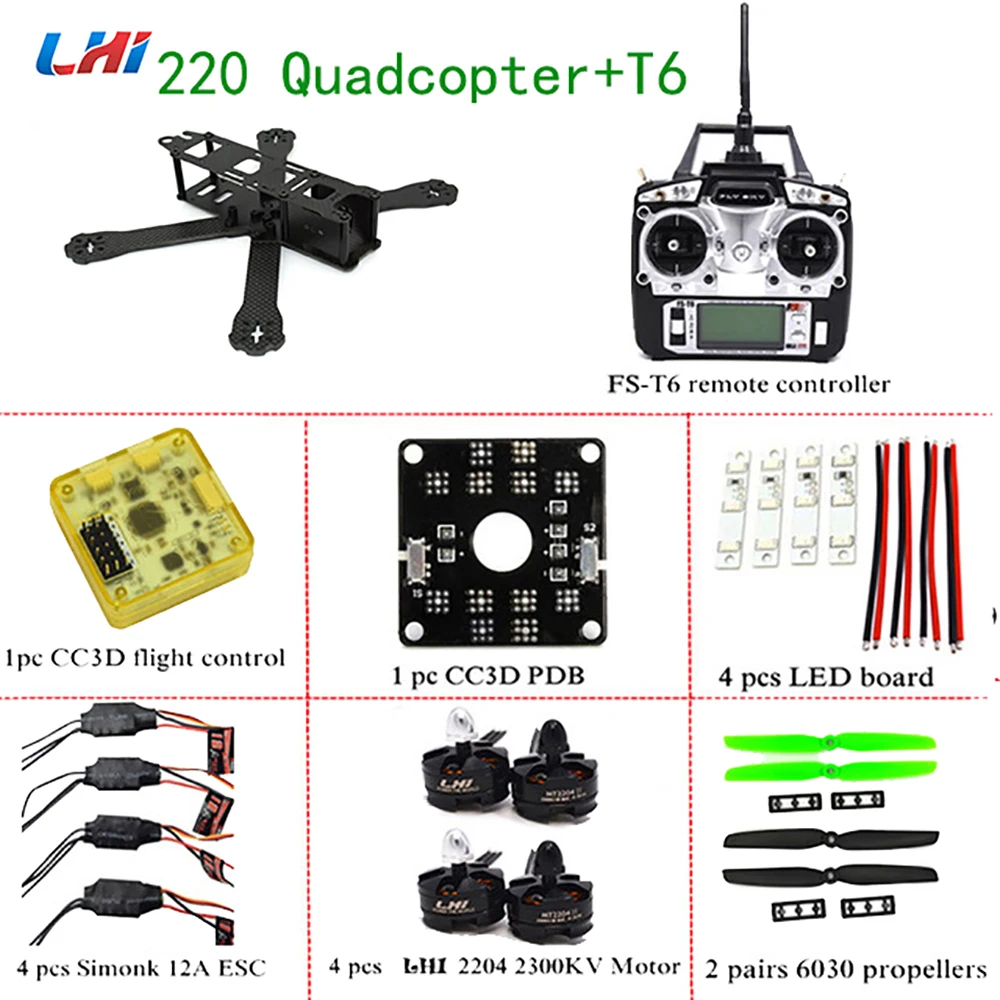

1 x 220mm carbon frame kit
4 x LHI MT2204 2300KV Brushless motor
4 x simonk 12A ESC
2 pairs x 6030(CW+CCW) Propellers
1 x CC3D Flight Controller
1 x CC3D Power board
1 X FS T6
4 X LED Light board
