JMT DIY GPS Drone Carbon Fiber 8-axis Aircraft PX4 2.4.8 Flight Controller APM2.6 GPS 350KV Motor 40A ESC Radiolink AT9S TX RX

80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 695.70 / piece
Sale Price:  $ 633.09 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

DIY GPS Drone Carbon Fiber 8-axis Aircraft PX4 2.4.8 Flight

Controller APM2.6 GPS 350KV Motor 40A ESC Radiolink

AT9S Transmitter

Description: – The board integrates with PX4FMU+PX4IO – Pixhawk is with new 32 bit chip and sensor technology Features: – Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system; – 14* PWM/ actuator output; – Bus interface (UART, I2C, SPI, CAN); – Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; – Provide automatic and manual mode; – Provide redundant power input and fault transfer function; – Color LED lamp; – Multi tone buzzer interface; – Micro SD to record flight data; Processor: – 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit – Main frequency: 256K, 168MHZ RAM – 32 bit STM32F103 backup co processor Sensor: – L3GD20 3 axis digital 16 bit gyroscope – LSM303D 3 axis 14 bit accelerometer /magnetometer – MPU6000 6 axis accelerometer / magnetometer – MS5611 high precision barometer Interface: – 5* UART, 1*compatible high voltage, 2*hardware flow control – 2* CAN – DSM/DSM2/DSM-X satellite receiver compatible input – Futaba SBUS compatible input and output – PPM signal input – RSSI (PWM or voltage) input – I2C – SPI – 3.3 and 6.6VADC input – External USB MICRO interface Specifications for AT9S transmitter:
1. Size: AT9S- 183*100*193mm, R9DS- 41*23*14mm
2. Weight: 0.88kg
3. Frequency: 2.4GHz ISM band (2400MHz to 2483.5MHz)
4. Modulation mode: QPSK
5. Channel bandwidth: 5.0 MHz & 250Kbps
6. Spread spectrum: DSSS ;FHSS
7. Adjacent channel rejection: >38dbm
8. Transmitter power: <100mW (20dbm )
9. Operating current: <90mA 12V
10. Operating voltage: 7.4 ~ 18.0V
11. Control distance: more than 900 meters ground, 1500 meters air, the actual control distance depends on the flying environment
12. Channel: 10 channels, 5-10 channels are customized
13. Compatible model: include all 120 degree and 90 degree swash-plate helicopter, all fix wings, glider and multi-rotor
14. Simulator mode: under the simulator mode the transmitter action turn off, change to power saving mode
15. Screen: 2.8 inches 16 colorful screen, 240*320 pixels

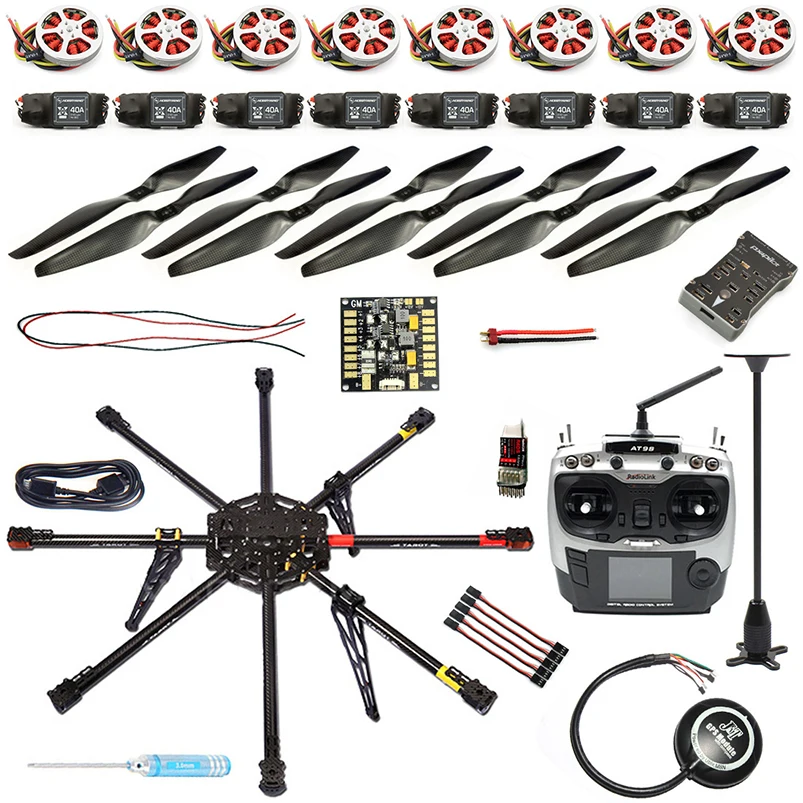

16. Support receivers: sells with R9DS (SBUS;PWM) ;Also support R10DS(SBUS PWM) and R6DS(SBUS;PPM;PWM) Package listing: 1* 1000 carbon firber 8-axis frame 8* 350KV Brushless Disk Motor high Thrust With Mount 8* 40A Brushless ESC Speed Controller 5* Three-hole High Quality Carbon Fiber 15×5.5 1555 Propeller (pair) 1* Multifunction Power Distribution Board 1* 5pcs 10cm Servo Receiver Extension Lead Wire Cable 1* GPS Folding Antenna Mount Holder 1* Mini M8N GPS Module NEO-M8N GPS 1* PX4 PIX 2.4.8 32 Bit Flight Controller 1* USB data cable 24* 3.5MM banana connector 1* Radiolink AT9S 2.4GHz 9 Channel Transmitter with Radio R9D Receiver (Only the Full Kit include the transmitter and reciever) 1* 2.0MM screwdriver 1*2.5MM screwdriver

1*tool kit(tie and T plug)
