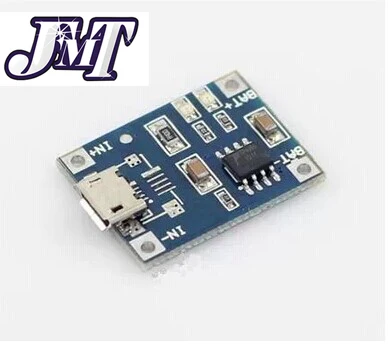

TP4056 1A Lipo Battery Charging Board Charger Module Lithium Battery DIY MICRO USB Interface Port

TP4056 1A Lipo Battery Charging Board Charger Module lithium battery DIY MICRO Port Mike USB
Description:
Charge module: Linear charging.
Current: 1A adjustable.
Charge precision: 1.5%.
Input voltage: 4.5V-5.5V.
Full charge voltage: 4.2V.
Led indicator: red is charging ; blue is full charged.
Input interface: MICRO Port Mike USB
Work temperature: -10 to +85 Degree.
Inversed polarity: NO.

Weight: 1.8g

Size: 25*19*10mm

Quantity: 1 Piece

Current Regulation:

RPROG (k)

IBAT (mA)

30

50

20

70

10

130

5

250

4

300

3

400

2

580

1.66

690

1.5

780

1.33

900

1.2

1000

Instructions / Notes:

– The test current ammeter only can in series with the charging board 5V input.
– The Charging current is preferably battery capacity 0.37C, the capacity is 0.37 times, such as the 1000mAH battery charge current ,400mAH is enough. Excessive charging speed effect poor, rushed over to the battery voltage out more!
– The Charging connection wire can not too small too long.

– It should be well contact with connecting the battery contact.
– If the 5V input voltage is high, such as 5.2 or even 5.5, it will result in insufficient 1000mA charging current , it is normal. High voltage chip fever will automatically reduce the charge current, not to burn the chip. Chip at work about 60 degrees fever is normal.
– Enter the reverse has no effect on the chip, but the output (battery terminal) chips will burn reverse, please note.
