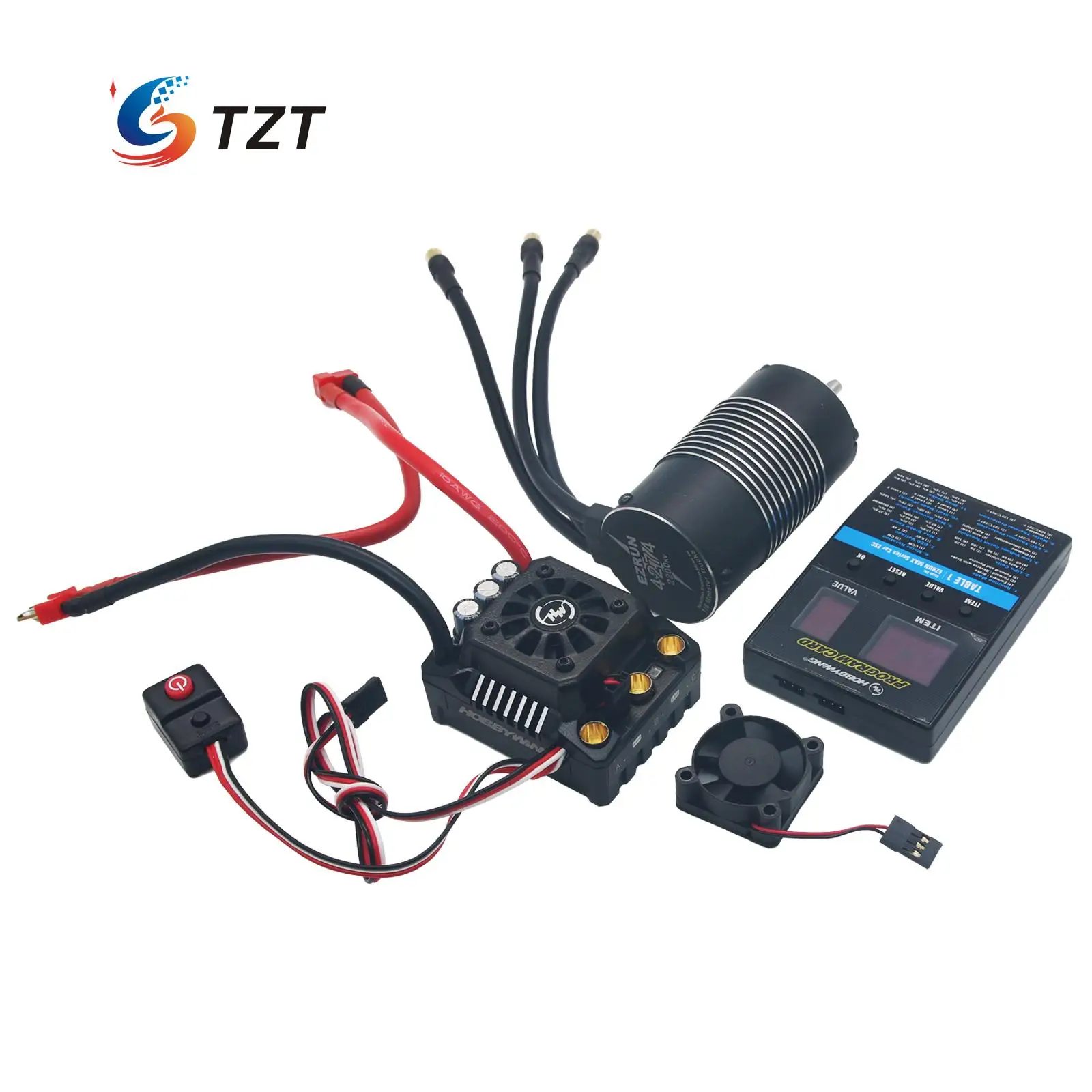

Hobbywing EzRun Max8 V3 150A Brushless ESC TRX Plug with Motor 4274 2200KV Program Card for RC Car
– ESC is compatible with sensorless brushless motors and sensor ed brushless motors (only in sensorless mode).
– Fully waterproof design for all weather conditions.
– Super internal switch-mode BEC with switchable voltage of 6V/7.4V and a co nt ./peak current of 6A/15A for easily driving big tor que servos and high voltage servos.
– Highly reliable electronic switch avoids troubles which may happen to traditional mechanical switch due to dirt, water, dash and etc.
– Separate programming port to easily connect the LED pr ogram card or the LCD pr ogram box to the ESC.
– Proportional brake with 9 levels of maximum brake for ce and 9 levels of drag brake for ce.
– 5 levels of acceleration/punch fr om soft to aggressive for different vehicles, tires and tracks.
– Capacitor ProtectionÃ¯Â¼ÂšInnovative Capacitor Protection effectively protects capacitors from exploding and causing irreversible damage to the ESC because of overload.
– Multiple protections: motor lock-up protection, low-voltage cutoff protection, thermal protection, overload protection, and fail safe (thr ottle signal loss protection).
– Advanced programming via portable LED pr ogram card or multifunction LCD pr ogram box.
Hobbywing Ezrun MAX8 V3 150A ESC :
– Scale: 1/8th
– Brushless & Sensorless
– Size: 59.8×48.0x36.8mm
– Weight: 174g
– Cont./Peak Current: 150A/950A
– Input: 3-6S LiPo/9-18 Cells NiMH
– BEC Output:Switch Mode:6V/7.4V, 6A
– Input Wires: Red-10AWG-200mm*1/Red-10AWG-150mm*1/Black-10AWG-150mm*1
– Output Wires: Black-10AWG-200mm*3
– Input Connectors: T Plug
– Output Connectors: 6.5mm Famale Gold Connectors (pre-soldered onto the PCB)
– (Note: All the wire length above is the original length not the length you see from the outside.)
– Fan Size: 30.0×30.0x10.0mm
– Fan Voltage Range: 5-7.4V
– Fan Powered by: Powered by BEC
– Firmware Upgrade: Supported
– Applications Motors: SL BL Motors/SD BL Motors(only in SL mode);
– Applications Vehicles: 1/8th Touring Car/Buggy/Truck;
– KV Rating/T Count: 4S LiPo:KVâ‰¤3000;/6S LiPo:KVâ‰¤2400(40XX Series of Motors)
– ESC Programing Supported: SET Button on ESC, LED Program Box, LCD Program Box, WiFi Module
EzRun 4274 2200KV Motor Parameters:
– KV Rating: 2200
– LiPo Cells: 2-6S
– No-load Current(A): 5
– Max. Power Output(W): 3000
– Current at the Point of Max. Power Output(A): 120A
– O.D.(mm): 42.0(1.654in)
– Length (mm): 74.0(2.913in)
– Shaft Diameter (mm): 5.0(0.196in)
– Weight (g): 418(14.745oz
– Applications: 1/8th Monster Trucks/Trucks
– 1 x Ezrun Max ESC TRX-Plug
– 1 x Ezrun Max LED Program Card
– 1 x Ezrun 4274 SL Brushless Motor (2200kv)
– 1 x Instruction Manul
