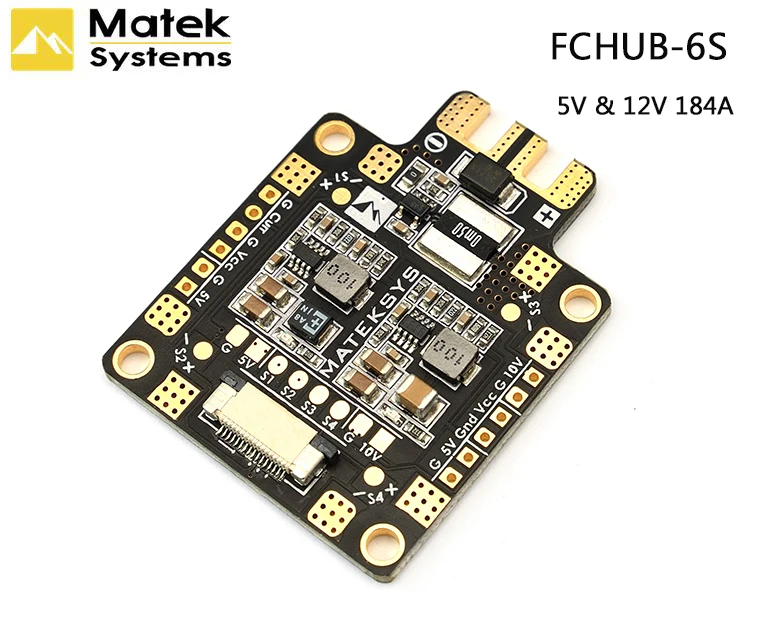

High Quality Matek Mateksys FCHUB-6S Hub Power Distribution Board 5V & 12V BEC Built-in 184A Current Sensor For RC Multicopter

98 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 10.54 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Describtion:
-This PDB distribution power from from a 3-6S Lipo pack to 4 ESCs, as well as providing regulated & filtered DC 5V & DC 10V outputs for powering Cameras, RC receivers, Flight Controllers, Video Transmitters, LEDs, etc.
– It also has buit-in 184A current sensor and offers a FFC socket to connect the Matek flight controller conviently.

Specification:
Brand Name: Matek
Model: FCHUB-6S
Item Name: Power Distribution Board Built-in Current Sensor
Size: 36x36mm
30.5×30.5mm Hole Mounting , M3
Weight: 8.5g
BEC Output: 5V & 10V

5V BEC Output:
– Designed for RC Receivers, Flight Controllers, OSD and Servos.
– DC/DC synchrous buck regulator
– Voltage: 5.0V (4.9-5.1)DC
– Current: 1.5A (Max. 2.0A 10S/minute)
– Short-circuit tolerant ( 2 Seconds/minuate)

10V BEC Output:
-Designed for VTX or FPV Camera
– Voltage: 10.0V (9.8-10.2) DC
– Current: 1.5A ( Max. 2.0A 10S/minute)
– Short-circuit tolerant ( 2 Seconds/minuate)
– 10V can be used to power cameras labeled as 12V.
– The 3S Lipo input voltage should be 11V plus.

Current Sensor Module
– Max. Range: 184A
– 3.3V ADC
– Scale the output voltage to milliamps ( 1/10th mW/A): 179

Features:
– Total 4 pairs ESC solder tabs are fix for X Type frame
– Max. 27V input w/ TVS protection
– Built-in current sensor 184A
– PDB: 4*30A ( 4*46A, 5 seconds), 4 layers*2oz copper PCB
– BEC 5V 1.5A ( Max. 2A) w/ 100uf POSCAP filter
– BEC 10V 1.5A ( Max. 2A) w/ 47uf TDK MLCC filter
– 5V&10V output LED indicators & Short circuit tolerant

Package Included:
1x FCHUB-6S PDB Board
1x bag of screws
