Welcome to MINGDA Professional Store
We can provide:
- 100% brand new
- Original Patent High Quality Battery Welding Machine
- Manufacture Direct Sale No need to pay extra agent price gap
Attention Detail From Us:
- One year warranty for machine, this is our promise to machine quality.
- ONE-TO-ONE Oversea technical support available
The Youtube working video link as MD-2005 Spot Welding Machine example:
Frankly Speaking, all we want is spend the same cost and get high quality and perfect service experience, thats why we insist in supply top quality product to our clients and also pay more attention to our clients using experience. If you have any interest Please just to try and give us a chance to contact! The service experience decide by your side and to decision your order. Thank you!
Main Technical Parameters , Battery Spot Welding Machine

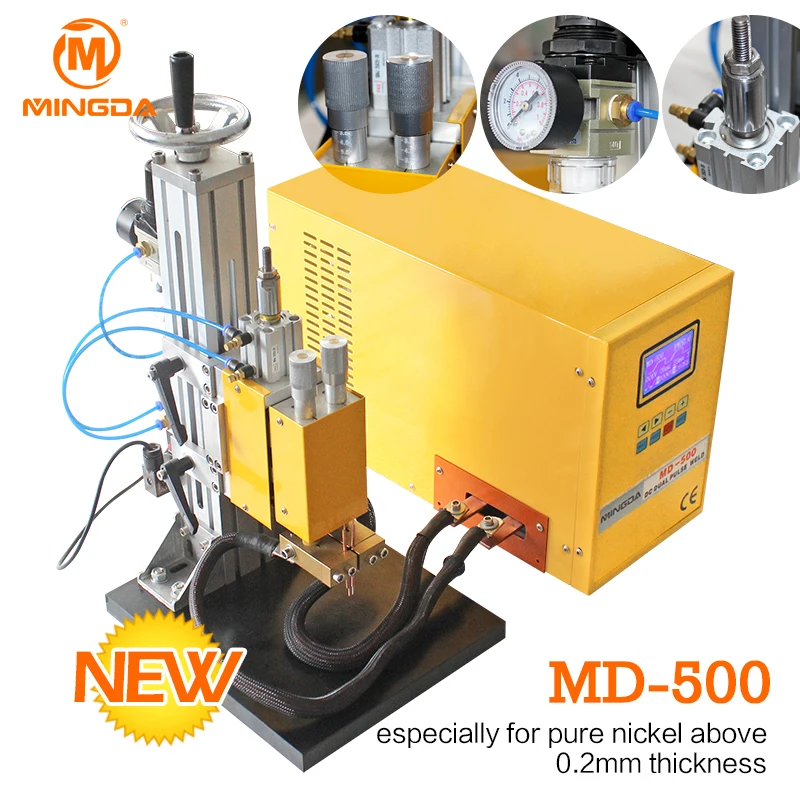

1.1 Introduction , MINGDA MD-500 professional spot welding machine
MD series battery assembled welding power used Japan of most advanced of welding technology, is the present domestic advanced level of high performance precision storage DC resistance welding machine, designed for the production of high-end electric car batteries, electric vehicle batteries, power tool battery, Rover balance car batteries, 18650 battery pack combination, as well as cell phones, digital battery nickel-metal hydride and nickel cadmium batteries required to design, but also can be welded metal parts, LED lights, electronic components foot, capacitors and so on.
2. Main Technical Characteristics , MINGDA MD-500 spot welding machine:
2.1 DC output. Welding current is pulsating DC (and waviness small), no AC shortcomings zero-crossing is not continuous heating the workpiece, heat concentration, improve the welding thermal efficiency, it’s particularly suitable for nonferrous metal materials and some difficult welding materials, stable welding process, improved the welding quality significantly. Meanwhile, extended the electrode life.
2.2 High speed and high accuracy microprocessor (MCU) control, provides highly stable repeat welding, with current monitoring function.
2.3 Inverter with soft-switching technology, reduce the switching losses and electromagnetic interference.With the fault diagnosis of abnormal currents, monitor overload, voltage overrun and alarm function.
2.4 Time wide range (0 – 9.9 ms), can be used for varies application of complex welding process needs.
2.5 10 parameters stored welding specification, convenience for the various welding varieties to use.
2.6 128 * 64 Chinese LCD display, and display a variety of content at the same time, graphical display of the current operating state, friendly interface, welding pulse graphics display function to improve the convenience of debugging observation.
2.7 Welding speed: fast start and high-speed polarity switching reduces the temperature so that the welding surfaces are clean and beautiful.
2.8 Polarity switching: suppression of asymmetric effects to make two uniform welding strength and prolong the service life of the electrodes.
2.9 Imported IBGT module full bridge control welding discharge, welding quality and speed of non conventional energy storage welding can be compared.
3.0 Double-pulse reduces welding spatter, effectively improve the weld quality.
International Standard Wooden Package
1 We have independent intellectual property rights for the whole series of products and its engineering development process.
2 The Welding machine have CE,FCC,ROHS and Alibaba thir-party TUV certification,and up to international export quality.
Previous services for pallet wrapping machine :
1. Providing professional technical support.
2. Send the product catalog and instruction manual.
3. If you have any question PLS contact us online or send us email, we promise we will give you a reply at the first time!
4. Personal call or visit are warmly welcome.
Sale of services for pallet wrapping machine :
1. We promise honest and fair, it’s our pleasure to serve you as your purchasing consultant.
2. We guarantee punctuality, quality and quantities strictly implement the terms of contract…
3. 24hr Online Customer service, please e-mail / QQ / Skype us ( Please contact us anytime!)
4. Attend and hold Exhibitions, we attach great importance to promote the product.
5. In many cases, we won’t let shipping cost becomes a burden to you.
After-sales service for pallet wrapping machine :
1. Where to buy our products for one year warranty and life long maintenance.
2. 24-hour telephone service.
3. A large stock of components and parts, easily-worn parts
Operation of MINGDA Best Price Dual Pulse 18650 Lithium Battery Welder
Lithium Battery Welding Machine or Lithium Battery Welding Machine or Lithium Battery Welding Machine
A. Height adjustment of Welding needles : loosing the height adjustment screw with a
wrench. Then adjust or replace the length of needles exposed below the electrode(usually, it
is about 15mm. It is easy to deform if it is too long) finally, tightening the screws
B. width adjustment of Electrode (needles) : loosing the width adjusting screw with a
wrench, then adjust two electrodes so that two needles to appropriate distance. Last,
tightening the screws.
C.Test: test whether there is coke on the needles or not., if so. you need to clear it with a
file or abrasive paper. then using the right foot press pedals . When its head drop, stare the
welding needles until the needle is on the welding point
D. Power: put plug into a 220V power socket, and turn on the power switch, indicator
flashing, the welder is work. If working indicator does not shine or shine without flashing.
turning off the power then turn on again.
E. In order to ensure good quality of welding, you should often adjust needles and keep it in
a good condition.
Awareness: A. Keep the needle and electrode from contacting . Or it would short circuit and does not work B. the current can not be adjusted too large. Generally, 0.1mm welding material can be welded when the current at 20-30 C. High pressure inside the chassis . Do not open it. MINGDA Best Price Dual Pulse 18650 Lithium Battery Welder for Sale
