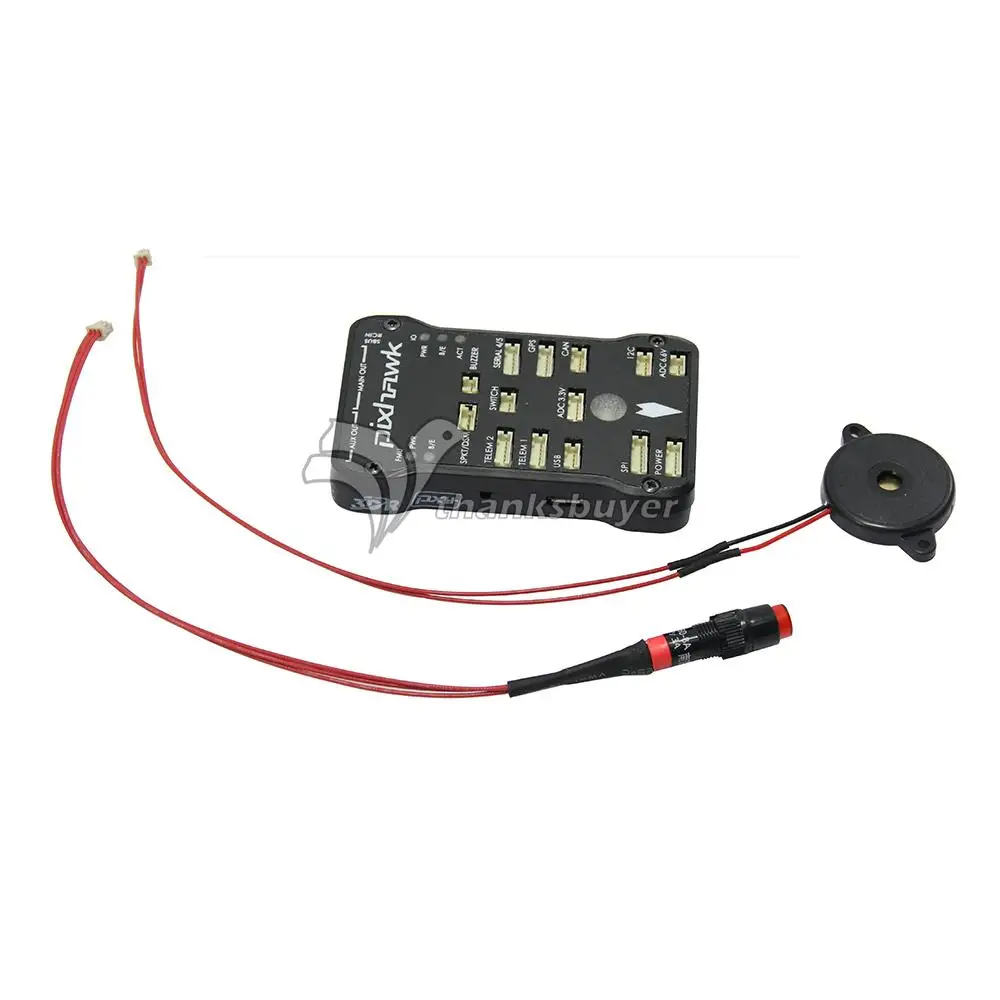

Gold-plated Socket Pixhawk PX4 Autopilot PIX 2.4.6 32Bit Flight Controller for RC Helicopter

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 106.17 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

USD 140.81/pieceUSD 68.89/pieceUSD 119.44/pieceUSD 106.17/pieceUSD 104.75/pieceUSD 109.86/pieceUSD 77.63/pieceUSD 98.35/piece

Pixhawk PX4 Autopilot PIX 2.4.6 32bit Flight Controller for RC Helicopter

Pixhawk 2.4.6 Description:
Compare to the old version 2.4.5, this newest version make several improvements.
– SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
– The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
– NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
– The same matte black gold plate as the original version, high quality
– PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high

Features:
– with external LED -Dual Size full angle LED
– Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
– 14 PWM/ Servo Output
– Bus interface(UART,I2C,SPI,CAN)
– Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
– Providing automatic and manual mode
– Providing redundant power supply input and failover
– Multicolor LED light
– Providing multi sound buzzer interface
– Micro SD records flying data
– Gold-plated Socket (high stability)

Hardware parameters
Processor:
– 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
– Main frequency: 168MHZ, 256K RAM
– 32 bit STM32F103 back up processor

Sensor:
– L3GD20 3 axis digital 16 bit gyroscope
– LSM303D 3 axis 14 acceleration/magnetometer
– MPU6000 6 axis acceleration/magnetometer
– MS5611 high precision barometer

Interface:
– 5 UART, one compatible high voltage, two have hardware flow control
– Two CAN
– Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input
– Futaba SBUS compatible input and output
– PPM signal input
– RSSI(PWM or voltage) output
– I2C
– SPI
– 3.3 and 6.6VADC input
– External MICRO USB interface

Pixhawk includes:
– Pixhawk PX4 2.4.6 Flight Controller x 1pcs
