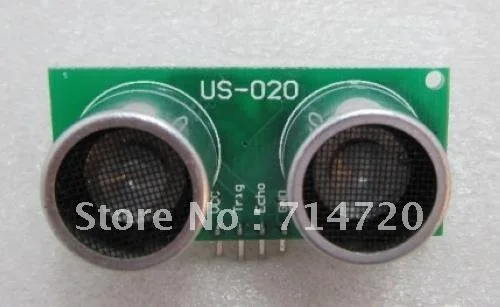

US-020 ultrasonic sensor distance measuring module detection range 2CM-700CM
If you are sourcing a ultrasonic ranging module,the US-020 is good choose.Its stable performance and high ranging accuracy make it a popular module in electronic market.Compared to the Shape IR ranging module,US-020 is more inexpensive than it.But it has the same ranging accuracy and longer ranging distance.
US-020 Ultrasonic sensor distance measuring module specification:
– Model: US-020
– Color: Green
– Working voltage : 5V(DC)
– Static current: Less than 3mA.
– Output signal: Electric frequency signal, high level 5V, low level 0V.
– Sensor angle: Not more than 15 degrees.
– Detection distance: 2cm~700cm.
– High precision: Up to 3cm
– Mode of connection: VCC / trig(T) / echo(R) / GND
– Module Working Principle:
– Adopt IO trigger through supplying at least 10us sequence of high level signal
– The module automatically send eight 40khz square wave and automatically detect whether receive the returning pulse signal
– If there is signals returning, through outputting high level and the time of high level continuing is the time of that from the ultrasonic transmitting to receiving
US-020 Ultrasonic sensor distance measuring module Wire connecting direct:
1. 5V Supply
2. Trigger Pulse Input
3. Echo Pulse Output
US-020 Ultrasonic sensor distance measuring module packing include:
1 x US-020 ultrasonic sensor distance measuring module
