Pro SP Racing F3 Competition Flight Control Acro 6DOF with M8N-GPS M8N GPS OSD Combo for DIY Mini 250 280 210 RC Quadcopter Multicopter FPV Drone
Dear friend , if you have any request or problem, just contact me freely at first . Thanks in advance.
Note: Acro Version does not have MS5611 barometer and HMC5883 .
The following Pictures are just for reference.
Acro 6DOF Version

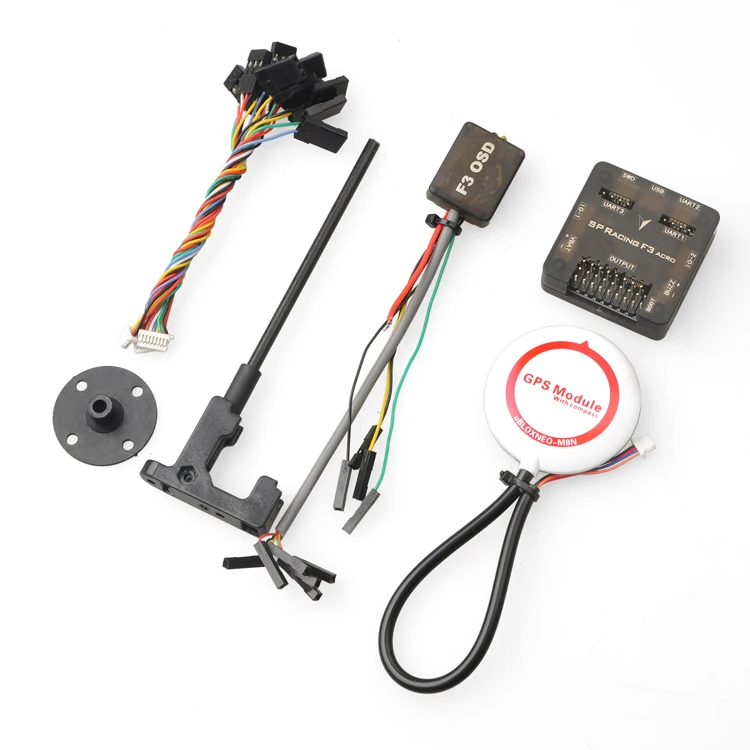

1 x SP Racing F3Acro 6DOFFlight Control Set
1 x MINI NEW HM-M8N GSP
1 x Mini OSD
A new generation Ublox GPS NEO-M8N,with low power consumption and high precision, the ultimate accuracy is 0.6 meters, actually almost 0.9 meters, greater than the previous generation NEO-7N 1.4-1.6 meters accuracy,support GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 protocol and mode or more.
– Quick satellite searching, only need 10s to find 6 satellite in open space
– Built-in , refresh rate up to 10GHz
– Support GPS+BD+SBAS, or GPS+GLONASS+SBAS
– Designed for Cleanflight firmware
– Pre-load MW OSD1.5
– Light weight and small unit, weight only 7g
GPS Chip parameters:
Receiver type 72-channel u-blox M8 engine
GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
SBAS L1 C/A: WAAS, EGNOS, MSAS
Galileo-ready E1B/C (NEO-M8N)
Nav. update rate1 Single GNSS: up to 18 HZ
Concurrent GNSS: up to 10 Hz
Position accuracy2 2.0 m CEP
Acquisition2 Cold starts: 26 s
Aided starts: 2 s
Reacquisition: 1.5 s
Sensitivity2 Tracking &; Nav: -167 dBm
Cold starts: -148 dBm
Hot starts: -156 dBm
Assistance AssistNow GNSS Online
AssistNow GNSS Offline (up to 35 days)3
AssistNow Autonomous (up to 6 days)
OMA SUPL &; 3GPP compliant
Oscillator TCXO (NEO-M8N/Q),
RTC crystal Built-In
Noise figure On-chip LNA (NEO-M8M). Extra LNA for
lowest noise figure (NEO-M8N/Q)
Anti jamming Active CW detection and removal. Extra
onboard SAW band pass filter (NEO-M8N/Q)
Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
Supported antennas Active and passive
Odometer Travelled distance
Data-logger For position, velocity, and time (NEO-M8N)
Operating temp. -40° C to 85° C
Storage temp. -40° C to 85° C (NEO-M8N/Q)
-40° C to 105° C (NEO-M8M)
RoHS compliant (lead-free)
Qualification according to ISO 16750
Manufactured and fully tested in ISO/TS 16949 certified production sites
Uses u-blox M8 chips qualified according to AEC-Q100
Supply voltage 1.65 V to 3.6 V (NEO-M8M)
2.7 V to 3.6 V (NEO-M8N/Q)
Power consumption4 23 mA @ 3.0 V (continuous)
5 mA @ 3.0 V Power Save Mode
(1 Hz, GPS mode only)
Backup Supply 1.4 to 3.6 V
NEO-M8N-0 u-blox M8 Concurrent GNSS LCC Module,TCXO, flash, SAW, LNA, Timepulse Configurable 0.25 Hz to 10 MHz
There are 2 versions optional, This one is Acro Version, If request Deluxe, Please search our store or contact us.
Acro Version:Standard model for racing/ acro flying
Deluxe Version:Additional sensors for altitude and direction
Better coding practices and introducing tests, easier to maintain and for future development. (Dominic has software development background)
Many bugs fixed from Baseflight.
Supports more flight controllers, including CC3D, CJMCU and Sparky.
Supports OneShot ESC and more than 8 RC channels.
Additional PID controllers that uses floating point arithmetic operations. (now has 3 built-in PID Controllers)
Many more features such as RGB LED strip support, Autotune, In-flight PID tuning with your radio, blackbox flight data logging etc.
* 36x36mm board, 30.5 mm mounting holes.
* STM32F3 CPU.
* High-capacity Flash (Acro 6DOF and Deluxe 10DOF)
* MPU6050 Accelerometers and Gyroscopes
*MS5611 Barometer (Deluxe 10DOF) – Not included
*HMC5883 (Deluxe 10DOF)- Not included
* MicroUSB socket.
* 4 x 4 pin JST-SH Socket (I2C, SWD, 2xuart)
* 2 x 8 pin JST-SH Socket (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
* 8 x 3 pin though-holes for pin headers for ESC / Servo connections.
* 2 x 4 pin though-holes for the 2x serial ports .
* 2 x 2 pin though-holes for battery voltage and buzzer.
The SPR F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it’s on rails.
Use all the features all the time; e.. Connect your OSD + SmartPort + + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors – all at the same time!
The SP F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (/OSX/Linux).
Tiny and lightweight
The RacingF3 has a standard 36x36mm form-factor with 30.5mm mounting holes and weighs just 6 grams.
On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork.
The RacingF3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
Loop times up to ~2x as fast as previous-generation STM32F1 based boards.
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Broad RC receiver Support
Supports , SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
Dedicated output for programmable LEDs – great for orientation, racing and night flying.
Battery monitoring ports for voltage and current.
Sonar support for precision low-altitude hold.
I2C port powered, perfect for external sensors or -on OLED Screen.
Buzzer port for audible warnings and notification
