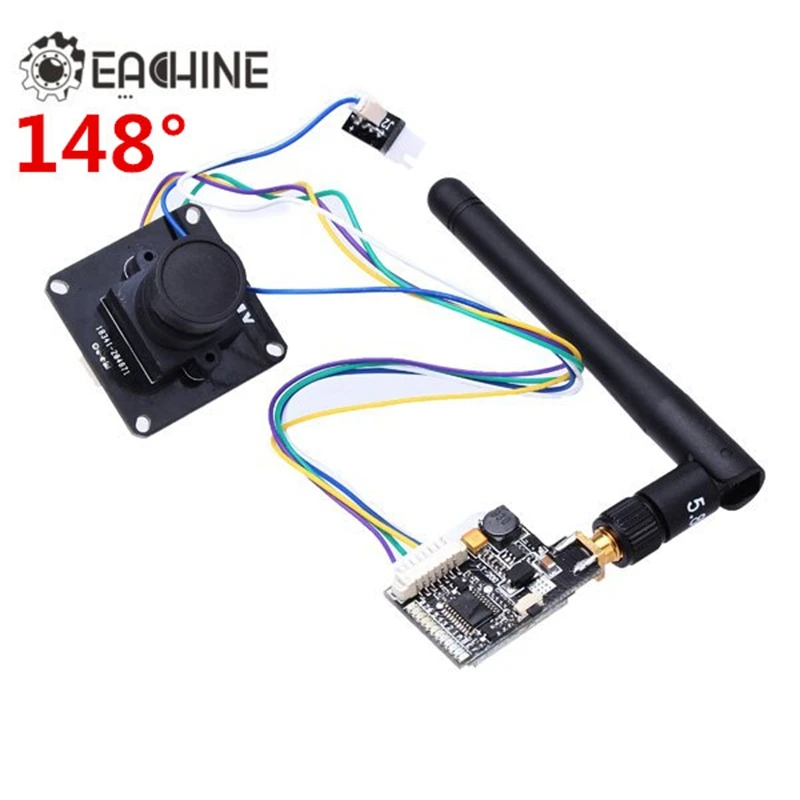

Eachine 700TVL 1/3 Cmos FPV 148 Degree Camera w/32CH Transmission

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 27.39 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:


Description:
Brand Name: Eachine
Item Name: 700TVL 148 degree Camera module with transmitter

Specification of camera:
Type:PAL / NTSC (free switch, please note that you need to turn off the electricity before switching or it may be failed.)
Power Supply: 3.6-5.5V (powered by image transmission)
Power consumption: [email protected]
Sensor: 1/3” CMOS
Resolution: 700TVL
FOV: 160°
Lens: 2.6mm IR coated
Operating temperature: -20°C – 70°C
Camera Size: 32 x 32 x 23.5mm
Lens Size(Length x Diameter): 15.3mm x 14mm
Weight: 12g
Usage: Compatible with general 5.8G transmitter
160°FOV diagonal, 148°horizontal view angle (ideal for fixed camera)
Debuged for FPV fly

Specification of image transmission:
Item NO.: LT200
Modulation mode: FM
Supported video format: NTSC/PAL
Output impedance: 75 Ohm
Output signal Strength: 23~24dBm.
Output power: 200mW
Operating channel: 32CH
Operating voltage: 7V – 24V
Operating current: 190mA
Operating temperature: -10~85
Sound carrier: 6.5MHz
Antenna connector: RP-SMA male
Size: 38mm x 22.5mm x 6mm
Weight: 6g(without antenna)
Video brand width: 0~8.0 MHz
Video input level: 0.8~1.2 Vp-p
Video input impedance: 75 Ohm
Audio input level: 0.5~2.0 Vp-p
Audio input impedance: 10K Ohm
Transmitter frequency: 5645-5945MHz with 200mW power output
Transmitting distance > ~1500m (open area)

Note: This Eachine 700TVL 1/3 Cmos FPV 148 Degree Camera supports 11.1V and the 32CH Transmission supports 7V – 24V. After testing, both of them in 11.1V will be the best if used as a set.

Frequency Table
Frequency brand A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency brand B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency brand E 5707 5685 5665 5645 5885 5905 5925 5945
Frequency brand F 5740 5760 5780 5800 5820 5840 5860 5880

Feature:
With 1/3” CMOS sensor
With lens cap, well protecting the lens.
Performance rivals CCD. Nice quality low cost.
Evening low light performance as excellent as highlight during the day.
Imaging parameters and the wide angle rigorous debugging for FPV.
Special cable connected the camera to image transmission, very convenient and concise.
Super lightweight, ultra-low power consumption, suitable for RC multicopter.
Can be mounted on frame, compatible with most of the 250mm frame.
Image settings have been FPV tuned through hours of flight testing to ensure great performance in challenging lighting conditions (no problem to fly in low afternoon sunlight).
Low power and light weight make this camera a perfect choice for smaller aircraft. Come with tiny 200mW 32ch FPV professional video transmitters.
Compatible with ImmersionRC Boscam, Foxtech and other generic brand FPV receivers within the same frequency range.

Package Included:
1 x Eachine 700TVL 148°camera
1 x 5.8G image transmission
1 x Antenna(2db)
1 x 5P Cable
1 x Manual
