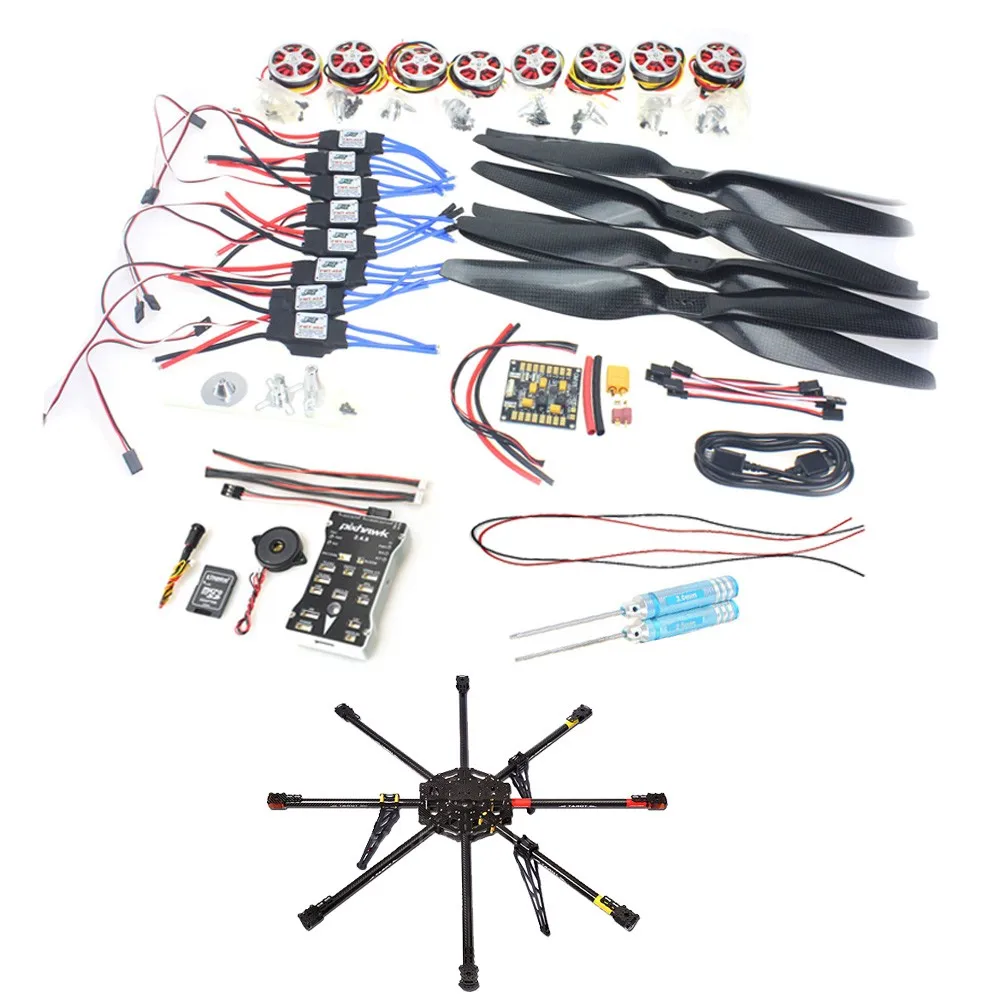

DIY GPS Drone Carbon Fiber 8-axis Aircraft PX4 2.4.8 Flight
Controller APM2.6 GPS 350KV Motor 40A ESC Radiolink
Description: – The board integrates with PX4FMU+PX4IO – Pixhawk is with new 32 bit chip and sensor technology Features: – Advanced 32 bit CortexM4 ARM high performance processor, can run RTOS NuttX real time operating system; – 14* PWM/ actuator output; – Bus interface (UART, I2C, SPI, CAN); – Integrated backup power supply and failure backup controller, the main controller can be safely switched to backup control; – Provide automatic and manual mode; – Provide redundant power input and fault transfer function; – Color LED lamp; – Multi tone buzzer interface; – Micro SD to record flight data; Processor: – 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit – Main frequency: 256K, 168MHZ RAM – 32 bit STM32F103 backup co processor Sensor: – L3GD20 3 axis digital 16 bit gyroscope – LSM303D 3 axis 14 bit accelerometer /magnetometer – MPU6000 6 axis accelerometer / magnetometer – MS5611 high precision barometer Interface: – 5* UART, 1*compatible high voltage, 2*hardware flow control – 2* CAN – DSM/DSM2/DSM-X satellite receiver compatible input – Futaba SBUS compatible input and output – PPM signal input – RSSI (PWM or voltage) input – I2C – SPI – 3.3 and 6.6VADC input – External USB MICRO interface Specifications for transmitter: FULL TYPES AND FUNCTIONS Suit for all airplanes including helicopter 8 swash plate models, fixed wing 2 airfoils 3 rears, gliders 4 airfoils 2 rears and aircraft. FAST RESPONSE It takes 3ms only for 9 channels to response parallel, which is less than the average time 20ms. SUPER STABLE AND LONG DISTANCE OPERATING DSSS spread spectrum mode supplies better performance in anti-interference . QPSK modulation mode. Actual measurement: 900 meters ground and 1.5kms air. DATA TELEMETRY Adopt two-transmission technology of Radiolink AT10 10CH radio control, support signal strength, receiver voltage monitored, and extending battery voltage, temperature, motor RPM, GPS etc. VIBRATION ALARM Vibration alarming is used to avoid any ignorance in a noisy condition, assure a safe flight. CHINESE AND ENGLISH MENU Bilingual menu, Chinese and English. S-BUS SUPPORT R9D support and compatible with FUTABA S-BUS. No matter for 3 axis control system or aircraft controlling S-BUS, AT9 is perfectly used. No need for too many cables and too much weight. FIRST CONTROL SYSTEM CONTAINING MENU OF AIRCRAFT Most players use plane or helicopter menu to set when they are playing multi-copter. AT9 brings aircraft menu into the system, which supplies a better and simple way for multi-copter. HIGH SECTION PRECISION 4096 RUDDER SHAKE FREE 4096 section precision. 0.25us per section. Servo anti-shake rudder. NAVIGATION MENU Navigation menu offering next step, simplified the operating and setting. USB UPDATING Updated by a USB cable on the company website, which keeps all time the most advanced system and program. Package listing: 1* 1000 carbon firber 8-axis frame 8* 350KV Brushless Disk Motor high Thrust With Mount 8* 40A Brushless ESC Speed Controller 5* Three-hole High Quality Carbon Fiber 15×5.5 1555 Propeller (pair) 1* Multifunction Power Distribution Board 1* 5pcs 10cm Servo Receiver Extension Lead Wire Cable 1* GPS Folding Antenna Mount Holder 1* Mini M8N GPS Module NEO-M8N GPS 1* PX4 PIX 2.4.8 32 Bit Flight Controller 1* USB data cable 24* 3.5MM banana connector 1* Radiolink AT9 2.4GHz 9 Channel Transmitter with Radio R9D Receiver (Only the Full Kit include the transmitter and reciever) 1* 2.0MM screwdriver 1*2.5MM screwdriver
1*tool kit(tie and T plug)
