DIY Drone ZD850 Frame Kit APM2.8 Flight Control M8N GPS Flysky TH9X Remote Control 3DR Telemetry Motor ESC for RC FPV Hexacopter

80 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 469.99 / piece
Sale Price:  $ 427.69 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Note : Product is DIY Version, Unassembled Kit and NO Manual, Please take it into account before ordering. Our technicist will help client to weld the some wiring for ESC and we will test all electronic parts before shipment. If any Technical questions, Please message us but do not open dispute or leave negative feedback. Note: The item do not include Battery!

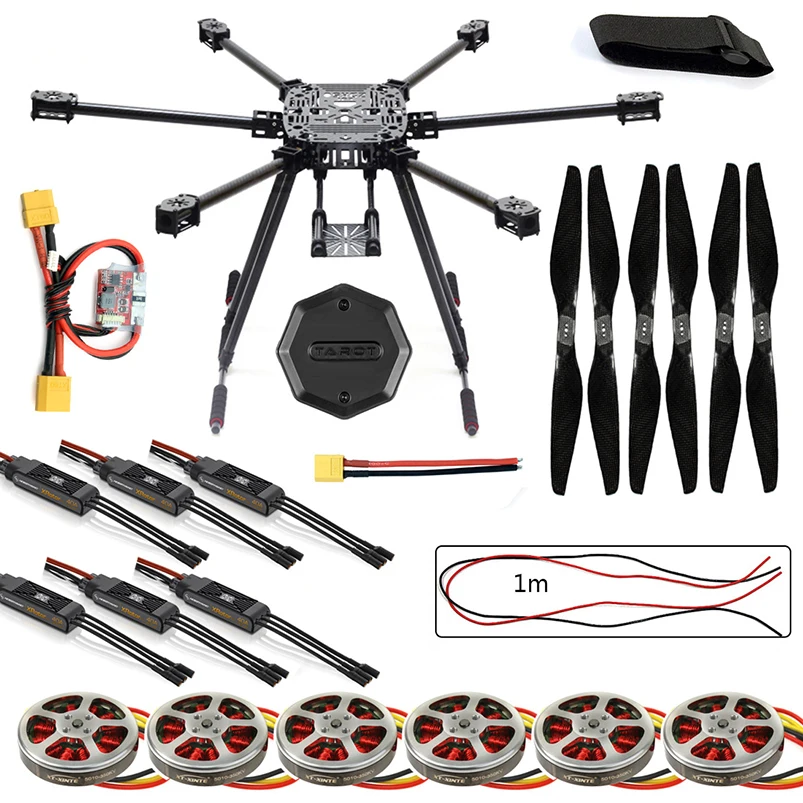

Product Listing :

1.ZD850 Full Carbon Fiber Frame Kit with Unflodable Landing Gear Foldable Arm *1

2.350KV Brushless Disk Motor high Thrust With Mount *6

3.HobbyWing XRotor-Pro-40A ESC*6

4.Suitbale for APM2.8 2.6 2.5 2.52 and PIXHAWK Power Module*1

5.Tarot TL2909 6-axle Hub *1

6.Three-hole High Quality Carbon Fiber1555 CW CCW Propellers *3 Pairs

7.APM2.8 APM 2.8 No Compass Flight Controller Board Bent Pin with Case *1

8.Mini M8N GPS Module NEO-M8N GPS *1

9. 10cm Servo Receiver Extension Lead Wire Cable M/M *1

10. CNC GPS Anti-interference Antenna Mount Holder Stent Case *1

11.3DRobotics 3DR Radio 433MHz Telemetry Kit *1

12. Flysky 2.4G 9ch FS FS-TH9X Transmitter & Receiver Combo*1

13.1m Black and Red 16AWG Silicon Wire Connecting Wire * 1

14. 4X Hook & Loop Fastening Tape *1

15.XT60 Male with 14AWG Wire 10cm *1

——-APM 2.8 No compass Flight Control ——–

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you’re not ready, then We recommend that you prepare some introductory information first.

Introduction:

Eliminate V2.52 Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass , more convenient to connections GPS with external compass.
Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme. Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.
New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.

Features:

– Arduino Compatible!
– Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
– Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
– Onboard 4 MegaByte Dataflash chip for automatic datalogging
– Optional off-board GPS, uBlox LEA-6H module with Compass.
– One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
– Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
– Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

1. data transmission port
2. analog sensor port
3. autostability gimbal output
4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor)
5. USB port
6. remote control input
7. function selection jumper
8. GPS port
9. 12C external compass port
10. ATMEGA32U2 SPI online programming port
11. multifunction configurable MUX port (OSD is the defaulted output)
12. current voltage port
13. ESC power supply selection jumper
14. ESC output port

———————-3DR Telemetry Kit ————-

– Very small size – Light weight (under 4 grams without antenna) – 433 MHz – Receiver sensitivity to -121 dBm – Transmit power up to 20dBm (100mW) – Transparent serial link – Air data rates up to 250kbps – MAVLink protocol framing and status reporting – Frequency hopping spread spectrum (FHSS) – Adaptive time division multiplexing (TDM) – Support for LBT and AFA – Configurable duty cycle – Built in error correcting code (can correct up to 25% data bit errors) – Demonstrated range of several kilometers with a small omni antenna – Can be used with a bi-directional amplifier for even more range – Open source firmware – AT commands for radio configuration – RT commands for remote radio configuration – Adaptive flow control when used with APM – Based on HM-TRP radio modules, with Si1000 8051 micro-controller and Si4432 radio module

APM is an open source flight control, can you play APM well depend on individual ability. Player must have ability of basic understanding of monolithic integrated circuit, c-language, knowledge of electrical,mechanical, and also needs a certain degree of mental capacity, financialand material resources, energy support.If you’re not ready, then We recommend that you prepare some introductory information first.

Introduction:

Eliminate V2.52 Version Old 1.0mm 6P SM06B GPS interface , changed to the DF13-4P compass external I2C interface, Place the DF13-5P GPS interface with external interfaces of the compass , more convenient to connections GPS with external compass.
Replaced the V2.52 I2C interface to multi-purpose MUX interfaces, which can be used by the users themselves through the Pad of Back Board freely configurable function output, UART0,UART2,I2C,OSD optional, defaults OSD interface, avoiding 2.52 version when you want to use both Data Transmission and OSD, you need to use Y-line separating the interface programme. Improved OSD interface when used in conjunction with Data Transmission, because of the isolation resistance, more effective to avoid the interference of Data Transmission.
New V2.8.0 use United States semi-LP2985-3.3, pressure-resistant up to 16V, increased reliability, reduced probability of Bad Gyro health due to voltage problems.

Features:

– Arduino Compatible!
– Can be ordered with top entry pins for attaching connectors vertically, or as side entry pins to slide your connectors in to either end horizontally
– Includes 3-axis gyro, accelerometer and magnetometer, along with a high-performance barometer
– Onboard 4 MegaByte Dataflash chip for automatic datalogging
– Optional off-board GPS, uBlox LEA-6H module with Compass.
– One of the first open source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
– Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
– Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and usb functions respectively.

1. data transmission port
2. analog sensor port
3. autostability gimbal output
4. ATMEGA2560 SPI online programming port (be useful for optical flow sensor)
5. USB port
6. remote control input
7. function selection jumper
8. GPS port
9. 12C external compass port
10. ATMEGA32U2 SPI online programming port
11. multifunction configurable MUX port (OSD is the defaulted output)
12. current voltage port
13. ESC power supply selection jumper
14. ESC output port

Thank you for you choose our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .
