DIY Drone Upgraded Full Kit S500 PCB 1045 3 Propeller 4 Axle Multi QuadCopter RTF ARF
Click to see details
DIY Drone Upgraded Full Kit S500 PCB 1045 3 Propeller 4 Axle Multi QuadCopter RTF ARF

DIY Drone Upgraded Full Kit S500-PCB 1045 3-Propeller 4 Axle Multi QuadCopter RTF/ARF with 10ch TX / RX 3300Mah Lipo F08191-C

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 333.98 / piece
Sale Price:  $ 287.22 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

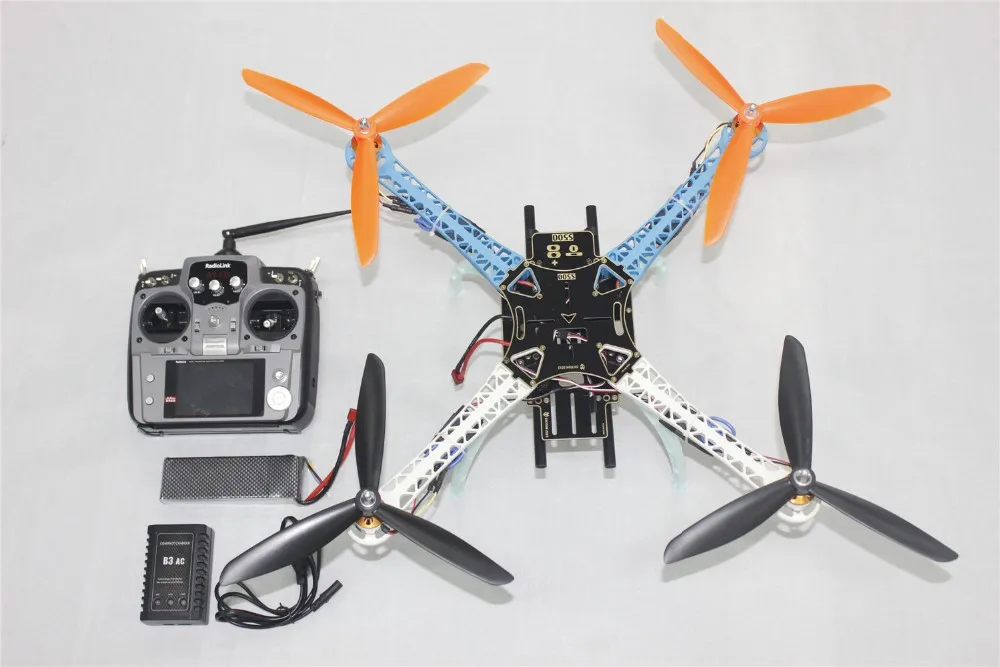

Drone Upgraded Full Kit S500-PCB 1045 3-Blade 4Axle Multi QuadCopter UFO RTF/ARF with 10ch TX/RX Packing including : 1X 500mm Multi-Rotor Air Frame Kit S500-PCB 4X A 2212 A2212 1000KV Brushless Outrunner Motor 4X30A Brushless ESC 2*1045 3-blades 1*RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D 1XB3 AC LiPo 3S Battery Balance Charger 1X3300Mah 11.1V 25C battery Detail: 500mm Multi-Rotor Air Frame Kit S500-PCB Features: – Wheelbase: 500mm – F450 upgrade quadcopter – Learned arm design from DJI S800 EVO – High strength plastic material, stable and reliable – Color: Black and Blue – Frame only with Circuit Board, no electronic parts. – Suit for brushless gimbal FPV(NOT INCLUDED) 30A Brushless ESC 1 Specification 1.1 Output: Continuous 25A, Burst 40A up to 10 Secs. 1.2 Input Voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery. 1.3 BEC: 3A 1.4 Max Speed: 210,000rpm for 2 Poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM. A 2212 A2212 1000KV Brushless Outrunner Motor KV: 1000 Max Efficiency: 80% Max Efficiency Current: 4-10A (>75%) Current Capacity: 12A/60s No Load Current @ 10V: 0.5A No. Of Cells: 2-3 Li-Poly Motor Dimensions: Φ27.5 x 30mm Shaft Diameter: Φ3.17mm 1045 3-Blade Propellers that have several different color , we will ship at random color RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D ship at random color RadioLink AT10 2.4GHz 10CH Remote Control System 10 Channel Transmitter Receiver R10D Technical Parameter: 1. Dimension:18×9.5×22cm; 2. Weight:0.95kg; 3. Frequency:2.4GHz ISM band(2400MHz~2485MHz); 4. Modulation mode:QSPK; 5. Channel bandwidth:5.0MHz; 6. Spread spectrum:DSSS; 7. Adjacent channel rejection:>38dBM; 8. Transmitter power: <100mW(PCB testing), <20dBm(3 meter air testing); 9. Operating Voltage:8.6~15V; 10. Operating Current:<95mA; 11. Control distance:800 meters ground; 12. Channel:10 Channel,8~10 channel are customizable; 13. Compatible model: Include all 120 degree and 90 degree swashplate helicopter,all fix wing and glider,five flying model; 14. Simulator model:under the simulator model the transmitter action turn off,change to power saving model; 15. Screen:16 colorful screen,size 78×52mm,320*480 pixel. B3 AC LiPo 3S Battery Balance Charger 11.1V 25C 3300 Mah battery

Average Star Rating:
0 out of 5 (0 Ratings)
Name Rating Feedback
Shipping Company Shipping Cost Estimated Delivery Time
DHL 3 - 7 days
UPS Expedited 3 - 7 days
EMS 5 - 14 days
Post Air Mail Free Shipping 15 - 45 days
Return Policy If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.

N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.
Seller Service On-time DeliveryIf you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
