DIY RTF Kit 2.4GHz Wireless WiFi Transmission APM2.8 Flight Control M7N GPS One Key Return Headless Mode RC Quadcopter Drone

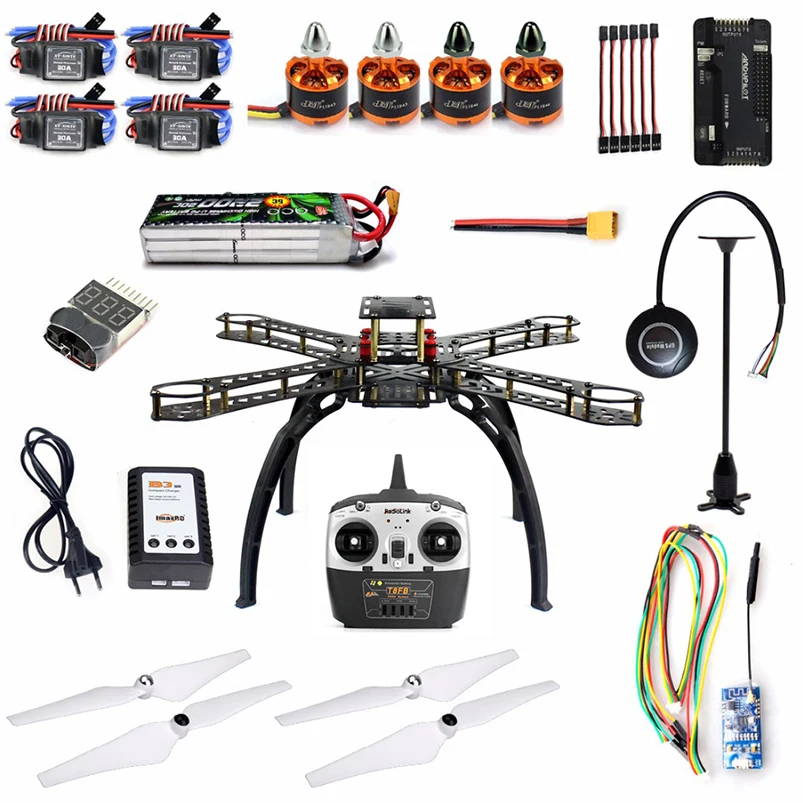

>Package include <
380 mm Wheelbase FiberGlass Alien Across Mini Quadcopter Frame Kit*1
APM2.8 with Comapss Flight Controller Board Bent Pin with Case *1
UBLOX NEO-7M 7M GPS Module with Compass *1
ACE 2200mAh 3S 11.1V 20C battery *1
Simonk Firmware 30A ESC Electric Speed Controller *4
920KV CW Brushless Motor *2
920KV CCW Brushless Motor *2
T8FB 2.4GHz 8ch RC Transmitter R8EF Receiver * 1
IMAX RC B3 Pro Compact Balance Charger *1
Universal GPS Folding Antenna Mount Holder Metal *1
5pcs 10cm Servo Receiver Extension Lead Wire Cable M/M *1
10CM XT60 14AWG Wire *1
XT60 Bullet Connectors Plugs *1
5X Hook & Loop Fastening Tape *1
Thick Gold Plated 3.5mm Bullet Connector ( banana plug ) *12
Wireless Wifi Module APM Pixhawk Radio Telemetry Transmision *1
1 Pair 9443 Nylon Self-Tightening CW CCW Propeller Pros *2
Lipo Battery Voltage Tester 1S-8S Low Voltage Buzzer Alarm *1
Frame Kit : Shaft :380mm , L*W*H : 320*320*200M
Flight Time : About 13mins ( suggest to buy 4400mah battery to extend flight time )
Flight Control /GPS : APM2.8 / M7N GPS
Image Transmitter : No ( can be upgraded FPV )
Flight Distance : ≤1000M in the Sky ( Depends on enviromental , outdoor to fly )
Remote control : 8CH , Mode 1 /Mode 2 to options ( defaults Mode 2 )
Wireless Digital Transmission : 50m on the Ground ,64/128/152 bit WEP encryption. The use of mobile phones, tablet, computer as receiver, cross-flight control of the flight attitude and the data information on Live
Battery: XT60 Plug ,2200mah 3S 11.1V 20C
Frequency : 2.4GHz (2400MHz-2483.5MHz)
Load : About 1.5kg
Flight Control :
Mission Planner : http://ardupilot.org/planner/index.html
(Note : If you don’t know how to use APM flight Control , please contact us in advance or Google the APM functions before you Calibration it ,thank you )
>Product Functions <
1.Rise ,drop ,Hover, forward, back, turn left, turn right, left fly, right side fly, self-stabilization, set high, one key return, headless mode, fixed point, a key landing (above function has been set before send ), the ratio control Acro (novice with caution), automatic mode (AUTO), winding, guidance, follow mode. (Above functions to set by yourself)
2.wireless wifi digital transmission module can be connection Mission Planner to calibration and write parameters.
3. The aircraft body is made of high strength and drop resistant plastic ,durable.
4. the alarm voltage has been set to 3.6v. When the voltage lower than 3.7v, the alarm will alarm automatically .
5.APM2.8 match 7MGPS, will fast search star , cold start speed higher than 6M, 6H twice , Positioning accuracy 2.5M, built-in high-precision electronic compass, 56CH U-blox 7 engine.
6. Carbon fiber paddle, the advantages of light, high hardness is not easy to deformation, the efficiency is better than plastic blades.( Need to do static balanceby yourself )
7. With instructions,operation Simply ,needn’t to do cumbersome flight control commissioning, easy to assemble up to fly.
> Q & A<
Q : Flight Control , GPS and Receiver , How to Calibration GPS and Flight ???
A: they are connected before we ship the parcel to you , GPS ,Flight Control and Remote Control , that be calibration and tested , you just only need to assembly it acccording to Instruction .
Q: Can i change the Motor ,ESC and propellers ? what type items that i can replacement ?
A: Sure .Recommend 900KV-1000KV Motor; 35A-25A ESC .Propellers : 10inch -8inch ( please choose square paddle propellers if possible)
Q: Can i install Gimbal and FPV ?
A: Yes , Recommend Sports camera with 2-aixs Gimbal
Q: This kit solder before you send ? can you assembly it for me ?
A:we will solder Motor , ESC with Banana connector and ESC with electric Board , if you need us to assmbly it before delivery , maybe need to pay extra cost , thank you .
Q: How capacity Battery can i use ?
A: This ESC Support is 3S-4S , recommend the most 5000mah
Q: Cani change remote control ?
A: Yes ,We also set up all the auxiliary flight mode for you, but it would be different from the manual, we will set the stall information promptly to notify you .
Q: Indorr can be fly this drone ?
A: No , please go to Outdoor and far away the people and places where have interference
Thank you for you choose our product , we are trustworthy ,if you have any questions ,please message us freely , we would like to try our best to solve your issue .
