DCC LOCO DECODER FOR HO & N SCALE MODEL TRAIN with 4 Function with 9 Wire and Stay Alives Wires 860014/LaisDcc Brand/PanGu Serie

Whole seller/Ebay agent wanted/OEM available

We have buy package insurance, if this package lost or did not delivery to you in time. You can make a dispute to get the money back. And choose the reason you did not receive the package. If you did not make a dispute when you not receive the package in time, Aliexpress will not accept to return the money.

Customs Declaration:

Please note that buyers are responsible for all additional customs fees, brokerage fees, duties and taxes for importation into your country. But we will make low value declare, each package will be declared less than 10USD no matter how many piece you ordered. And if you want us to declare as your value, please contact with us for it.

How to buy:

Resellers or agent with bulk order:

Contact with us. We offer discount for resellers with big order.

Payment:

If you cannot make the payment via Aliexpress, please contact with us.

Follow us on the Social:

Facebook/Twitter

User Manual, CV List and other documents you can find our our website.

Current rating:

2 Amp peak power, 1A continuous in all, Each Functions maximum 100mA.

Loco Scale:

Good for HO & N scale

Model and Order Number:

860014

Function:

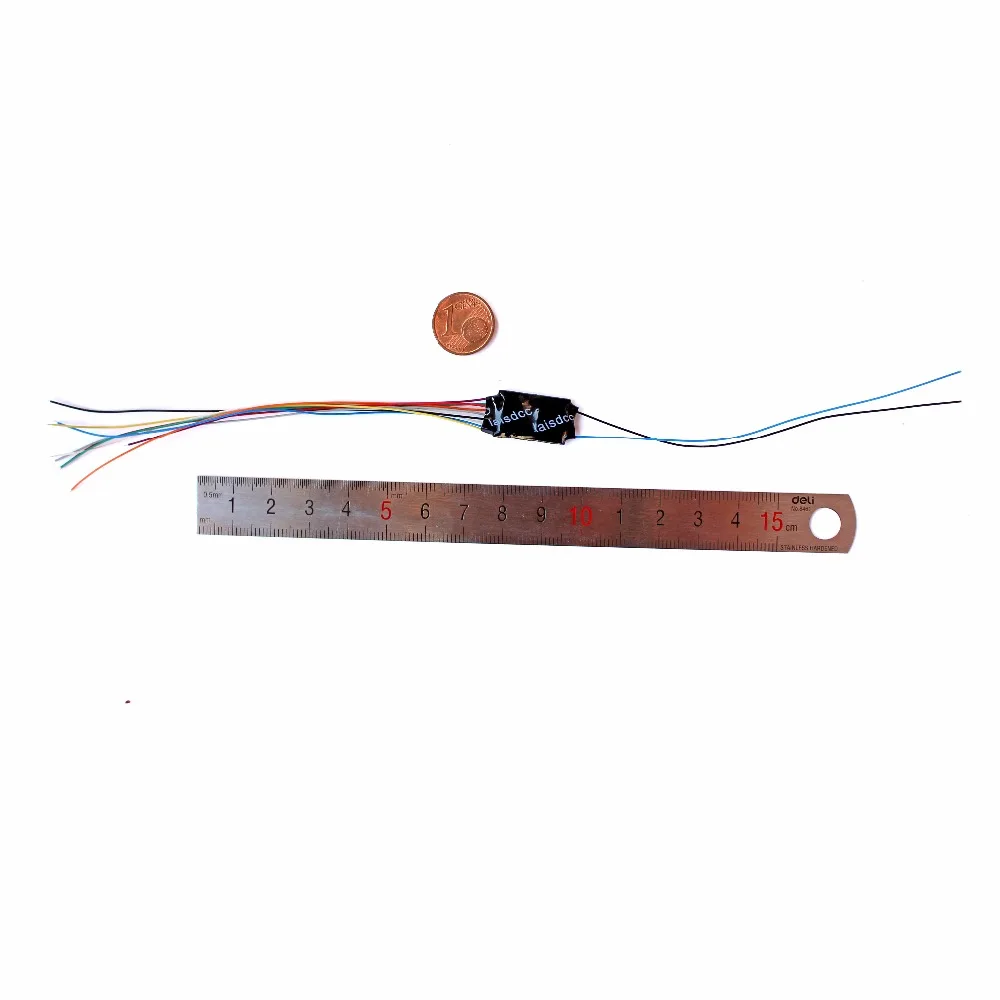

DCC LOCO DECODER FOR HO & N SCALE MODEL TRAIN with Blue and black stay alive wire, interface is 9 wires, with 4 Function

Dimensions:

18mm*12mm*3mm

OEM/ODM:

OEM/ODM is available, Contact with us.

Confirmation & Delivery:

• When you receive our products, kindly test it soon, then confirm it at once.
• If you did not receive the package in the time, you can ask for money return via Aliexpress. Because we use Aliexpress logistics, Aliexpress will return the money back to you at once, they And the make a new order directly. Aliexpress will responsible for the lost. And you can make a new order at once.
• If you received the products and the products not working, we will able to send a new one for free. We do not accept money return without contact with us. If yes, you will be in our blacklist and we will not sell to you anymore.
• If you have any problems, you are free to contact us before leaving any negative feedback.

TROUBLESHOOTING:

Nothing can go too badly wrong if the loco ran well before conversion, the decoder has been installed correctly and you pre-checked your installation on the program track as we advised, before putting it on the main line!

Nothing Happens:

* Have you selected the address? If it’s a new decoder it will be 3. If you did it a while ago & you can’t recall its number then go to the program track & reset the decoder (CV8= 4). it will now be #3.

* If it is not reading or running and you KNOW the address, be sure that it’s not suffering from loco failure or a short circuit in the wiring or it will be damaged.

Light / functions will not work!

* Have you turned the lights ON with Function 0 (zero) and also used the direction switch, remember white and yellow functions are both always directional by default.

* Have you perhaps wired the LED back to front?

* Did you add a resistor? If not you may have blown the LED! (the function will still be OK).

Help – I think I must have made a CV setting mistake. Now it won’t work.

No problem! Just do a reset (CV8=4) and it will be back to the settings it had when you bought it.

It has got a big black hole in the heat shrink!

The only way this can happen is by incorrect wiring, overload or similar problem. You killed it, sorry!

If in Doubt, as a first step in checking decoders, always try a RESET by entering 4 into CV8

Note: Please noted this decoder only support our own brand LaisDcc 860007 Stay Alive kits.

Color VS Function:

Orange = Motor Right

Yellow = Reverse Headlight FL(F0R)

Green = Function 1

Black = Left Rail

Grey = Motor Left

White = Forward Headlight FL(F0F)

Blue = Function common positive

Red = Right Rail

Purple= Function 2

You need to connect a resistor 1K(1000ohm) 1/4Watt or 1.5K(1500ohm) 1/8 Wattother value in series when you use the function wires with LED to limit the current of led.
