CRIUS CO-16 OLED can fit all MWC flight control with I2C port
Little size and lightweight, good option as airborne display
Display Color: white
Display Size: 0.96″
Net Weight: 3.7g
Gross Weight: 4.9g (with connection wire)
Communication Interface: 12C 5V Signal Platform
Socket Type: Molex 1.25mm-4Pin
CO-16 OLED X1
4Pin connecting line X1 (about 100mm)
the plug to flight control is 4Pin JR plug, which is easy to adjust the line sequence and to fit all type flight control
01. MWC firmware version, aircraft mode, unlock status
02. Customizable start logo
03. Remote control signal input value
04. Gyro / Acceleration status
05. Signal period / I2C Error
06. GPS DATA — (in development)
07. Display Voltage & Current sensor (if have)

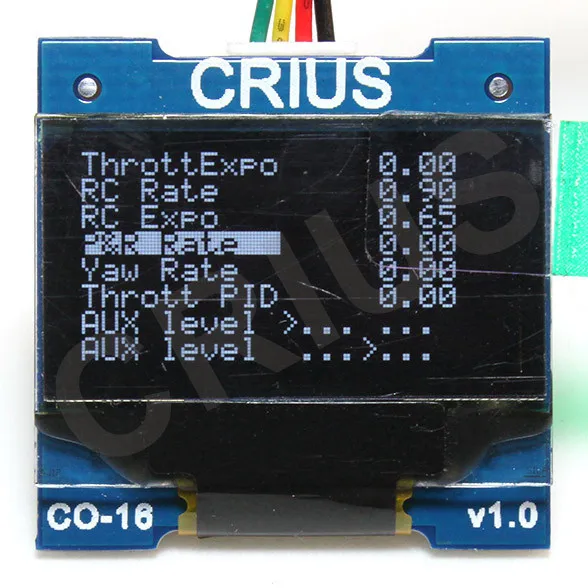

01. AUX switch settings
02. PID parameter adjustment
03. Thruttle softness & curve adjustment
First you need to make setting in the MWC firmware source code to make the CO-16 OLED work well.
01. Under display function, you can select automatic display different page content OR by joystick to do manual operation (can not do manual operation under locked throttle status)
02. To enter programming mode, must do it by joystick, which is same as LCD programming mode. Under lock status, keep throttle at the lowest position and push elevator (ch-4) to the higest position / push rudder (ch-3) to the right most, and then release joystick entirely, it will enter the programming status. And then you can select parameter item by elevator, set the parameter status by aileron. Programming mode, you can set the AUX On or Off in the firmware source code, and display or not for AUX 3/4 settings.
