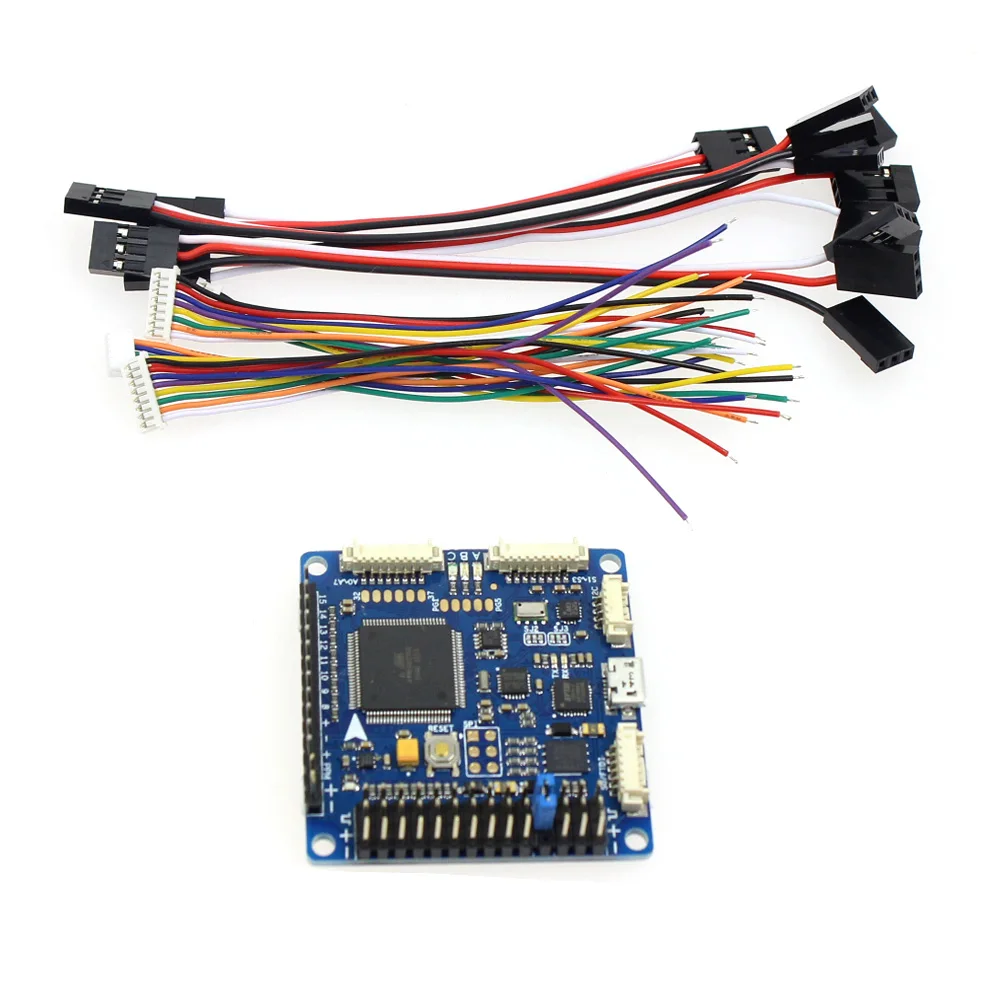

CRIUS ALL IN ONE PRO v2.0 AIOP RC Multi-Copter Flight Control Board for MegaPirate MWC ArduPlaneNG MultiWii F05385

94 % of buyers enjoyed this product!
Availability: in stock
Price :  $ 41.80 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share :

Details:

CRIUS ALL IN ONE PRO v2.0 AIOP RC Multi-Copter Flight Control Board for MegaPirate MWC ArduPlaneNG MultiWii

(X4 mode)

Features:
– Supported MegaPirateNG and MultiWii firmware
– Up to 8-axis motor output
– 8 input channels for standard receiver
– 4 serial ports for debug/Bluetooth Module/OSD/GPS/telemetry
– 2 servos output for PITCH and ROLL gimbal system
– A servos output to trigger a camera button
– 6 Analog output for extend device
– A I2C port for extend sensor or device
– Separate 3.3V and 5V LDO voltage regulator
– ATMega 2560 Microcontroller
– MPU6050 6 axis gyro/accel with Motion Processing Unit
– HMC5883L 3-axis digital magnetometer
– MS5611-01BA01 highprecision altimeter
– FT232RQ USB-UART chip and Micro USB receptacle
On board logic level converter
Match the standard of RoHS

– Flight mode for Multiwii
One of the following basic mode
– Acro
– Level
– Alt Hold
– Head Lock
– Optional mode
– HeadFree (CareFree)
– GPS Hold (Need GPS receiver or Extend Board)
– GPS Back to home position (Need GPS receiver or Extend Board)

– Flight mode for MegaPirate
– Acro
– Alt Hold
– Simple
– Loiter (uses GPS)
– Guided (uses GPS)
– Position (uses GPS)
– Circle (uses GPS)
– RTL (uses GPS)
– Auto(uses GPS)
– Follow Me(uses GPS)

– Input power selection
– One of the following way
– Connect 5V power cable from ESC or UBEC to the ESC/Servo port, the J1 jumper must be closed.
– Connect 5V~12V power cable to the extend power port, the J1 jumper must be removed.
When using Extend Board, AIO PRO must be powered from the extend power port.

General
– Dimension: 50mmX50mm
– Height: 11.6mm
– Weight: 14.2g
– Fixing hole spacing: 45mm
– Hole diameter: 3mm
