BS430 ESC 30A 4 in 1 BLHeli-S 3-6S Dshot ESC Omnibus F3 F4 Fly-tower Speed Controller for RC FPV Racer Drone F21084

98 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 36.10 / piece
Sale Price:  $ 27.80 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

BS430 ESC 30A 4 in 1 BLHeli-S firmware Dshot 3-6S Omnibus F3 F4 Fly-tower Speed Controller for RC FPV Racer Camera Drone F21084

BS430 Blheli_s 3-6S 4in1 ESC 4x30A OmnibusF3 F4 Fly-tower

The BS430 4in1 ESC 4x30A Race Version runs the newest BLHELI_S firmware, supports Dshot/Multishot/Oneshot42/Oneshot125, it offers the best performance in 35x35mm size.integrated. Current and voltage sensor
Works up to 30A each motor.

Specification:
BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
Supports 3-6S lipo input
4PWM input
Con. Current: 30A
Peak Current: 35A (10S)
Current and Voltage sensor
5V 3A BEC
Only 36x36mm, mount holes 30.5×30.5mm M3
NO External capacitors needed
Compatible for Omnibus F3 F4, easy to assembly a Fly-tower with it

Features:
-BLHeli_S is designed for superior performance in FPV Racing, and uses hardware generated motor pwm for smooth throttle response and silent operation.
-The code supports regular 1-2ms pulse width input, as well as Oneshot125 (125-250us), Oneshot42 (41.7-83.3us) and Multishot (5-25us) and D-shot .
– The input signal is automatically detected by the ESC upon power up.
– All codes use damped light mode. Damped light does regenerative braking, causing very fast motor retardation, and inherently also does active freewheeling
– The code supports features to prevent sync loss. There are tune-able parameters that can make the code run well even in the most demanding situations, although default settings will work
– excellently in normal operating environments
– The code also supports a beacon functionality, where the ESC will start beeping after a given time of zero throttle. This can be very useful for finding lost crafts.

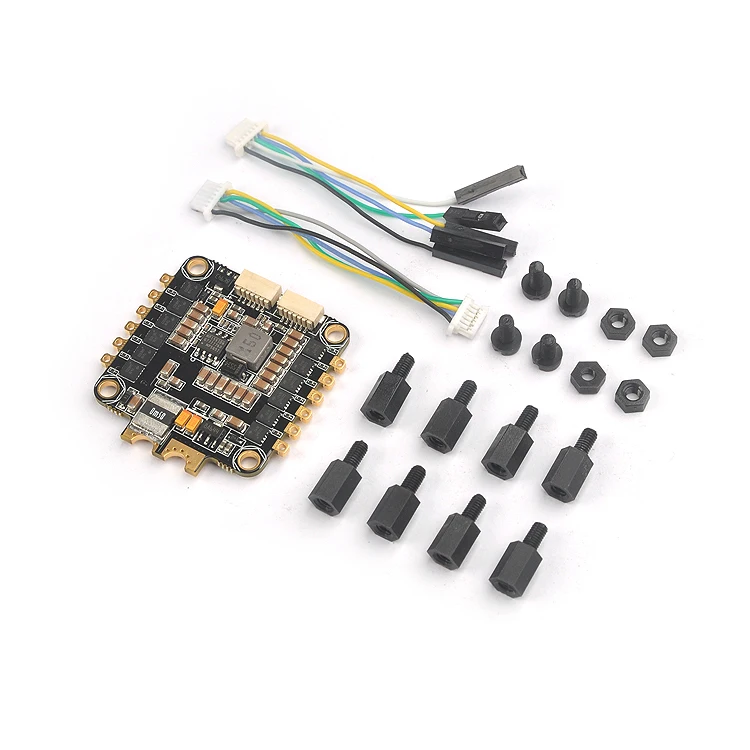

Package include:
BS430 ESC x 1
Cable x 2
M3 Nylon screws x 4
M3 Nylon column x8
M3 Nylon nut x 4
