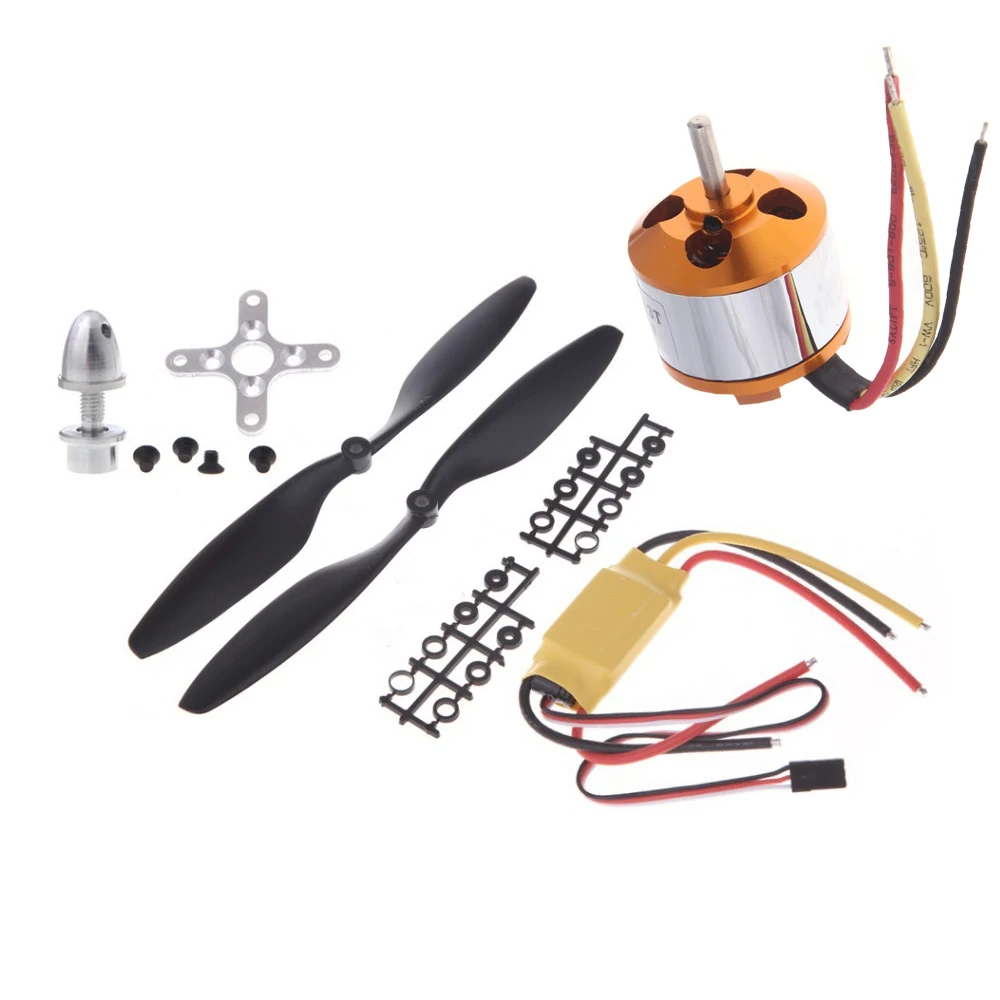

A2208 1100KV/1400KV/2600KV Brushless Outrunner Motor+30A ESC+1045 Propeller
– Shaft diameter: 3.17mm
– Dimension : 27.8mm x 23mm
– Recommended Propeller: 2-cells 10x 4.7 , 3-cells 9×4.7
– Weight: 36g
KV Value(RPM/V): 1400
Motor Diameter(mm): 27.8
Motor Length(mm): 23
No-load Current(A): 0.5
Ni-MH or Ni-Cd Battery(cell): 6-9S
Li-Po Battery(cell): 2-3S
Max Instantaneous Current (A): 8
Working Current (A): <6
Shaft Diameter(mm): 3.17
Banana Plug Diameter(mm) : 3.5
Max Pull (kg): 0.3
Recommended Propeller (inch): <8×4
Number of Poles: 14
Model: A2208 KV2600 brushless motor
Shaft diameter: 3.17mm
30A Brushless ESC:
Output: Continuous 30A, burst 40A up to 10 Secs.
Input voltage: 2-4 cells lithium battery or 5-12 cells NiCd/NIMh battery
BEC: 2A / 5V (Linear mode).
Max speed: 210,000rpm for 2 poles BLM, 70,000rpm for 6 poles BLM, 35,000rpm for 12 poles BLM.
(BLM: Brushless Motor)
Size: 45 * 24 * 11mm / 1.8 * 0.9 * 0.4in
Weight: 25g / 0.9oz
Item total weight: 480g / 1.06Lbs
Rotor diameter 25.4CM
With paddle pad 3MM 4MM 5MM 6MM 7.8MM
Applicable Four aircraft or multi-rotor
Dimensions: 10 x 4.5
Weight: 7g (about / single)
Center Hole Diameter: 6.0mm (can be adjustable ring adjustable)
Centre Block thickness: 9.7mm
Adapt Wheelbase: 550mm – 700mm
Matching motor: 800KV-1100KV
