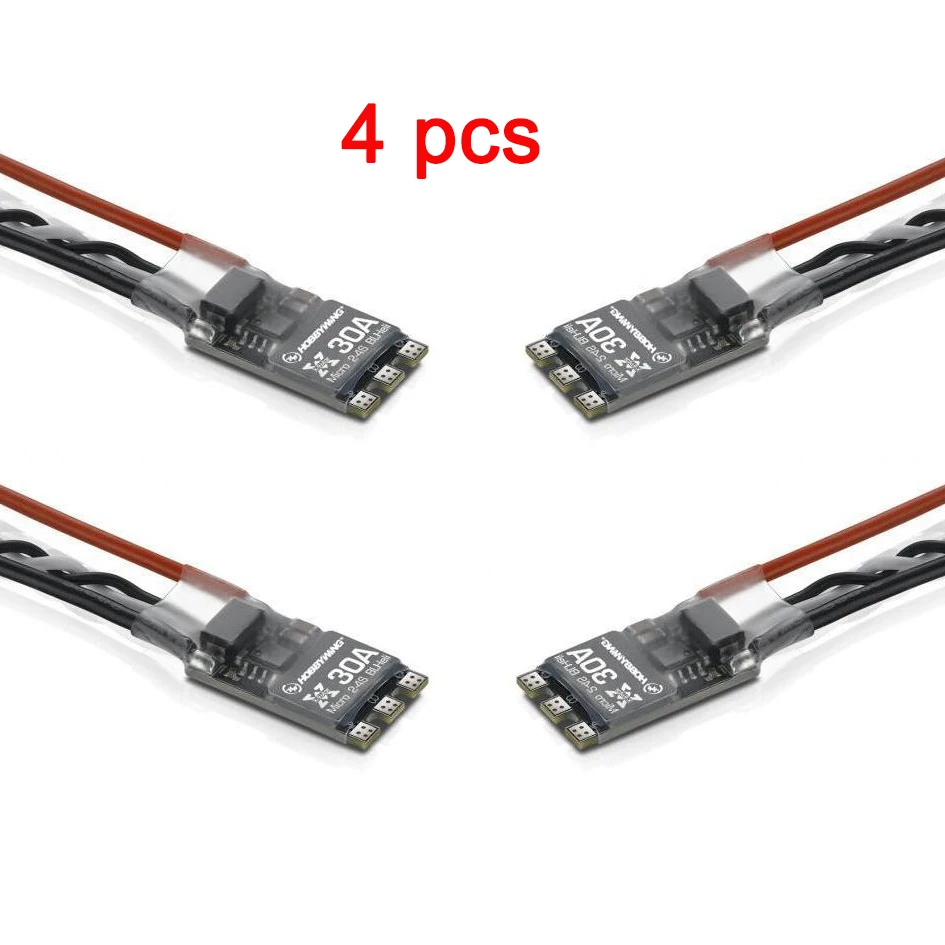

4PCS Hobbywing XRotor Micro No BEC 20A 30A 35A BLHeli Mini ESC Support OneShot125 w Wires
Click to see details
4PCS Hobbywing XRotor Micro No BEC 20A 30A 35A BLHeli Mini ESC Support OneShot125 w Wires

4PCS Hobbywing XRotor Micro No BEC 20A / 30A / 35A BLHeli Mini ESC Support OneShot125 w/ Wires for FPV Racing Drone

60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 56.99 / lot
Sale Price:  $ 53.00 / lot
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

4 PCS Hobbywing XRotor Micro No BEC 20A / 30A / 35A BLHeli Mini ESC Support OneShot125 w/ Wires for FPV Racing Drone

Please Note : When you try to calibration throttle ,please take off propeller , in case the accident .

Features

1.The use of F396 48MHz MCU, 3-in-1 drive IC, High quality MOSFETs 48MHz operating frequency .

2. Use BLHeli open source, through the throttle signal line upgrade or change parameters, support BLHeli full functionality.

3. The smaller size, lighter weight, easy installation. 4. ESC supports plain throttle mode (that is, the throttle signal is 1100μs ~ 1940μs) and OneShot125 throttle mode (that is, the throttle signal is 125μs ~ 250μs); 5. The throttle signal line is a twisted pair, effectively reducing crosstalk in signal transmission generated from a copper wire, so that more stable flight; 6. The normal throttle mode supports up to 500Hz refresh rates up to throttle signal, and is compatible with a variety of flight control;

Product Name : Hobbywing XRotor 20A ESC

Spacification

Con./Peak.Current : 20A/30A

BEC : NO

Lipo: 2S-4S

Weight : 6.8g

Size : 24*13.9*5.5 mm

Wires & Connectors

Input Wires: Red-20AWG-100mm*1; Black-20AWG-100mm*1

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 130-280mm Diagonal Wheelbase

Product Name : Hobbywing XRotor 30A ESC

Spacification

Con./Peak.Current : 30A/40A

BEC : NO

Lipo: 2S-4S

Weight : 6.8g

Size : 24*13.9*5.5 mm

Wires & Connectors

Input Wires: Red-18AWG-100mm*1;Black-18AWG-100mm*2

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 130-280mm Diagonal Wheelbase

Product Name : Hobbywing XRotor 35A ESC

Spacification

Con./Peak.Current : 35A/50A

BEC : NO

Lipo: 3S-6S

Weight : 9.5g

Size : 26.5*16.7*5.5 mm

Wires & Connectors

Input Wires: Red-18AWG-100mm*1;Black-18AWG-100mm*3

Output Wires: No wires but solder tabs

Input Connectors: No

Output Connectors: No

(Note: All the wire length above is the original length not the length you see from the outside.)

Features

Throttle Range Calibration: Supported

Stick Programming: Stick Programming/BLHeliSuite

DEO: Not Supported

OneShot Mode: Supported

Timing: Supported

Light Color: Not Supported

Motor Rotation: Supported

Suitable

FPVs with 150-330mm Diagonal Wheelbase
