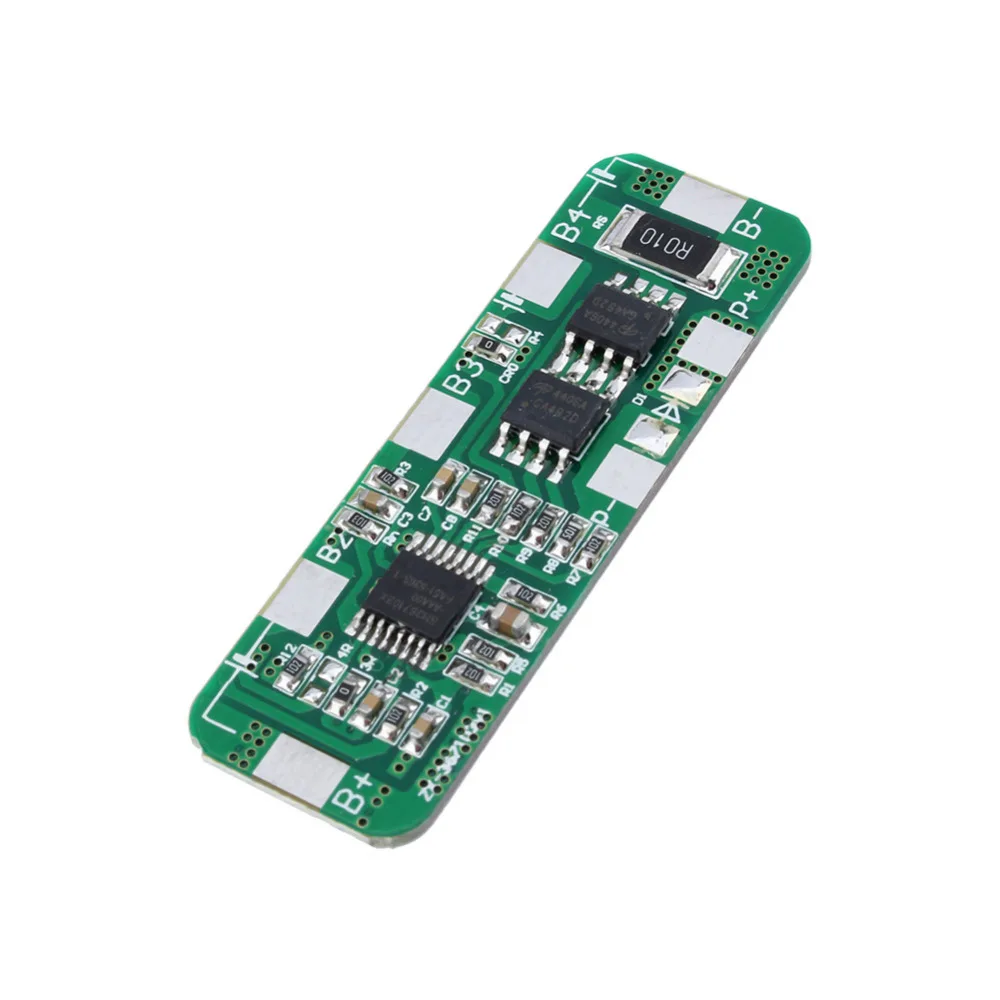

4A-5A PCB BMS Protection Board for 3 Packs 18650 Li-ion lithium Battery Cell 3S 2PCS
Have overcharge, discharge, over current, short circuit protected function, use as in a variety of capacity of 3.7 V lithium batteries. Adopt NSK protected IC, VISHAY, AOS, IR high quality MOSFET, FR – 4 plank, low temperature coefficient and excellent design, fine workmanship,complete testing. Small size, suitable for many occasions with high integration, low cost requirements, ensure the battery pack absolutely safe and reliable
– Built-in high precision voltage detection circuit.
– Connect to the charger terminals which using high pressure device.
– Built-in three over current detection circuit (1 over current, 2 over current ,load short circuit)
– Through the MOS tube ,it can control the battery charging and discharging;
– Low standby current consumption
Properties of the lithium battery protection board
Model: HH – P3-10.8
Charging voltage range: 4.25-4.35 v±0.05v
Size: 48 * 15 * 1.0 mm
Discharge voltage range: 2.5-3.0V±0.05v
Maximum working current: 3A
Working temperature: – 40 — +50C
Maximum instantaneous current: 4-6A
Storage conditions: – 40 — +80C
Static electricity: less than 6 uA
Useful life time: more than 50000 hours
Resistance: less than 45 m Ω
Short circuit protection: can protect,need charging
Connect the lithium battery with protection board according to the wiring diagram, when the battery voltage is between the charging pressure and discharge voltage, and the P +, P – charging after 1 seconds,the output voltage P + and P – is the same as the battery voltage.
After connect to the battery correctly, If no voltage for output end, please use charger to activated the protected board.
2 x protected board
