Four-Channel infrared detection tracing sensor Black and white line recognition
Four-Channel infrared detection tracing sensor Description:
This four-channel infrared detection tracing sensor is to provide a solutions of multi-purpose infrared detection system for robot chassis,robots and other automated machinery. The infrared transmitter and receiver tubes discrete components to form a probe,and use the LM339 voltage comparator as the core of the device in the control circuit.This system has a variety of detection can be great to meet the customer a variety of automation,intelligent small-system applications.
Four-Channel infrared detection tracing sensor Applications
Warning: This module has not been testing with the industrial level and above-level,this module is limited to civil,can not be used in industrial-grade or higher level of use of the environment and places,This module only apply to civil the field of environment and occasions.
Intelligent wheeled vehicles and intelligent tracked vehicles
1, line patrol 2, the obstacle avoidance
Intelligent small robots and intelligent small robot 1, material testing
2, the hue detection
3, the gray-scale detection
Easy to install, easy to use 4-way to work independently, to work an unlimited number.
The control board and the probe separated, The installation location unrestricted.
Module height ≤ 10 mm
Safe operating voltage range: 3 V – 6 V
4-way full work current: 30mA – 55mA VCC, GND: power supply terminal
IN (1-4), OUT: probe and the control board connector
OUT1, OUT2, OUT3, OUT4: the corresponding output
LED1, LED2, LED3, LED4: the corresponding output instructions
R1, R2, R3, R4: corresponding comparison voltage regulator Outputs are open collector, onboard 5.1 kohm pull-up resistor
Test probe: Remove all objects in front of the probe and the probe is not to point the direction of the sun. Measured the output voltage with a multimeter when connected to the power. At this point the voltage should be about 1 volt. Use White paper block before the probe. The voltage Should be close to the power supply output voltage.
Probe plate test: Use the Probe which have been test good connect to the Input terminals of the board, remove all objects in front of probe, and the probes do not point to the sun direction. Connect power with the board, Test the output terminals with the Multimeter, And the output voltage should be close to the power supply voltage, Block the probe with white paper, the output voltage should be close to 0 volts, adjust the channel potential can change the detection distance.

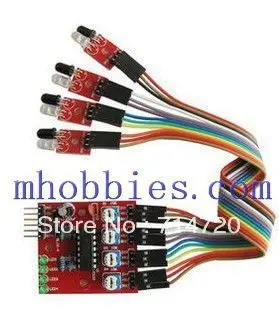

Four-Channel infrared detection tracing sensor Black and white line recognition use for 4wd robot chassis
Four-Channel infrared detection tracing sensor Black and white line recognition use for 2wd robot chassis
Four-Channel infrared detection tracing sensor Package including:
1pcs x Four-Channel infrared detection Tracing sensor
