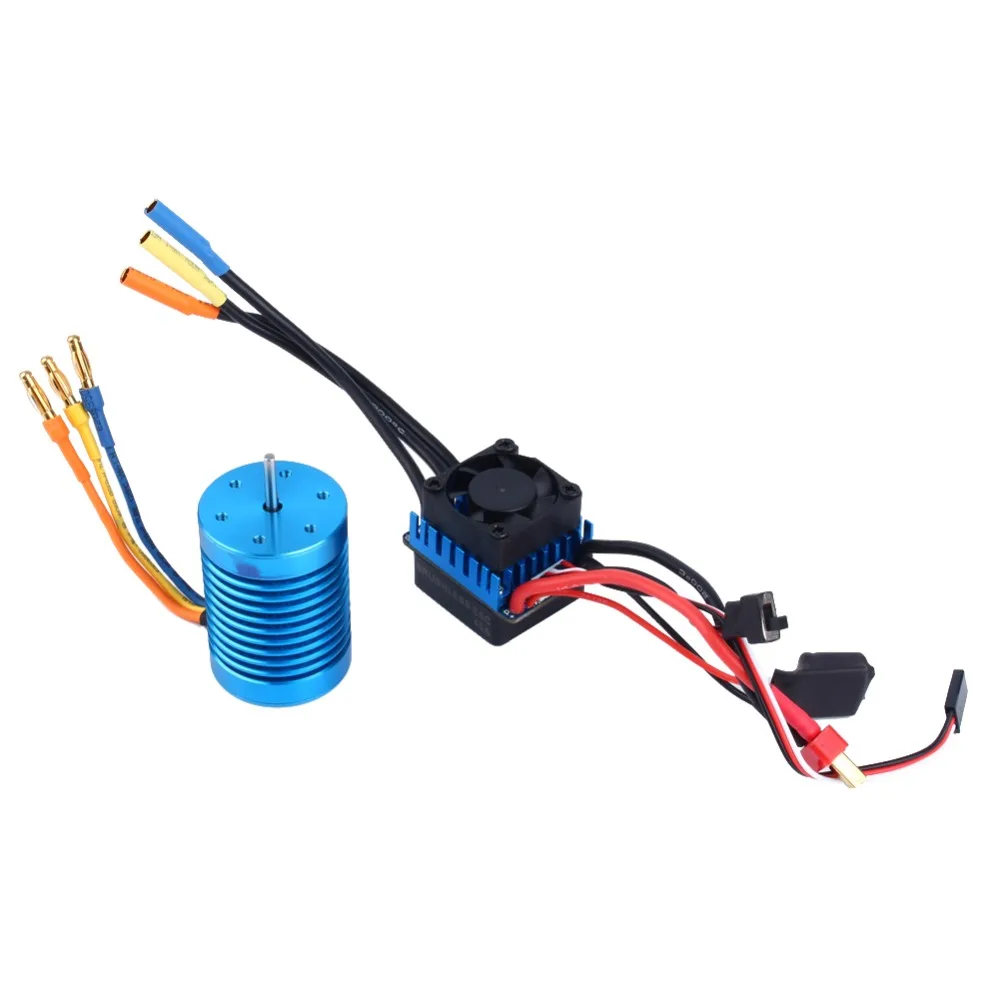

3650 4370KV 4P Sensorless Brushless Motor for 1/10 Racing Car Brushless ESC Accessory +45A Brushless Electric Speed Controller
The set includes a 3650 4370KV 4P Brushless Motor and a 45A brushless Electric Speed Controller(ESC), which is perfect for the 1/10 RC Off-Road Car. This 3650 4370KV 4P Brushless Motor is built from the best materials available, and is designed to provide both quality and performance at an affordable price. And it’s with high quality aluminum alloy parts that are produced on the latest CNC milling machines. Additionally, the 45A brushless ESC features enhanced throttle response,excellent acceleration, strong breaks and throttle linearity.
4 poles Hi-torque motor design.
CNC machined 6061 T6 billet alumium heatsink can.
High purity copper windings maximizes efficiency.
High RPM ABEC5 oversized bearings.
Universal fit all 1/10 brushless cars-multi-mounting system for M3 screws.
Precision balanced rotor, smoothness for best reliability and maximum RPM.
Stator – Super Thin (0.35mm) laminations.
Precision engineered for maximum energy conversion.
Max Current: 66A
Max Watts: 820W
Can Size: 3650
Can Diameter: 36mm
Can Length: 50mm
Shaft Diameter: 3.175mm
Shaft Length: 15mm
Bullet Connector: 4mm
Max voltage: 7.4V(2S)-11.1V(3S)
Note: there’s some little error from human measuring.
Electric Speed Controller
Compatible with sensorless brushless motors.
High anti-interference capability.
Using advanced software interface to set up or update the software.
Super smooth and accurate throttle linearity.
Fast response to throttle input.
Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
Cont. Current: 45A
Burst Current: 260A/10sec
Battery: 2-3 Cell Lipo / 4-9 Cell NiMh
SBEC Output: 5.8V/3A
Power Supply Plugs: T Male
Motor Plugs: Female 4mm Bullet Connector
Size: 45*35*35mm(with out fan)
Weight: 76g /2.7oz
1 * 3650 4370KV 4P Sensorless Brushless Motor
1 * 45A Brushless Electric Speed Controller USD 1.05/pieceUSD 5.75/pieceUSD 5.56/lotUSD 12.09/setUSD 3.96/lotUSD 6.81/pieceUSD 7.61/pieceUSD 1.56/pack
