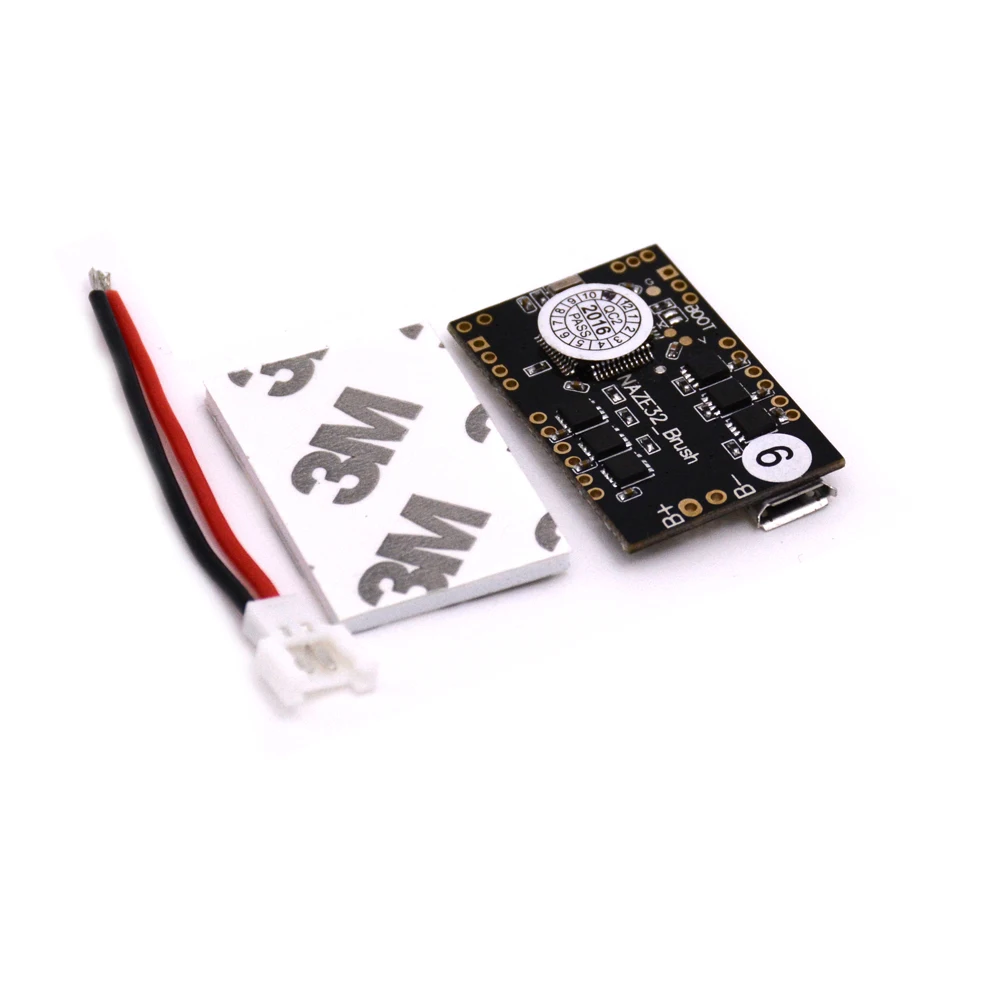

32bit ACRO NAZE32_BRUSH Brushed Base Flight Control Plate
In Naze32 For DIY Micro FPV Frame
Item Name: ACRO NAZE32_BRUSH Flight Control
Dimension: 22mm * 32.5mm
1. NAZE32_BRUSH is in the revision based on NAZE32 flight control, it is a 32bit controller brush base in NAZE32 firmware.
2. The flight control support 1 S (4.2 V) and 2 S (8.4 V) power supply, 2 S power can bring flying experience more violence.
3. Design of circuit structure Independent, comes with pressure reduction technology, whether it is 1 S or 2 S power input, UART1 / 2 5 V output, UART3 output 3.3 V
4. With a large current NMOS transistors, operating current up to 10A or more.
5. Support for PPM, SBUS, DSM receiver input signal.
6. With battery voltage detection interface and audible alarm.
7. In support of the world almost all hollow canopy engine, including 1020 coreless motor. Support 6 engine.
Before applying power, pay attention to battery voltage selection.
The default send is 1 S (4.2 V); When using 2 S, you first need to disconnect the short contacts 1 S, and then place the two pads on the 2 S.
Prohibit short together the three pads at the same time.
1. Receiver welded directly to the DSM DSM interface of 3.3 V, GND, RX3, in the software configuration CF UART3 for
RX series, and change the Receiver mode to RX_SERIAL, and then configure the receiver tag with Spektrum1024 or 2048.
2. SBUS receiver welded on the UART2 interface. SBUS signal in CF UART2 for Software Configuration Series
RX, and change the Receiver mode to RX_SERIAL, and then configure the receiver tag with SBUS.
3. Welded in PPM interface PPM receiver. No need to open RX Series, only in CF software to change the
Receiver mode for RX_PPM.
1 x Flight Control Plate ACRO NAZE32_BRUSH
