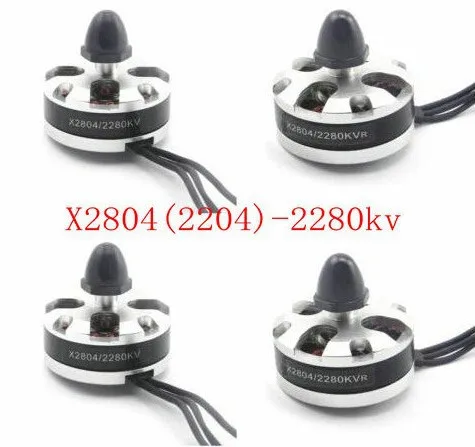

X2804 2280KV Brushless Motor CW CCW for QAV250 mm Multirotor Quadcopter

Specifications:

motor:

KV: 2280
No-load current: 0.65A
Maximum power: 140W
Maximum efficiency: 70%
Voltage (2-3S)
Stator: 22 * 4MM
Dimensions: 28 * 13MM (28 * 23 contains a threaded shaft)
Threaded shaft diameter: M5
Weight: 23g

Test data:
5 inch (clover paddle) 7.4V 7.1A 290g
11.1V 13A 500g

6 inch (clover paddle) 7.4v 7A 380g
11.1V 17.5A 610g

This hardware, with the SimonK firmware, gives you the perfect solution for multirotor use:

Highest efficiency 100% N-FET design.

Highest accuracy with Crystal Oscillator (Temperature won’t affect the PWM operating range like other cheap ESC’s).

No low voltage cutoff, because any cutoff in a multirotor = crash.

No over temp cutoff, because any cutoff in a multirotor = crash.

Super high refresh rate, no buffering of the input signal, resulting in more than 490Hz response rate.

16KHz motor frequency, giving fastest response of the motor, and quietest operation as well (no 8KHz squeal).

Super simple, foolproof operation! Nothing to program other than the throttle range.

Don’t buy a 30A multirotor ESC that doesn’t meet all these criteria! There are a lot of low quality 30A ESC out there!

ESC Specs:

simonk15A (2-3S):

Weight:15g

Size:50*22*8
Input voltage:2-3S Lixx
Drive current:15A (Max:25A/10S)

BEC Input:5V2A

Compatible signal frequency: 30Hz – 499Hz
