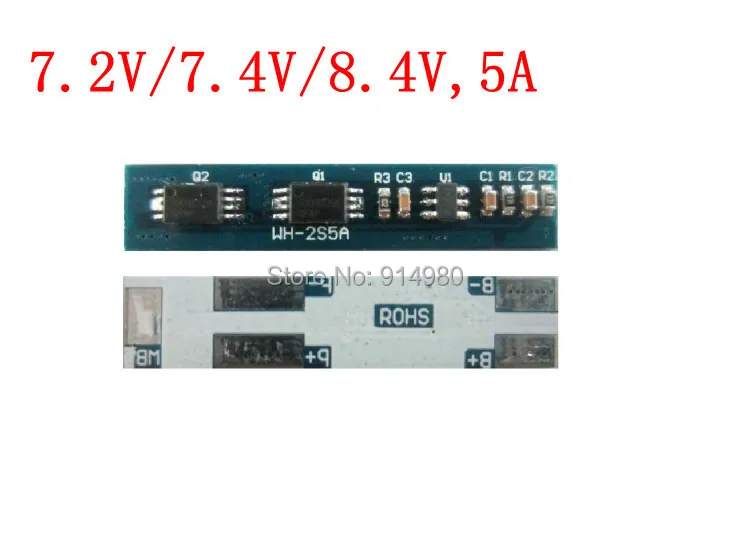

2 string 7.2V 7.4V 8.4V lithium battery protection board protection circuit current 5A
& Features: (A) high-accuracy voltage detection circuit; (2) Connect the charger terminals using high-pressure devices; (3) Built-in three-stage overcurrent detection circuit (overcurrent 1, overcurrent 2 and load short-circuit); (4) can be controlled by the MOS transistor of the battery charge and discharge; (5) Wide operating temperature range -40 ~ +50 ; (6) Low current consumption & Use: · Two strings of lithium nickel-cobalt-manganese, cobalt oxide, lithium manganese lithium-ion rechargeable battery; · 2 string lithium polymer rechargeable battery; & Technical parameters: No. Test items Standard A voltage Charging voltage DC: 9V CC / CV Single equilibrium voltage 2 Current Balance current for single Single drain the battery (consumable) ≤ 6uA Maximum continuous discharge current 5A 3 Overcharge Protection Overcharge detection voltage 4.29V Accuracy ≤ ± 0.025V Overcharge detection delay time 1s Overcharge recovery voltage 4.05V Accuracy ≤ ± 0.025V 4 Over-discharge protection Over discharge detection voltage accuracy ≤ ± 0.1V 3V Over discharge detection delay time of 128ms Over-discharge recovery voltage 3.2V Accuracy ≤ ± 0.1V 5 Over Current Protection Over current detection voltage accuracy ≤ ± 30mv 200mv Overcurrent detection current 10A Accuracy ≤ ± 0.3A Overcurrent detection delay time 12ms Restore state auto-recovery 6 external short circuit protection detection state Detection delay time ≤ 50us Restore state auto-recovery 7 internal resistance protection circuit (MOSPET) ≤ 20mΩ 8 Temperature Operating temperature range -40 ~ +50 Storage temperature range -40 ~ +125 9 Dimensions (L * W * H) 35 * 7 * 1.75 MM & Weld Description: · B + connected battery cathode; · B-take battery; · MB 1 and the cell 2 connected to the battery prior to the connection point; · P + connection charge / discharge upright pole (charging terminal / discharge side shared); · P-connection charge / discharge end of the negative (charging terminal / discharge side shared). & Wiring diagram: Shipping list: Lithium battery protection board X10
