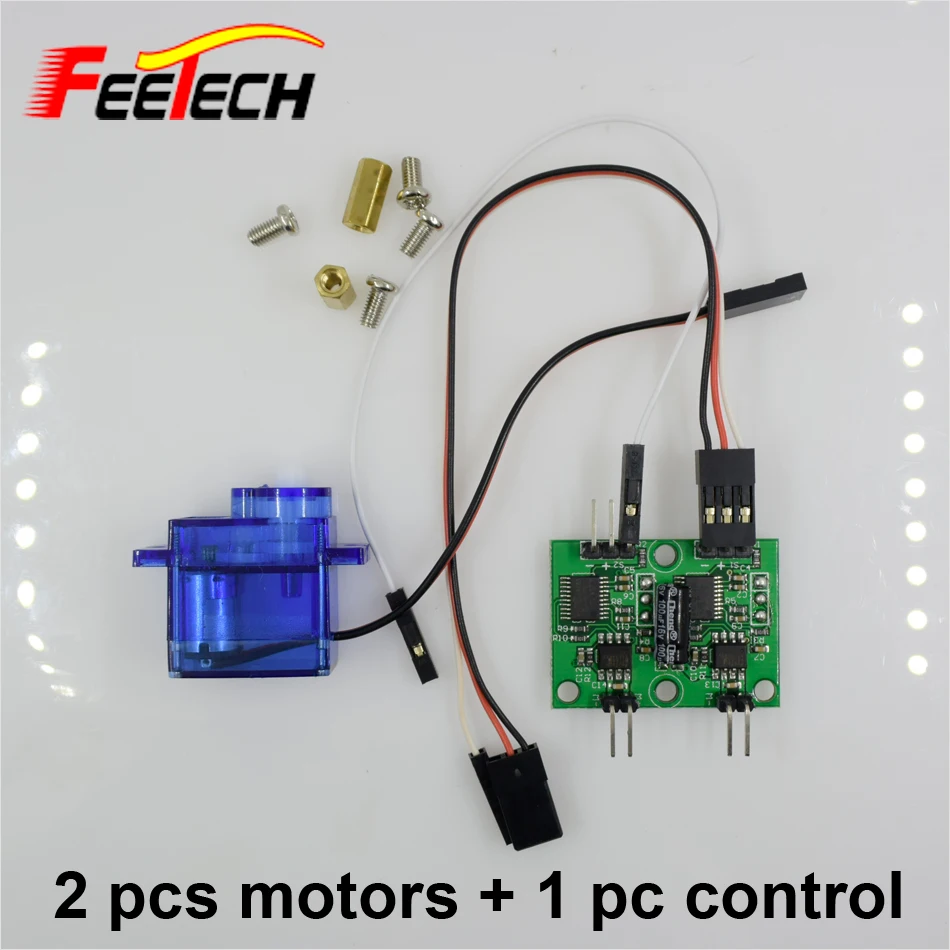

2 pcs Feetech FM90 Gear Motor + 1 pc control board Micro RC Motor Gear Box For RC Car Boat Robot Drones

100 % of buyers enjoyed this product!
Availability: in stock
Price:  $ 12.17 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Welcome to our shop!

Quality Assurance,Factory Direct Sales! Please give us Top Marks if satisfied with our products. Any feedback please let us know.

Related Products

2 pcs Feetech FM90 Gear Motor + 1 pc control board Micro RC Motor Gear Box For RC Car Boat Robot Drones

This tiny DC Motor in Micro Servo Body is an interesting motor – it’s the same size and shape as our micro servo (like the FS90, FS90R, SG92R) but it isn’t a servo. It’s more like a DC motor + plastic gear-train in a box. It’s not a super powerful motor, it would do well as a little robot wheel. It’s also a lot less expensive than a micro servo (continuous or non-continuous) because there is no control board inside. Controlling speed is done by PWM’ing the power leads, controlling direction is done by swapping the power polarity – just like any brushed DC motor.

Runs from 4-6VDC, we’ve powered it with a Lipoly and 3 alkaline, or 4 NiMH batteries with success. You cannot control this directly from a microcontroller pin! You must have a H-bridge such as a L293D or motor shield.

Motor comes with 2x screws and 2x nuts for mounting to a chassis. No flanges or horns included – it’s intended to mate with wheels, like our FS90R-W. There’s a screw to attach once they’re plugged together. Build a robot vehicle of your own with these little motors driving it!

Packet Content List

Motor (pe bag) x2

Control board with screws (pe bag) x1

Content View

Product Specs

  • Dimensions: 32.3mm x 12.3mm x 29.9mm / 1.3″ x 0.49″ x 1.2″

  • Spline Count: 21

  • Weight: 8.4g

  • No load speed: 110RPM (4.8v) / 130RPM (6v)

  • Running Current (at no load): 100mA (4.8v) / 120mA (6v)

  • Peak Stall Torque (4.8v): 1.3 kg/cm / 18.09 oz/in

  • Peak Stall Torque (6v): 1.5 kg/cm / 20.86 oz/in

  • Stall Current: 550mA (4.8v) / 650mA (6v)

FITEC
MODEL

SIZE
(mm)

WEIGHT

SPEED

Stall Torque

SKU

(LxWxH)

g

oz

sec/60°

kg.cm

oz.in

FM90

23.2×12.5×22

9

0.32

0.12(4.8V)
0.10(6V)

1.3(4.8V)
1.5(6V)

18.09(4.8V)
20.86(6V)

Direction :CCW

Operating Angle :120degree

Required Pulse :900us-2100us

Bearing Type :None

Gear Type :Plastic

Motor Type :Metal

Connector Wire Length :15 cm
