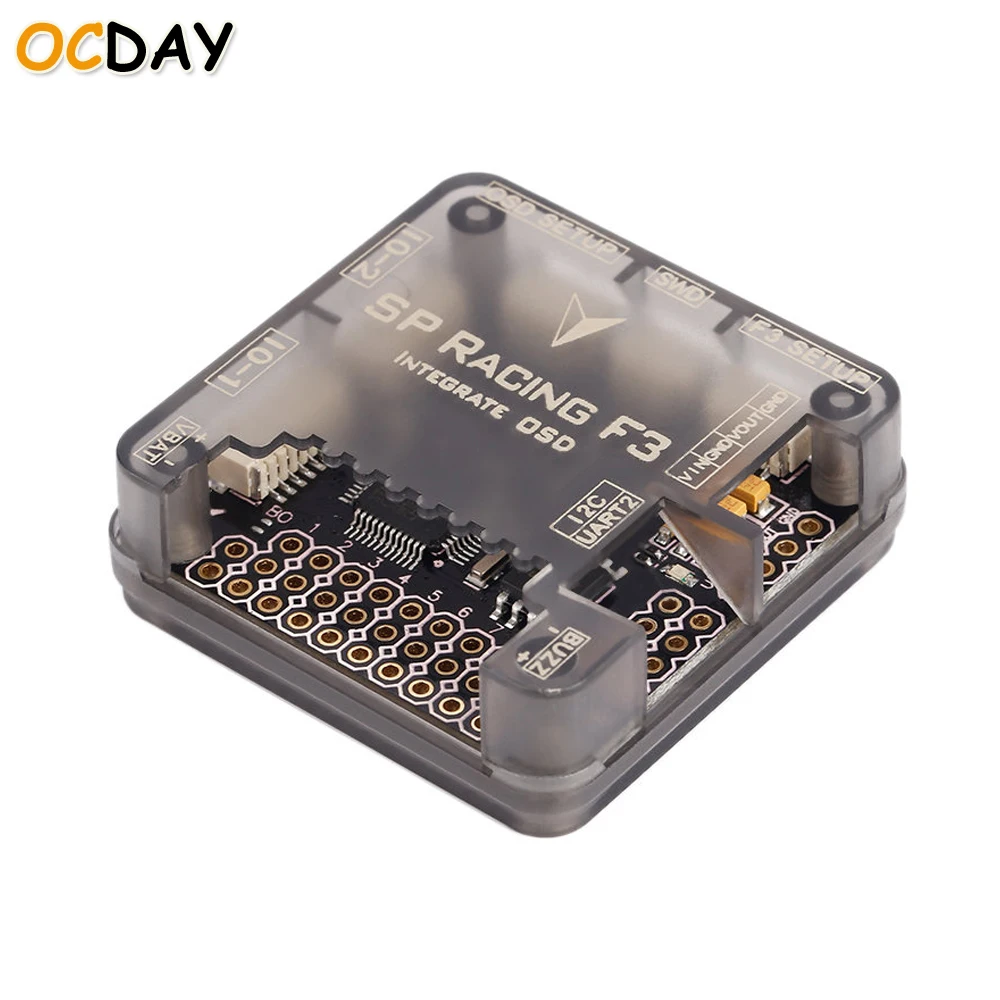

1pcs OCDAY SP Racing F3 Acro DELUXE Flight Controller Integrated OSD for Racing Quadcopter
Click to see details
1pcs OCDAY SP Racing F3 Acro DELUXE Flight Controller Integrated OSD for Racing Quadcopter

1pcs OCDAY SP Racing F3 Acro/DELUXE Flight Controller Integrated OSD for Racing Quadcopter

100 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  $ 21.06 / piece
Sale Price:  $ 19.38 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Radiolink AT9S 2.4G 9CH System Transmitter with R9DS Receiver

SP Racing F3 was designed to give awesome flight performance based on tried and tested sensors while also providing unparalleled and I/O capabilities in a small and extremely lightweight form-factor using a next-generation CPU.
Integrated OSD, Buzzer,I2C Port,Sonar,Battery Monitoring,Programmable LEDs,Broad RC receiver Support Tiny and lightweight etc .
OSD ACRO:
1. Next-Generation CPU
The SP Racing F3 has an ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time.
Loop times up to 2x as fast as previous-generation STM32F1 based boards.
2. No-Compromise IO
Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors – all at the same time!
3. Flight Logging
On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork.
4. OneShot ESC and Programmable LEDs
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Dedicated output for multi-colored LED strips – great for FPV racing, line-of-sight flying orientation and night flying.
5. Flight Performance
The SPRacingF3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it’s on rails.
6. Configurable
The SPRacingF3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
7. Developer Friendly
Developer friendly debugging port (SWD) and boot mode selection, unbrickable bootloader.
8. Broad RC receiver Support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
9. Suitable for 250 280 180 210 FPV Racing Quadcopter

Specifications:
Hardware
CPU: STM32F303, 72Mhz inc FPU
Acro: High-Capacity Flash
Accelerometer/gyro: MPU6050
Board Size: 39 x 39 x 12.8mm/1.5 x 1.5 x 0.5 inch
Package size: 140 x 90mm/5.5 x 3.5 inch
Net weight: 26g
Package weight: 31g

OSD DELUXE:

Upgrade NAZE32 SP Racing F3 Flight Control With Integrated OSD for Multicopter
The SPR F3 builds on tried and tested software, processor and sensor technology to make your aircraft fly like it’s on rails.
ST debug port on the back of the board have (SWD) and startup mode selection, not deadlock bootloader.
There MEGA328 ISP port on the back of the board, will not deadlock bootloader.
looptime up to about 2 times the previous generation based stm32F1 flight control.
No-Compromise I/O
Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED Strip + Battery Monitoring + Sonar + 8 motors – all at the same time. Configurable
The SP F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
Tiny and lightweight
Flight Logging
On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork.
New Generation CPU
STM32 F3 support next-generation processor Attitude efficient hardware floating-point operations, and faster ARM Cortex M4 core computing.
All using 2.54 interface.
PDB can be more perfect combination.
Full support for OneShot ESCs for easy PID tuning and a sharper response.
Broad RC receiver Support
Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters required (built-in).
Programmable LED
Dedicated output for programmable LEDs – great for orientation, racing and night flying.
Battery monitoring ports for voltage and current.
Sonar support for precision low-altitude hold.
I2C port always powered, perfect for external sensors or always-on OLED Screen.
Buzzer port for audible warnings and notification
F3 + OSD run the company to modify the optimization of cleanflight flight control software (FC).
We will continue to update the firmware for our customers to provide a better flying experience

Specifications:
Item Name: SP Racing F3 Flight Control With Integrated OSD
Deluxe version: MPU9250 (gyro – acceleration – are integrated electronic compass) sensors, optional needle straight or curved needle.
CPU: Stm32F3 256K CPU
Memory: 16M high-capacity flash memory
OSD: Comes with OSD function
Size: 37 x 37 x 12mm/1.5 x 1.5 x 0.5 inch
Package size: 156 x 88mm/6.1 x 3.5 inch
Weight: 26g
Package weight: 31g
