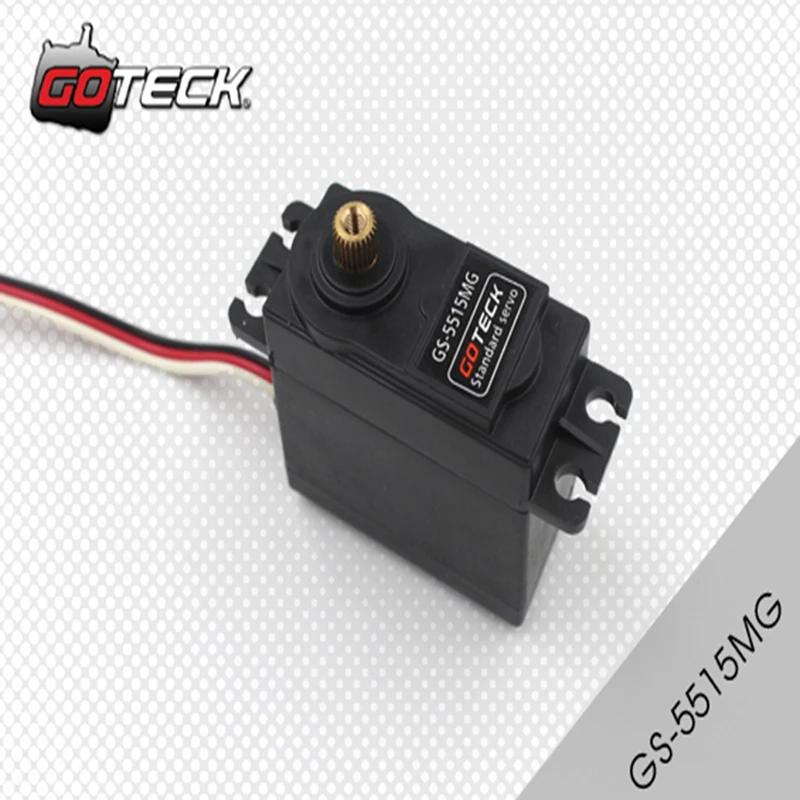

GS-5515MG High Torque Metal Gear Standard Analog Servo/ 55g/ 13.2kg-cm/ 0.20sec

High torque standard analog servo, metal brush motor, metal gear, dual ball bearing, JR connector.

Item: GS-5515MG
Size(mm): 40.8*20.1*38
Torque: 15 kg/ 0.28sec @ 6V
Weight: 55g

Speed: 0.31-0.28 sec/ 60°

GS-5515MG

Control System

Positive PWM control 1500 usec Neutral

Operation Voltage Range

4.8V ~ 6.0V

Operation Temperature Range

-20C°~ +60C°

Test Voltage:

At 4.8V

At 6.0V

Standing Torque

13kg.cm

15kg.cm

Speed

0.31 sec / 60 deg at no load

0.28 sec / 60 deg at no load

Idle Current

250mA at stopped

300mA at stopped

Running Current

2000mA at no load

2200mA at no load

Dead band width

8 usec

8 usec

Circle

10000 times

Operation Travel

60°±10°

Direction

Re-clock wise/ Pulse Travel 1500 to 1900 usec

Drive type

FET drive

Motor Type

Carbon Brush

Potentiometer Type

Indirect drive

Amplifier Type

Analog Control

Dimensions

40.8*20.1*38.0 mm

Weight:

55g without splined horn

Ball Bearing

Double ball bearing

Gear Material

Metal gear

Case Material

Nylon plus fiber

Connector Wire Length

300mm

Connector Wire Gauge

22AWG heavy duty(Futaba Univeral)

Wire Info (Black)

Negative

Wire Info (Red)

Positive

Wire Info (White)

Signal
