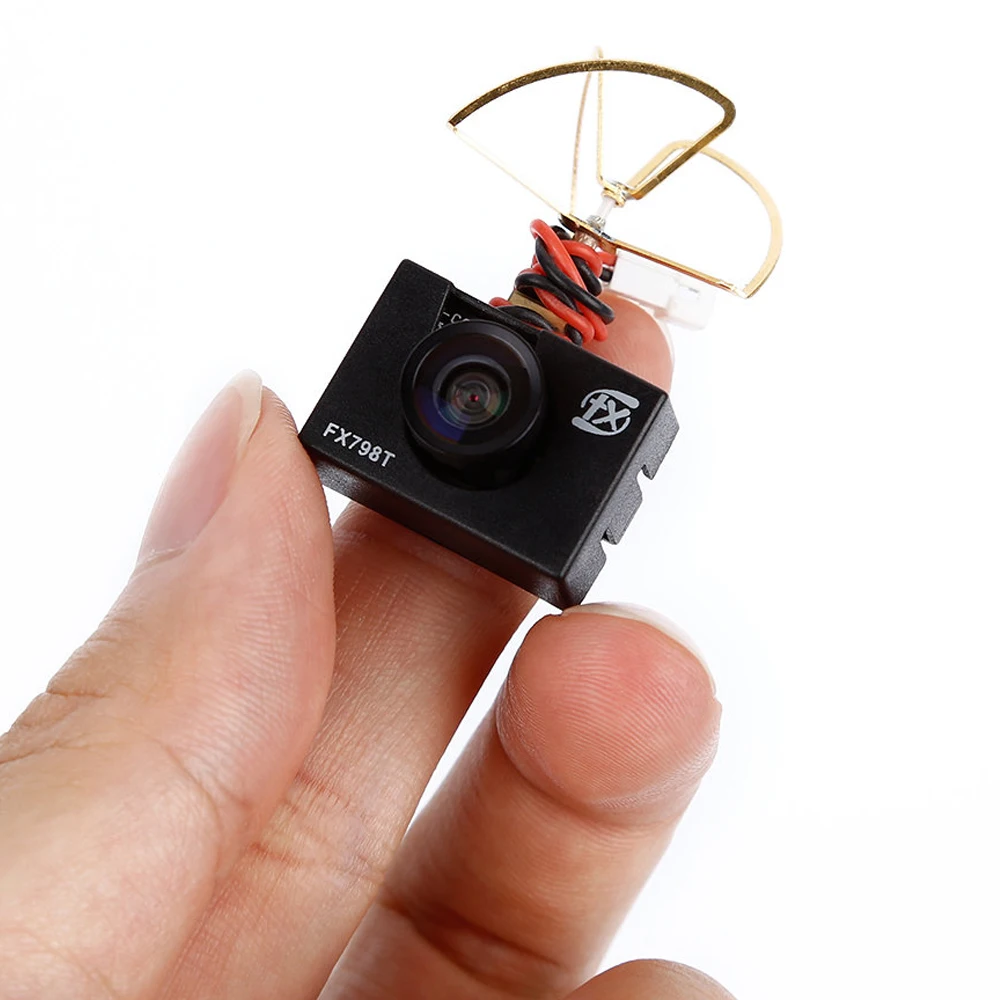

1pcs FX798T 5.8G 25mW 40CH AV Transmitter With 600TVL Camera

FX797T 5.8G 25mW 40 Channel AV Transmitter With 600 TVL Camera Soft Antenna

1. Micro Size and Light weight
2. Easy installation for racing drone
3. Five bands 40 channels with Raceband
4. Button Control Instead Of Switch
5. with Soft Antenna

Frequency Table
Frequency Band A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency Band B 5733 5752 5711 5790 5809 5828 5847 5866
Frequency Band E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency Band F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency Band R 5658 5695 5732 5769 5806 5843 5880 5917

Specifications:
Brand: FX
Item Name: FX797T 5.8G 25mW Transmitter With 600TVL Camera
Output power: 25mW
Input power: 2.5-5V
Current Consumption: 230mA
Camera resolution: 600TVL
Min illumination: 1 lux
Field of view: 120° viewing angle
Antenna: 3 lobe right hand circular polarized
Video output: NTSC
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5658-5917MHz
Push button operation, long press for band, short press for channel
2 row LED indicators, 5 LED for band, 8 LED for channel
Size: 20 x 17 x 38mm/0.8 x 0.7 x 1.5 inch
Package size: 82 x 54 x 40mm/3.2 x 2.1 x 1.6 inch
Weight: 6.5g
Package weight: 42g

Package Included:
1 x FX797T Transmitter
1 x manual
